Vent-Axia Multihome BPD basic Package 300 m³/h + humidity sensor + RFT control battery + 4 valves - perilex plug

Brand: Vent-Axia

-43%

Complete your order

Vent-Axia Multihome temperature, humidity and CO2 sensor wireless/wired - CO2M

170.50

Aludec 125 mm unisulated flexible ducting - 5 m

13.02

Sonodec acoustically thermally insulated 125 mm ventilation hose (1 metre)

15.11

Stainless steel hose clamp 60mm diameter 165mm - PCSS60-165

1.44

RRP 417.17

237.56 -43%

You'll save 179.61

- 49 units expected on 16-10-2026

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

This product contains:

Good points

Completely recycled plastic
Humidity sensor
Airflow 300m³/h

Vent-Axia Multihome BPD basic 300m³/h + humidity sensor and perilex plug phase L1 + 4 valves

Package contents:

1x Vent-Axia Multihome BPD basic
4x 125mm plastic valves with clamping springs

The Vent Axia Multihome is a quiet ventilation box with a very high air output and energy-efficient motor that is ideally suited for both new construction projects and renovation projects. This ventilation unit can easily replace an old(er) air handling system and is directly interchangeable. Thanks to the aerodynamic snail housing, the ventilation unit manages to deliver a maximum air flow rate of 300m3/h at 150Pa (depending on the model).

All versions of the mechanical fan are equipped with an internal humidity sensor and can be expanded with CO2, temperature and humidity control, ensuring the desired indoor climate at all times. A presence sensor can also be connected so that the ventilation box is automatically switched on when someone is present in the living room, bedroom or office.

Sustainable ventilation

Vent-Axia's Multihome fans are made entirely of recycled plastic so you ventilate not only energy-efficiently but also sustainably!

Easy assembly

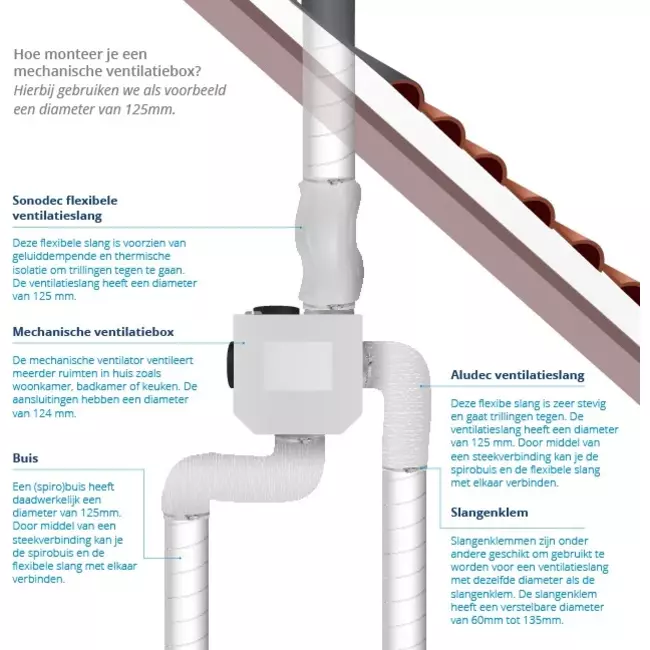

The mechanical ventilation unit is easy to install both vertically and horizontally on the wall or ceiling. The Multihome has 4 domestic connections, 2 of which are located at the bottom of the unit. These connections have a diameter of 125 mm, for direct connection to ventilation ducts or hoses of equal diameter.

Brand	Vent-Axia
Category	All mechanical ventilation systems
GTIN	8719544222947
Manufacturer's item number	19120551
Article number	19120551

Specifications

Bundle type	Ventilation box + RFT-N Auto control + 4 valves
Category code	9000
Housing material	Plastic
Max. air volume at 50 Pa	370 m³/h
Max. air volume at 100 Pa	340 m³/h
Max. air volume at 150 Pa	300 m³/h
Max. air volume at 200 Pa	250 m³/h
Max. air volume at 250 Pa	210 m³/h
Max. air volume at 300 Pa	160 m³/h
Power consumption at max. air volume at 100 Pa	0.042 W
Frequency supply voltage (min)	50 Hz
Frequency supply voltage (max)	50 Hz
Supply voltage (min)	220 V
Supply voltage (max)	240 V
Max. nominal current	0.183 A
Sound power level	46.4 dB(A)
Type of motor	Electronically commutated (EC)
Electrical connection	Perilex connecting cable
Extra electrical connection included separately	Perilex connecting cable
Energy efficiency class	B
Control signal	0 - 10 V
Type of speed control	Continuously variable
With wireless remote control	No
Suitable for wireless remote control	Yes
With wired control unit	No
Suitable for wired control unit	Yes
Suitable for requirement-controlled ventilation	Yes
With internal humidity (RH) sensor	Yes
With external humidity (RH) sensor	No
Suitable for (extra) humidity (RH) sensor	Yes
With internal carbon dioxide (CO2) sensor	No
With external carbon dioxide (CO2) sensor	No
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
Detects volatile organic compounds	No
With pressure sensor	No
Suitable for (extra) pressure sensor	No
With zone controller	No
Suitable for zone controller	Yes
Operation by app	No
With movement sensor	No
Suitable for movement sensor	Yes
Sensor controlled air flow	Yes
Number of suction connections	4
Connection	Duct end
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
Suitable for floor mounting	Yes
Suitable for suspended mounting	Yes
Horizontal mounting	Yes
Vertical mounting	Yes
Rear connection	No
Depth	248 mm
Height	393 mm
Width	391 mm
Plug type	Perilex plug
