Value Smart Digital Manifold

Value Smart Digital Manifold

The Value Smart digital manifold is a smart digital manifold gauge designed for measuring, checking and diagnosing refrigerant circuits in HVAC/R systems. Supporting 72 refrigerant types, four operating modes and wireless Bluetooth connectivity to the Hi VALUE app, this device combines professional measurement accuracy with modern workflow features. The manifold is available as the VRM-2S (standard) and as the VRM-2SV (including VMV1S micron gauge).

Benefits and Features

• 72 refrigerant types including F2L compatibility: covers virtually all common and new refrigerants; firmware updates available through the Hi VALUE app or the VALUE website.
• Class 0.4 accuracy with digital display: 0.01 bar resolution for precise and reliable pressure readings.
• Four operating modes: manifold, leak test, evacuation and vacuum cushioning, allowing you to perform all standard maintenance tasks with a single device.
• Bluetooth connection with Hi VALUE app: wirelessly pairs with optional temperature clamps (VMT-1S low side, VMT-2S high side) for simultaneous pressure and temperature display.
• Aluminium housing with 1/4-turn ball valves: durable, reliable and comfortable for everyday workshop use.
• Foldable hook: easily hangs the manifold on a unit or frame, freeing your hands during work.
• Shock-resistant rubber casing: effectively protects the device from drops or impacts on the job site.

Accurate Measurement, Connected Anywhere

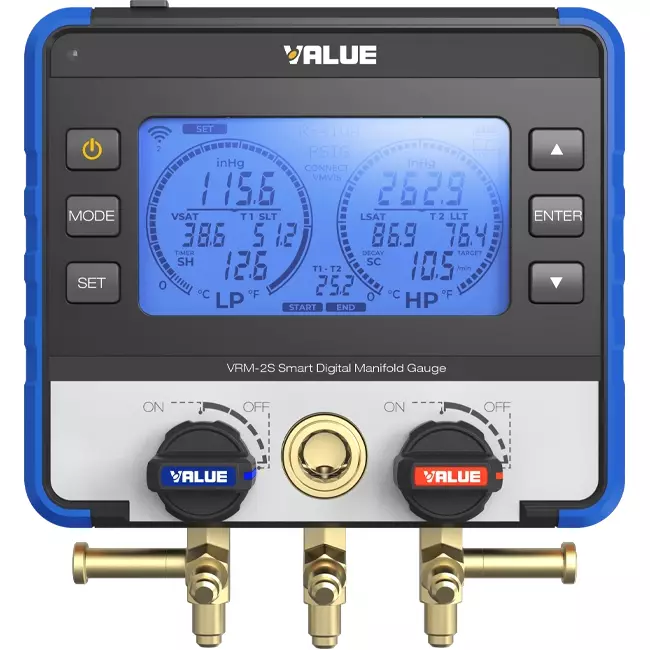

The VRM-2S simultaneously displays pressure, temperature and saturation temperature (suction/discharge) on a backlit digital screen. The pressure measurement range extends from -1 to 50 bar (-100 to 5000 kPa) with a 0.01 bar resolution. The rechargeable 3000 mAh lithium-ion battery ensures long operating time per charge. Weighing 1.3 kg with dimensions of 213x195x70.5 mm, the manifold is compact and easy to handle in practical use.

Installation, Maintenance and Applications

Connections are made via 7/16" UNF hose fittings, standard in refrigeration and air conditioning technology. Optional wireless temperature clamps (VMT-1S and VMT-2S) are purchased separately and connect via Bluetooth. The manifold is suitable for both commercial and residential HVAC/R applications, including systems with A2L refrigerants. Firmware updates are easily performed via the Hi VALUE app on iOS or Android.

The Value Smart digital manifold is a versatile and precise digital manifold that, thanks to Bluetooth connectivity and app integration, optimises the service process for the professional HVAC/R technician.
