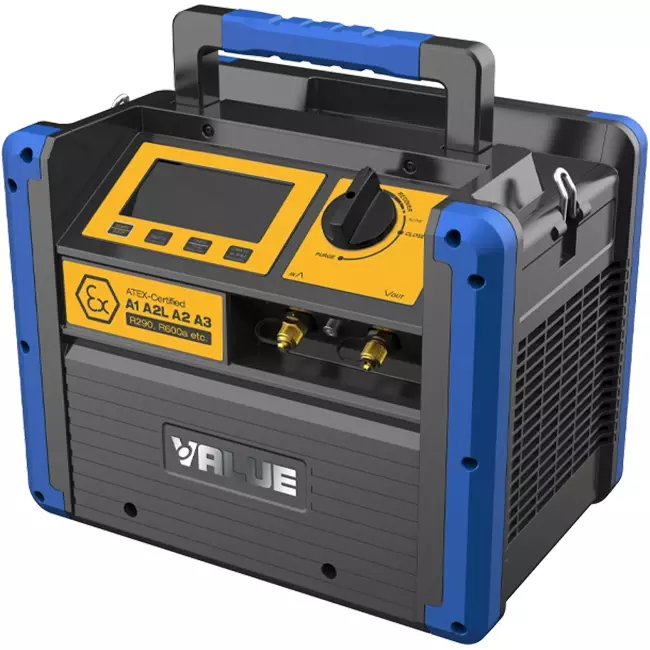

Value ATEX Recovery Unit R290/R600

Value ATEX Recovery Unit

The Value ATEX recovery unit is an ATEX-certified refrigerant recovery system designed for reclaiming both flammable and non-flammable refrigerants from HVAC/R systems. The unit is certified for use with A1, A2L, A2, and A3 refrigerants, including R290 and R600a (ATEX No. CSANe 22ATEX1032X), and complies with UL 121201, CSA C22.2 No. 213, and EN 60079-7 standards. Its brushless DC motor combined with an oil-free compressor makes the VRDDF suitable for intensive use in climate control and refrigeration services.

Benefits and Features

• ATEX-certified for A1 to A3 (CSANe 22ATEX1032X): safely operable with flammable refrigerants in hazardous explosive atmospheres, compliant with UL and EN standards.
• Brushless DC motor (1 HP, 3000 rpm): greater reliability, reduced wear and tear, and lower energy consumption compared to conventional motors.
• Oil-free, air-cooled piston compressor: compatible with virtually all common refrigerants without risk of oil contamination in the system.
• High recovery rate in push/pull mode: up to 9.5 kg/min (category V), significantly reducing operating time on larger installations.
• Purge function: prevents refrigerant mixing when changing refrigerants.
• IP54 housing: dust and splash water resistant for use in demanding outdoor environments.
• Large illuminated LCD display: clearly readable under all lighting conditions, including direct sunlight.

Fast and Complete Recovery

For category IV refrigerants (such as R22, R407C, R410A), the VRDDF achieves a vapour recovery rate of 0.54 kg/min, liquid recovery of 4.00 kg/min, and up to 8.50 kg/min in push/pull mode. The ultimate vacuum is 50.8 kPa, regardless of refrigerant type. Automatic high-pressure protection switches the unit off at 38.5 bar (558 psi), preventing damage to both compressor and system. The VRDDF weighs 11 kg with dimensions of 370x250x297 mm.

Installation, Maintenance and Applications

The VRDDF is designed for horizontal placement. The supplied 3.2 m power cable is sufficiently long to position the connection outside the temporary hazardous zone, in accordance with ATEX regulations for A2L/A3 refrigerants. When using A3 refrigerants, a digital scale is required to prevent cylinder overfilling. Each refrigerant type requires its own filter drier cartridge. The VRDDF is F2L-compatible and suitable for air conditioning units, heat pumps, and commercial refrigeration systems.

With ATEX certification, a brushless motor, and rapid recovery performance, the Value VRDDF is a professional recovery unit fully equipped to meet the demands of modern flammable refrigerants.
