Ubbink Air Excellent 2x 23C - 55SC bend 90° reducer - vertical

Ubbink Air Excellent 2x 23C - 55SC 90° Bend Adapter - Vertical

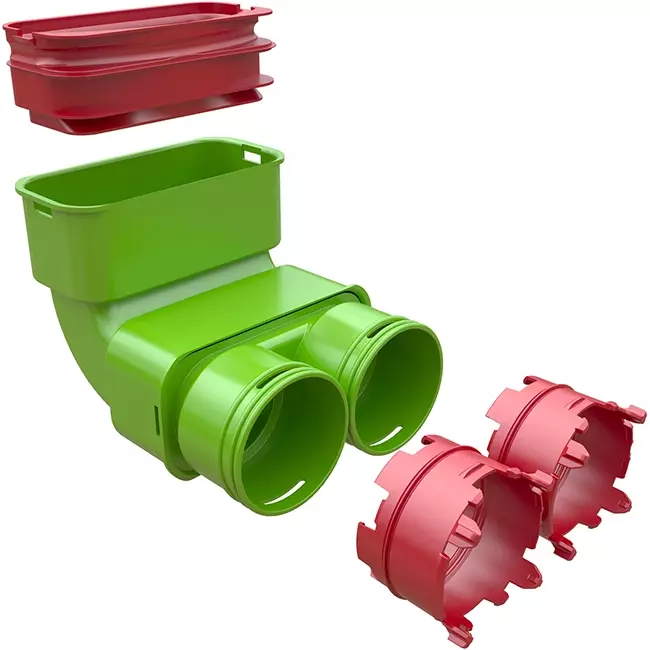

The Air Excellent 2x 23C - 55SC 90° bend adapter is used to connect two 23C ducts at a right angle to a 55SC duct. This bend is applied when the duct route needs to change direction within a floor, wall, or ceiling without compromising airtightness or system performance. Thanks to the included 23C Click-Seal rings and the 55SC sealing ring, you achieve quick and tool-free installation.

Advantages and Features

• Seamless 90° Direction Change: Creates a secure and stable bend in the duct route with a single integrated component.
• Airtight Connection: The Click-Seal rings provide reliable sealing and minimise air leakage.
• Antistatic and Antimicrobial: The design supports hygienic air distribution and reduces dust adhesion.

Practical Information

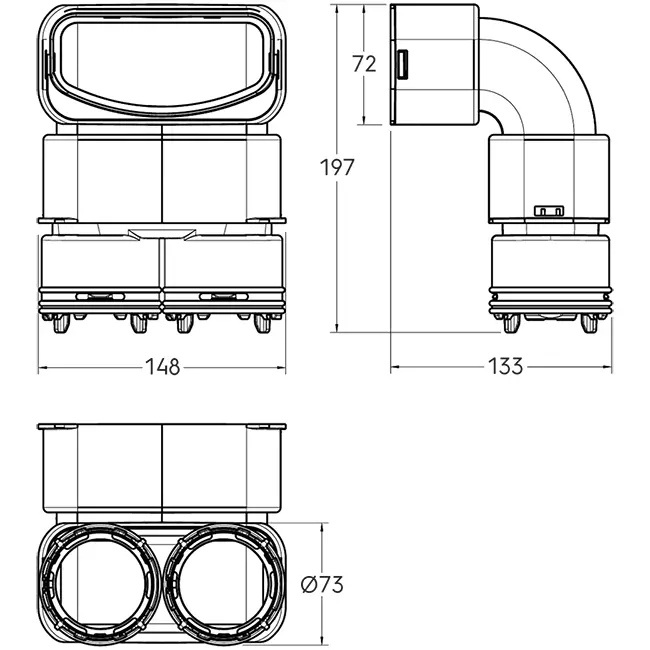

The bend is suitable for temperatures ranging from -20 °C to 60 °C and complies with fire class Euroclass E. With dimensions of 197 x 148 mm and a height of 133 mm, you can easily integrate the element into compact installation spaces. Weighing approximately 0.136 kg, it ensures stable and comfortable installation.

Installation and Maintenance

You install the bend directly between two 23C ducts and one 55SC duct and then click the connection into place. Since no sealant or tape is needed, you can work faster and more consistently on site. The mechanical seal remains durable and low-maintenance throughout the lifespan of the ventilation system.

With this 90° bend, you achieve a compact, airtight, and technically sound change of direction within the Air Excellent duct system.
