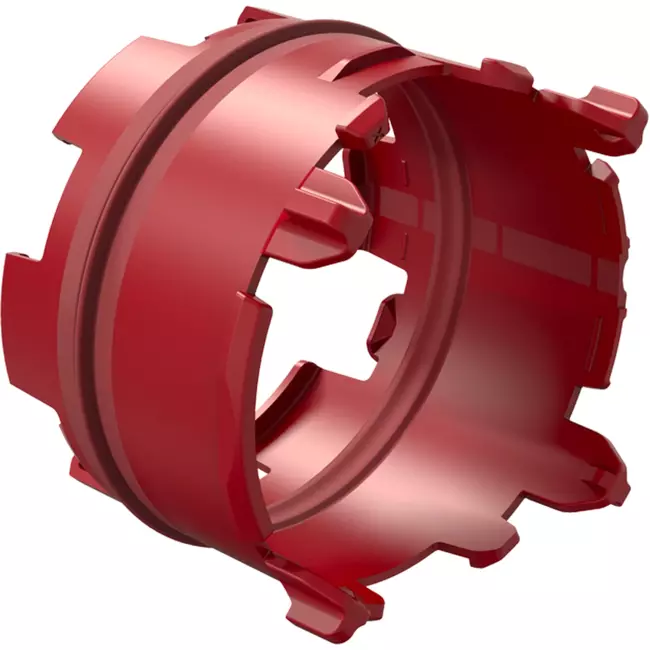

Ubbink Air Excellent 23C Click-Seal Ring - 10 pieces

Ubbink Air Excellent 23C Click-Seal Ring - 10 pieces

The Ubbink Air Excellent 23C Click-Seal Ring is used to create an airtight and mechanically secure connection between 23C ducts and accessories. This ring clicks into the fitting, providing an immediate and reliable seal without the need for tape, sealant, or a separate gasket. With this pack of 10 pieces, you can work efficiently on larger installations or serial assembly.

Advantages and Features

• Airtight Mechanical Connection: Prevents air leakage and maintains the calculated system performance.
• No Tape or Sealant Required: Instant sealing thanks to the integrated Click-Seal principle.
• Low Pressure Loss: Supports energy-efficient operation of the fan and reduces noise generation.
• Antistatic and Antimicrobial: Contributes to a hygienic ventilation system with less dust adhesion.
• TÜV SÜD Certified: Tested for quality and safety within the Air Excellent system.

Performance and Practical Use

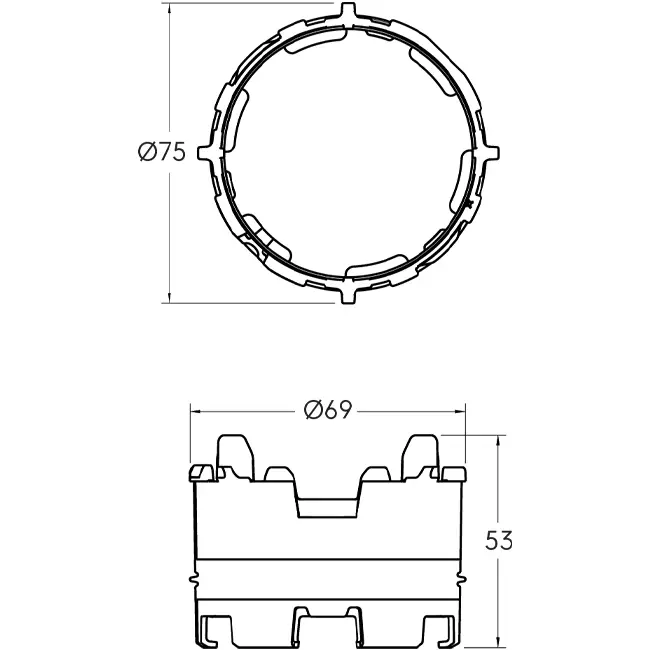

The Click-Seal Ring ensures a stable and secure fit between 23C ducts and fittings. Due to the controlled seal, pressure loss is minimized, reducing the power demand on the fan, which results in noticeable energy savings and lower noise levels. The ring is temperature resistant from -20 °C to +60 °C and complies with fire class Euroclass E. With compact dimensions of 75 x 75 x 53 mm and a weight of only 0.013 kg, it remains easy to handle and straightforward during installation.

Installation and Applications

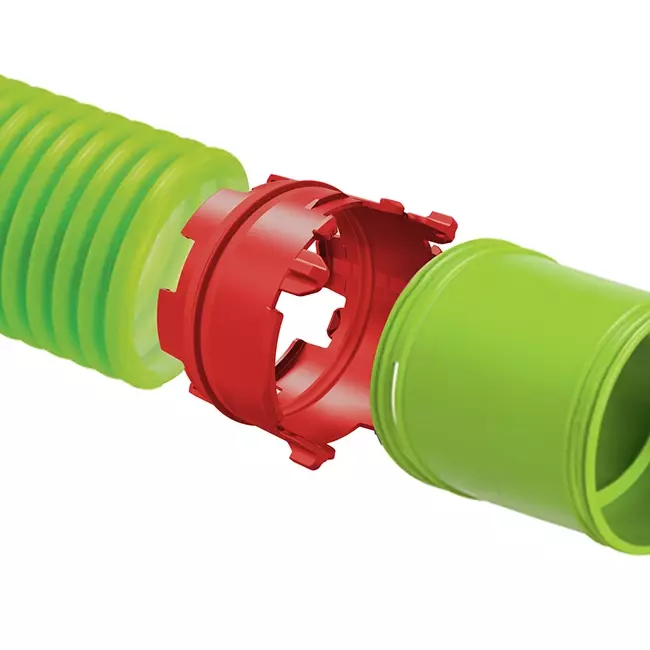

The Click-Seal Ring is simply inserted into the connection of the 23C duct or accessory, mechanically locking the connection. This speeds up installation and reduces the chance of assembly errors. The red colour variant facilitates visual inspection during installation. Thanks to the durable plastic construction, the seal remains reliable throughout the ventilation system’s lifetime.

With the Air Excellent 23C Click-Seal Ring, you achieve a quick, airtight, and energy-efficient duct connection, with minimal installation time and maximum system reliability.
