Good points
- Brand: Ruck
- EC motor
- Up to 4180 m3/h
- Speed controllable
Insulated Duct Fan 450mm - ISOR 450 EC K 01
The Ruck ISOR duct fan is a powerful and quiet fan with an insulated housing. Thanks to the integrated swing-out motor unit, maintenance is quick and easy to perform. This fan is designed for professional ventilation applications where high performance and minimal noise production are required. The connections are equipped with double lip seals for optimal air tightness.
Powerful and Quiet
The ISOR 450 EC K 01 features a backward-curved centrifugal impeller and a continuously adjustable EC motor with an external rotor. The motor has internal electronic temperature protection to prevent damage from overheating. The housing is made of galvanized sheet steel and fully insulated for quiet operation. Thanks to its weather-resistant construction, this fan is also suitable for outdoor installation.
Experience the High Quality of Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in ventilation technology. The company is known for its innovative strength and high-quality products. With over 300 employees, Ruck develops fans that meet the strictest ERP requirements, focusing on quality, sustainability, and efficiency.
Features and Specifications
- Quiet centrifugal fan with backward-curved impeller
- Galvanized sheet steel housing with sound insulation
- Connections with double lip seals
- Swing-out fan unit for easy maintenance
- Continuously adjustable EC motor with external rotor
- Internal electronic temperature protection
- Suitable for outdoor installation
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | ISOR-EC Box Fans |
| GTIN | 4061199040303 |
| Manufacturer's item number | ISOR 450 EC K 01 |
| Article number | 65167608 |
Specifications
| Category code | 35 |

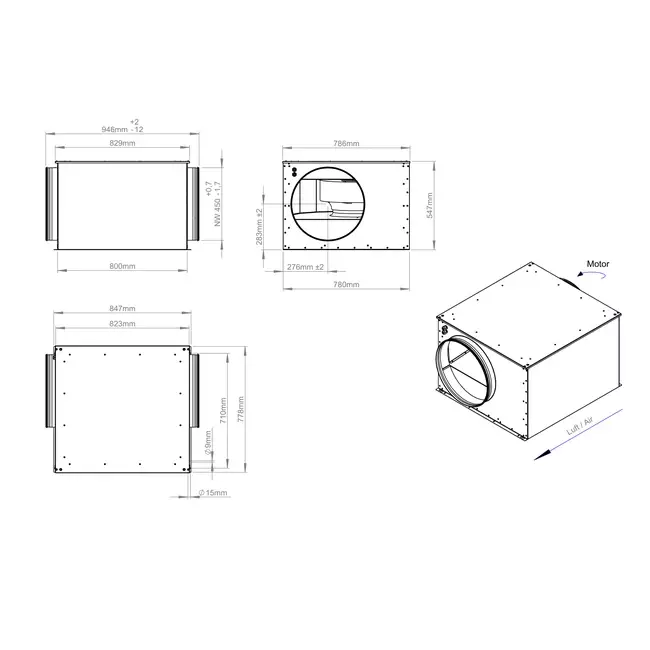

| Length | 800 mm |
| Width | 786 mm |
| Height | 547 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP66 |
| Connection voltage | 230 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 4180 m³/h |
| Power consumption | 507 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 50 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter, suction | 450 mm |
| Duct diameter, exhaust | 450 mm |
