Good points
- Brand: Ruck
- EC motor
- Up to 4600 m3/h
- Speed controllable
400 mm Insulated Energy-Efficient Duct Fan – EM DUO 400 EC K 01
The Ruck EM DUO 400 EC K 01 is a powerful and efficient duct fan with sound-insulated housing, designed for professional applications where reliability and noise reduction are crucial. The fan is equipped with a diagonal impeller with redundant operation, ensuring consistent performance even under increased load or partial failure. Thanks to the CFD-optimized airflow and the built-in ETAMASTER system, this fan achieves maximum efficiency with low energy consumption.
Powerful and Quiet
The EM DUO 400 EC K 01 features a high-quality EC motor that is positioned outside the airflow, providing extra protection against heat and contamination. The motor is infinitely adjustable via a 0-10V signal, offering optimal flexibility in airflow and consumption. The galvanized steel housing is fully insulated and designed for noise reduction, even at high speeds. Additionally, this model is suitable for outdoor installation and designed for continuous use at medium temperatures up to 120 °C.
Experience the High Quality of Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in energy-efficient ventilation technology. With a team of more than 300 employees, Ruck develops innovative solutions that meet the strictest ERP standards. The EM DUO 400 EC K 01 is an excellent example of this, combining reliable performance with quiet operation and a long lifespan.
Features and Specifications
- Efficient diagonal fan with redundant operation
- Optimized aerodynamics via CFD simulation
- Sound-insulated housing made of galvanized sheet steel
- Built-in ETAMASTER for maximum efficiency
- Infinitely adjustable EC motor outside the airflow
- Suitable for outdoor installation and temperatures up to 120°C
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck EM DUO dubbele buisventilatoren geïsoleerd |
| GTIN | 4061199044547 |
| Manufacturer's item number | EM DUO 400 EC K 01 |
| Article number | 65172646 |
Specifications
| Category code | 35 |

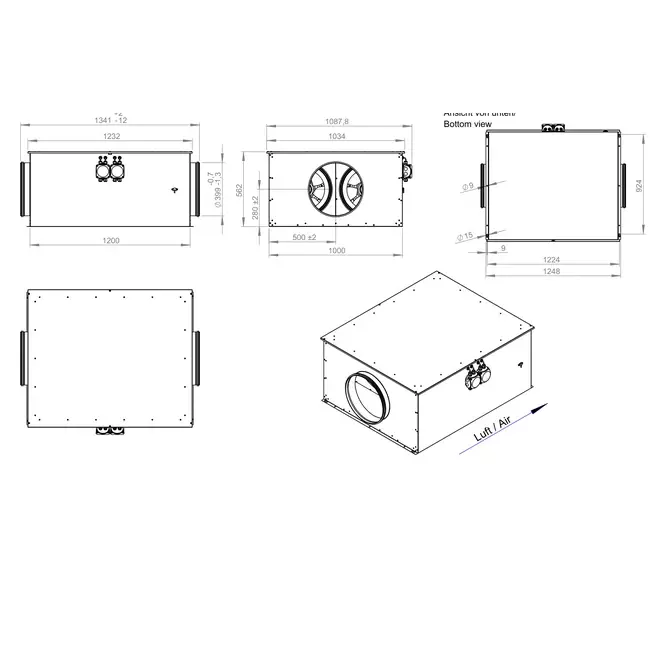

| Length | 1341 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 230 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 4600 m³/h |
| Suitable for frequency control | No |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter | 400 mm |
