Good points
- Brand: Ruck
- EC motor
- Up to 2710 m3/h
- Speed controllable
355 mm Duct Fan Insulated Energy Efficient – EM DUO 355 EC K 01
The Ruck EM DUO 355 EC K 01 is a high-quality duct fan with sound-insulated housing, specifically developed for demanding ventilation applications where reliability and energy efficiency are paramount. The fan is equipped with a dual diagonal impeller and offers redundant operation, meaning that air displacement continues reliably – even under increased system pressure or partial load. Thanks to the CFD-optimized airflow and the built-in ETAMASTER system, this model delivers top performance in terms of efficiency and noise reduction.
Powerful and Quiet
The EM DUO 355 EC K 01 features a high-efficiency EC motor that is positioned outside the airflow. This protects the motor from heat and contamination, contributing to a longer lifespan. The motor is infinitely adjustable via a 0-10V signal, ensuring optimal control over the ventilation capacity. The galvanized steel housing is fully insulated for sound dampening and is suitable for outdoor installation. The fan is designed for continuous use at medium temperatures up to 120 °C.
Experience the High Quality of Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of professional ventilation solutions. With over 25 years of experience and a team of more than 300 employees, Ruck develops innovative products that meet the strictest ERP guidelines. The EM DUO 355 EC K 01 is the result of this expertise and guarantees reliable performance, quiet operation, and energy-efficient use.
Features and Specifications
- Efficient diagonal fan with redundant operation
- Optimized aerodynamics via CFD simulation
- Sound-insulated housing made of galvanized sheet steel
- Built-in ETAMASTER for maximum efficiency
- Infinitely adjustable EC motor outside the airflow
- Suitable for outdoor installation and temperatures up to 120°C
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck EM DUO dubbele buisventilatoren geïsoleerd |
| GTIN | 4061199044530 |
| Manufacturer's item number | EM DUO 355 EC K 01 |
| Article number | 65172571 |
Specifications
| Category code | 35 |

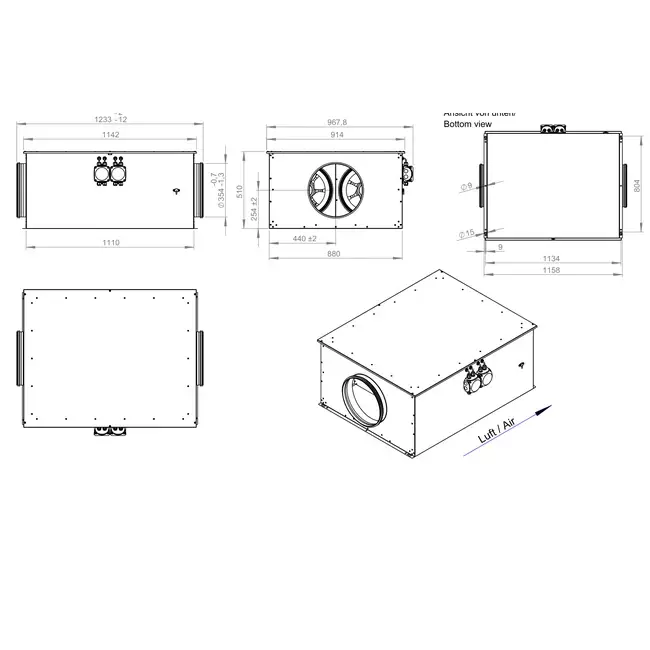

| Length | 1227 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 230 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 2710 m³/h |
| Suitable for frequency control | No |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 35 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter | 355 mm |
