Good points
- Brand: Ruck
- EC motor
- Up to 2520 m3/h
- Speed controllable

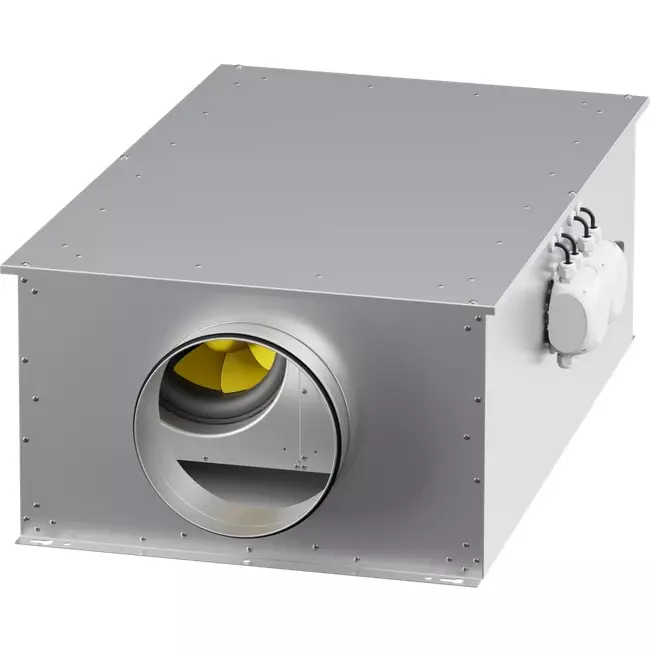

Insulated Energy-Efficient Duct Fan 315 mm – EM DUO 315 EC K 01
The Ruck EM DUO 315 EC K 01 is an advanced duct fan with sound-insulated housing, designed for maximum reliability and energy efficiency. Thanks to the dual diagonal impeller, this model offers redundant operation, ensuring continuous air displacement even under increased demands for operational reliability. The aerodynamics are CFD-optimized and tailored to the integrated ETAMASTER element, resulting in excellent pressure performance and energy-efficient operation.
Powerful and Quiet
The EM DUO 315 EC K 01 is equipped with a continuously adjustable EC motor that is positioned outside the airflow. This keeps the motor protected from contamination and overheating, contributing to the long lifespan of the system. The robust housing made of galvanized steel is fully insulated, ensuring quiet operation even at high speeds. This fan is also suitable for outdoor installation and can be continuously used at medium temperatures up to 120 °C.
Experience the High Quality of Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in developing high-quality ventilation technology. With a team of more than 300 employees, Ruck develops innovative ventilation solutions that meet the strictest ERP standards. The EM DUO 315 EC K 01 is also designed with a focus on sustainability, performance, and reliability.
Features and Specifications
- Efficient diagonal fan with redundant operation
- Optimized aerodynamics via CFD simulation
- Sound-insulated housing made of galvanized sheet steel
- Integrated ETAMASTER for maximum efficiency
- Continuously adjustable EC motor outside the airflow
- Suitable for outdoor installation and temperatures up to 120°C
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck EM DUO dubbele buisventilatoren geïsoleerd |
| GTIN | 4061199044523 |
| Manufacturer's item number | EM DUO 315 EC K 01 |
| Article number | 65172564 |
Specifications
| Category code | 35 |

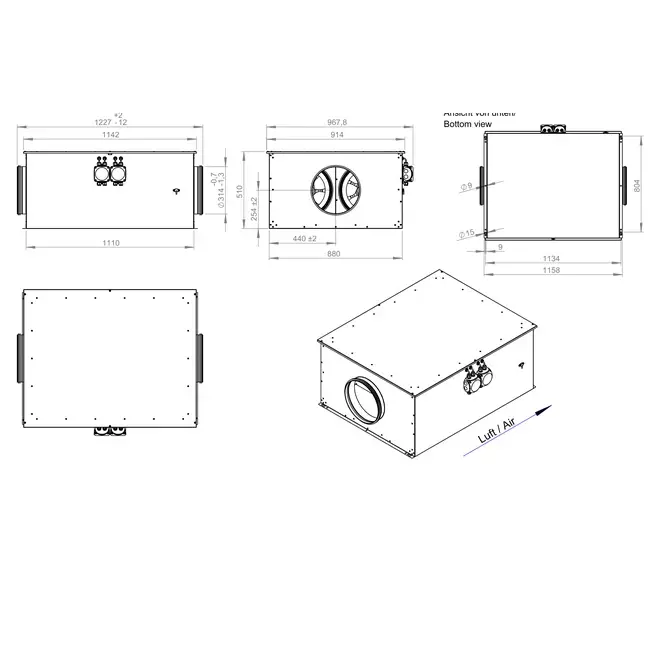

| Length | 1227 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 230 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 2520 m³/h |
| Suitable for frequency control | No |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 35 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter | 315 mm |
