Good points
- Brand: Ruck
- EC motor
- Up to 1010 m3/h
- Speed controllable
200 mm Duct Fan Insulated Energy Efficient – EM DUO 200 EC K 01
The Ruck EM DUO 200 EC K 01 is an extremely efficient and quiet duct fan with an insulated housing. This fan is equipped with a double diagonal impeller for redundant operation, making it particularly suitable for situations where continuous and reliable air displacement is required. Thanks to the CFD-optimized aerodynamics and the built-in ETAMASTER element, this fan delivers top performance in terms of efficiency, pressure build-up, and noise reduction.
Powerful and Quiet
The EM DUO 200 EC K 01 features a high-quality, continuously adjustable EC motor that is positioned outside the airflow. This design optimally protects the motor from heat and contamination. The housing is made of galvanized steel and is equipped with sound insulation, ensuring quiet operation even at high speeds. This fan is also suitable for outdoor applications and designed for medium temperatures up to 120 °C in continuous use.
Experience the High Quality of Ruck
Ruck Ventilatoren GmbH is a renowned German manufacturer with over 25 years of experience in high-quality ventilation technology. As a market leader in energy-efficient duct fans, Ruck combines innovative technology with sustainable quality. With a team of more than 300 employees, Ruck develops products that meet the strictest ERP guidelines and are applicable in the most demanding ventilation projects.
Features and Specifications
- Efficient diagonal fan with redundant operation
- Optimized aerodynamics via CFD simulation
- Sound-insulated housing made of galvanized sheet steel
- Built-in ETAMASTER for maximum efficiency
- Continuously adjustable EC motor outside the airflow
- Suitable for outdoor installation and temperatures up to 120°C
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck EM DUO dubbele buisventilatoren geïsoleerd |
| GTIN | 4061199044233 |
| Manufacturer's item number | EM DUO 200 EC K 01 |
| Article number | 65172109 |
Specifications
| Category code | 35 |

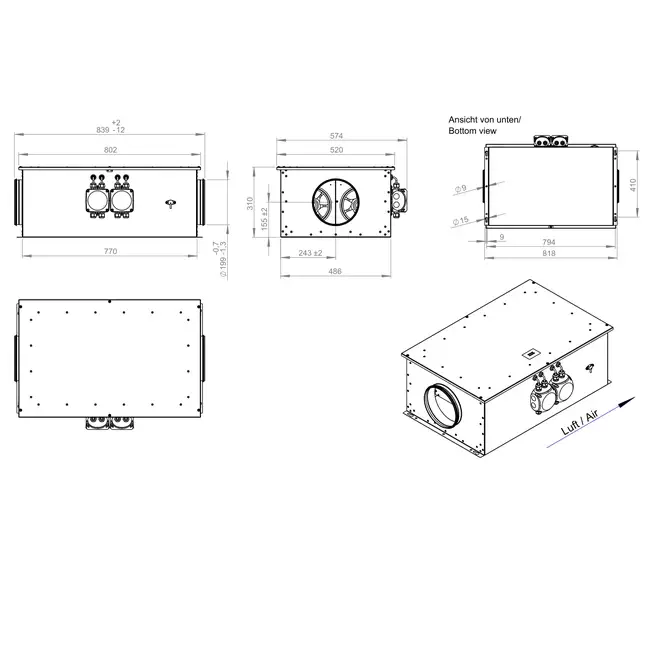

| Length | 949 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 230 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 1010 m³/h |
| Suitable for frequency control | No |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 45 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter | 200 mm |
