Good points
- Brand: Ruck
- EC motor
- Up to 620 m3/h
- Speed controllable
160mm Duct Fan Insulated - ISORX 160 EC K 01
The Ruck ISORX duct fan is a quiet, powerful fan with an insulated housing, ideal for situations where noise reduction and reliable performance are essential. This fan features a swing-out motor unit for easy cleaning and maintenance. Thanks to its compact design, it is easy to install in various ventilation systems.
Powerful and Quiet
The ISORX 160 EC K 01 is equipped with a backward-curved impeller and an external EC motor that is infinitely adjustable. This motor includes internal electronic temperature protection to prevent overheating. The robust housing made of galvanized steel is fully insulated for extra quiet operation. Additionally, the fan is suitable for outdoor installation.
Experience the High Quality of Ruck
Ruck Ventilatoren GmbH is a renowned German manufacturer with over 25 years of experience in ventilation technology. As a market leader in duct fans, they guarantee innovation and sustainability. With a team of more than 300 specialists, Ruck continuously develops new products that meet the strictest ERP standards.
Features and Specifications
- Quiet centrifugal fan with backward-curved impeller
- Galvanized sheet steel housing with sound insulation
- Swing-out fan unit for easy maintenance
- Infinitely adjustable EC motor with external rotor
- Internal electronic temperature protection
- Suitable for outdoor installation
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | ISORX-EC box fans |
| GTIN | 4061199039277 |
| Manufacturer's item number | ISORX 160 EC K 01 |
| Article number | 65165276 |

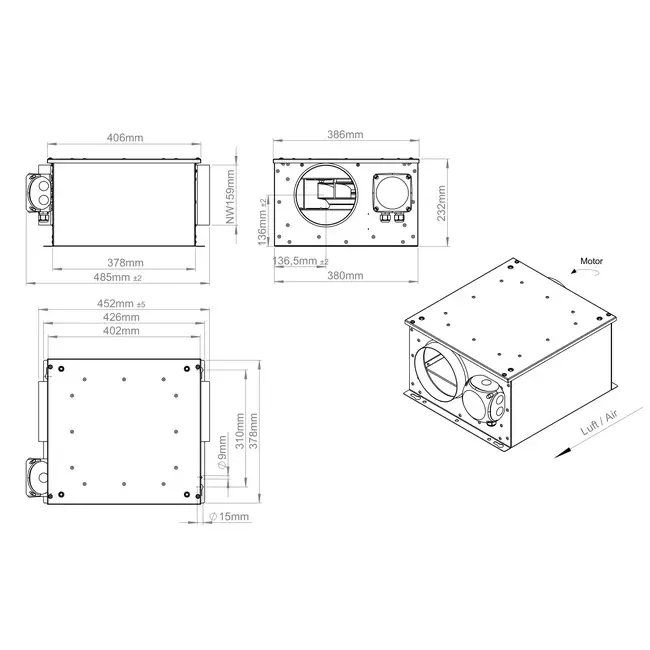

Specifications
| Category code | 35 |
| Length | 378 mm |
| Connection | Insert end |
| Width | 386 mm |
| Height | 232 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP54 |
| Connection voltage | 230 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 620 m³/h |
| Power consumption | 117 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 50 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter, suction | 160 mm |
| Duct diameter, exhaust | 160 mm |
