Thermoduct wall duct 180 mm

Thermoduct Wall Vent 180mm

This Thermoduct wall vent is suitable for HRV systems and other ventilation applications where air is neatly discharged through the wall. The wall vent is constructed from 1 mm aluminium with a welded tube of the same material. Both welding and powder coating are done in-house, ensuring excellent control over the finish and fit.

Benefits and Features

• Wall vent made from 1 mm aluminium for a robust and durable exterior finish.
• Welded tube of 1 mm aluminium for a secure and sturdy connection.
• Thermoduct 9 mm insulation with a thermal conductivity of 0.039 W/mK at 0°C, 0.045 W/mK at 40°C, and 0.051 W/mK at 90°C.
• Powder coated in black for a neat and wear-resistant finish.
• Suitable for HRV systems and ventilation ducts with a 180 mm connection diameter.

Lightweight, Dimensionally Stable and Suitable for Outdoor Use

The aluminium construction remains lightweight and dimensionally stable, even with prolonged external use. Since the tube is welded in-house, the wall vent forms one solid unit. This simplifies installation and ensures a reliable result.

Installation, Maintenance and Applications

The powder-coated finish requires little maintenance and provides a well-maintained appearance on the façade. This wall vent is used in residential and small utility projects where a neat, insulated connection through the wall is needed. It combines a strong aluminium base with practical Thermoduct insulation and a controlled black coating finish, ideal for a durable and reliable ventilation duct connection through the façade.

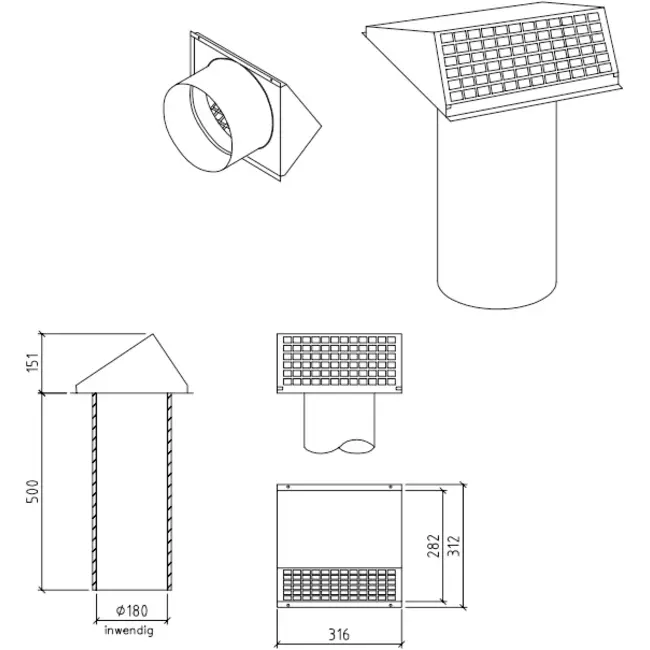

Product Specifications

• Wall grille width: 316 mm
• Wall grille height: 282 mm
• Wall grille height including mounting strips: 312 mm
• Wall grille depth: 151 mm
• Connection diameter: 180 mm
• Channel length: 500 mm
