Thermoduct wall bushing 200 mm

Thermoduct Wall Duct 200mm

This Thermoduct wall duct is suitable for HRV systems and other ventilation applications where air is neatly discharged through the wall. The wall duct is constructed from 1 mm aluminium with a welded pipe of the same material. Both the welding and powder coating are done in-house, ensuring precise control over the finish and fit.

Advantages and Features

• Wall duct made from 1 mm aluminium for a sturdy and durable external finish.
• Welded pipe of 1 mm aluminium ensuring a secure and robust connection.
• Thermoduct 9 mm insulation with thermal conductivity of 0.039 W/mK at 0°C, 0.045 W/mK at 40°C, and 0.051 W/mK at 90°C.
• Powder coated black for a neat and wear-resistant finish.
• Compatible with HRV systems and ventilation ducts with a 200 mm connection.

Lightweight, Dimensionally Stable, and Suitable for Exterior Use

The aluminium construction remains lightweight and dimensionally stable even during prolonged use on the exterior of buildings. Since the pipe is welded in-house, the wall duct forms a single stable unit, which simplifies installation and ensures a reliable result.

Installation, Maintenance, and Applications

The powder-coated finish requires minimal maintenance and provides a well-groomed appearance on the façade. This wall duct is ideal for residential and small commercial projects that require a neat, insulated connection through the wall. It combines a robust aluminium base with practical Thermoduct insulation and a carefully finished black coating, ensuring a dependable and durable connection of ventilation ducts through the wall.

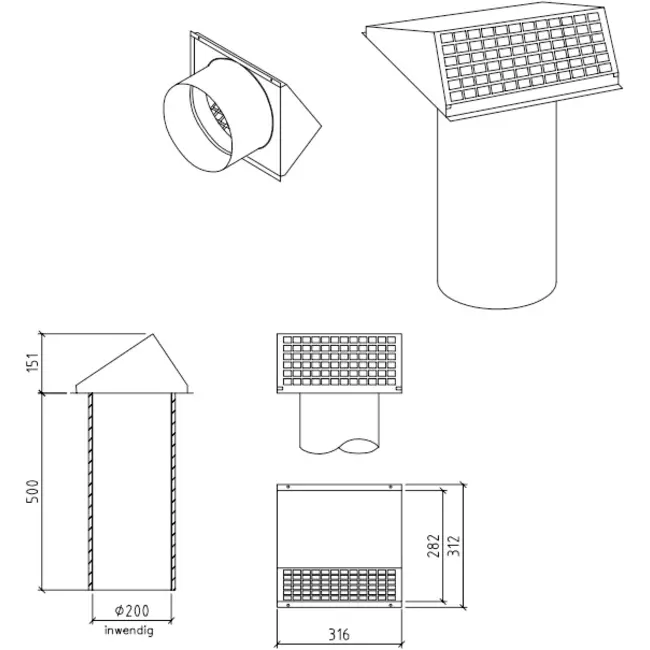

Product Specifications

• Wall grille width: 316 mm
• Wall grille height: 282 mm
• Wall grille height including mounting strips: 312 mm
• Wall grille depth: 151 mm
• Duct connection diameter: 200 mm
• Duct length: 500 mm
