Thermoduct wall bushing 150 mm

Thermoduct wall duct 150mm

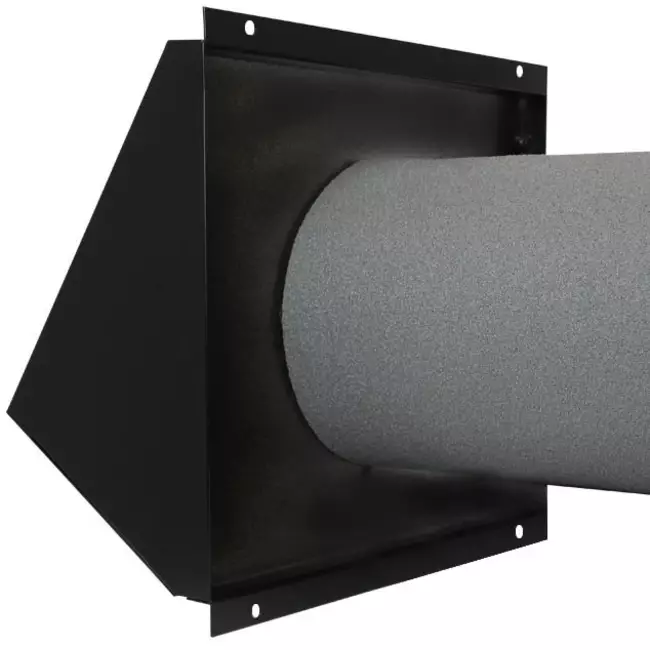

This Thermoduct wall duct is suitable for HRV systems and other ventilation applications where air is neatly discharged through the wall. The wall duct is made from 1 mm aluminium with a welded pipe of the same material. Both the welding and powder coating are carried out in-house, ensuring that the finish and fit remain easily controllable.

Advantages and features

• Wall duct made of 1 mm aluminium for a robust and durable exterior finish.
• Welded pipe of 1 mm aluminium for a fixed and sturdy connection.
• Thermoduct 9 mm insulation with thermal conductivity of 0.039 W/mK at 0°C, 0.045 W/mK at 40°C and 0.051 W/mK at 90°C.
• Powder coated in black for a neat and abrasion-resistant finish.
• Suitable for HRV systems and ventilation ducts with a 150 mm connection diameter.

Lightweight, dimensionally stable and suitable for exterior use

The aluminium construction remains lightweight and dimensionally stable, even with prolonged use on the outside of the building. Because the pipe is welded in-house, the wall duct forms one stable unit. This makes installation straightforward and the result reliable.

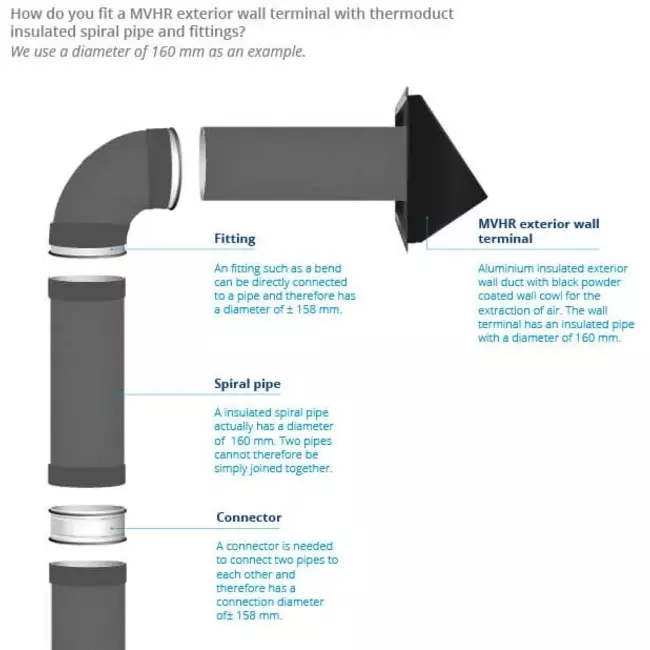

Installation, maintenance and applications

The powder-coated finish requires little maintenance and provides a polished appearance on the façade. This wall duct is ideal for residential properties and small commercial projects where a neat, insulated wall connection is needed. The wall duct combines a sturdy aluminium base with practical Thermoduct insulation and a carefully finished black coating, suitable for a reliable and durable ventilation duct connection through the wall.

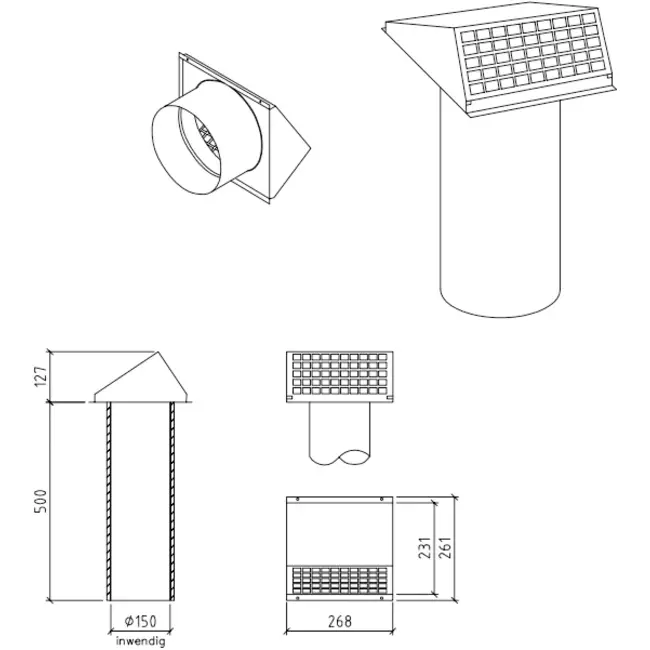

Product specifications

• Wall grille width: 268 mm
• Wall grille height: 231 mm
• Wall grille height including mounting strips: 261 mm
• Wall grille depth: 127 mm
• Duct connection diameter: 150 mm
• Duct length: 500 mm
