Good points
- Ø 160 - 160 mm
- Suitable for Thermoduct ventilation tube and fittings

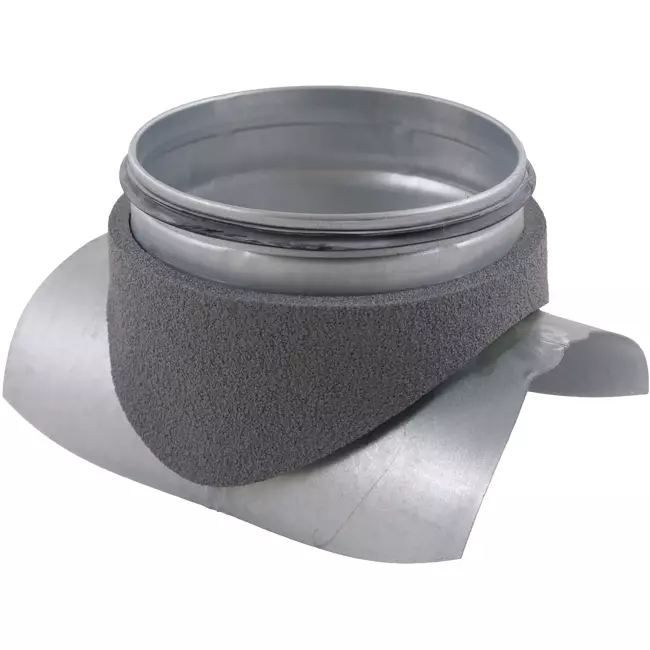

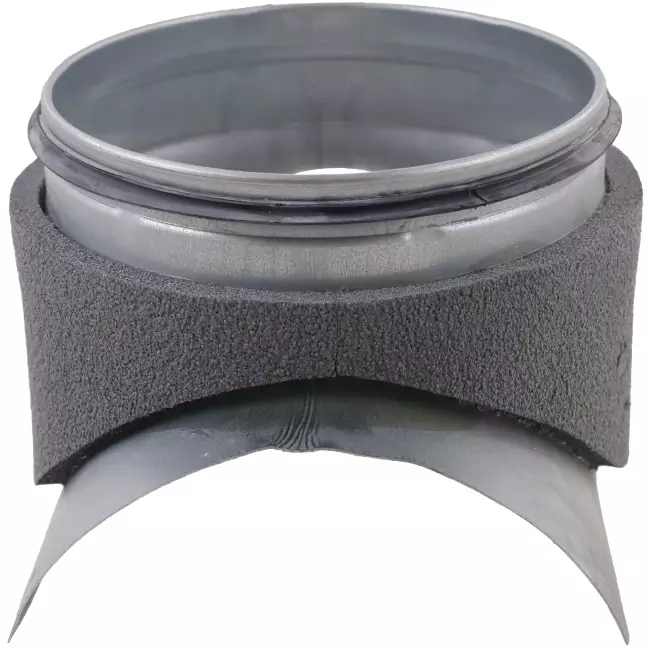

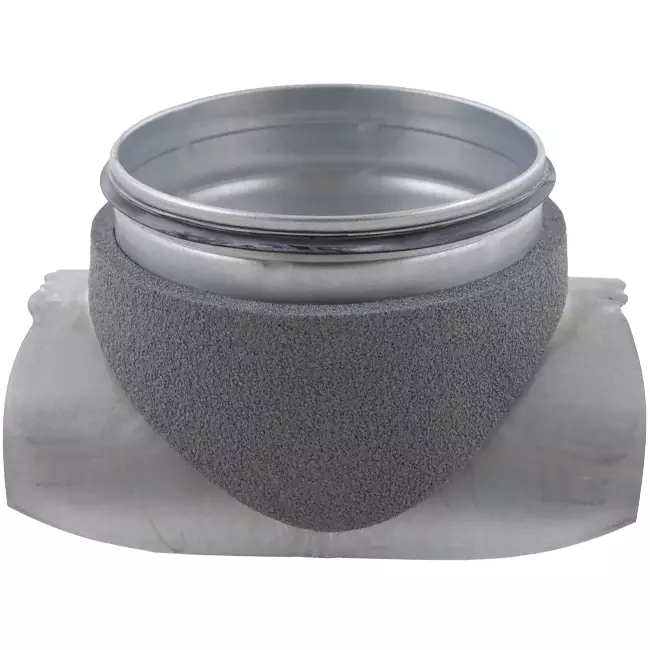

Thermoduct insulated saddle piece 90 degrees 160 mm with branch to 160 mm for air duct systems
Provided with metal inner jacket and thermally insulated outer jacket. Ideally suited for the supply and return of outdoor air. For example to be used with a heat exchanger or air heat pump.
Standard equipped with a rubber seal.
| Brand | Econox |
| Category | Thermoduct spiral Duct Fittings |
| GTIN | 8719544000545 |
| Manufacturer's item number | 10100803 |
| Article number | 10100803 |
Specifications
| Category code | 178 |
| Material | Steel |
| Surface protection | Sendzimir galvanised |
| Connection main duct | Rounded |
| Connection branch | Duct end |
| Nominal duct diameter main duct (min) | 150 mm |
| Nominal duct diameter main duct (max) | 160 mm |
| Nominal duct diameter branch | 160 mm |
| With pre-mounted seal | Yes |
| Eccentric | No |
| Saddle piece pressed | Yes |
| With gauze | No |
| Flow radius | 16 mm |
| Angle | 90 ° |
| Length | 160 mm |
| Working height (duct top) | 80 mm |
| Insert length | 35 mm |
| Air tightness class according to EN 1751 | D |
| Diameter | 160 mm |
| Diameter 2 | 160 mm |
| Type of insulation | Thermoduct insulated 9mm |
