Good points

Thermal and noise reducing solution
Laser cut
Insulation 9mm
Insteekeind connection

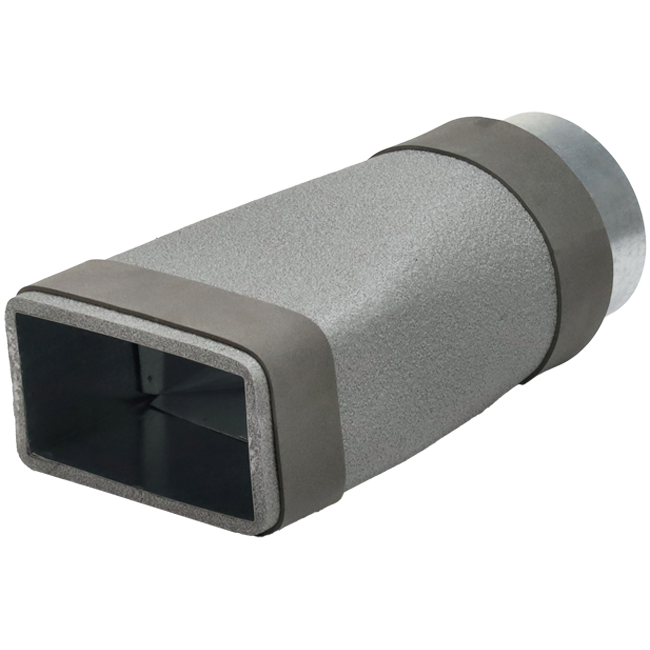

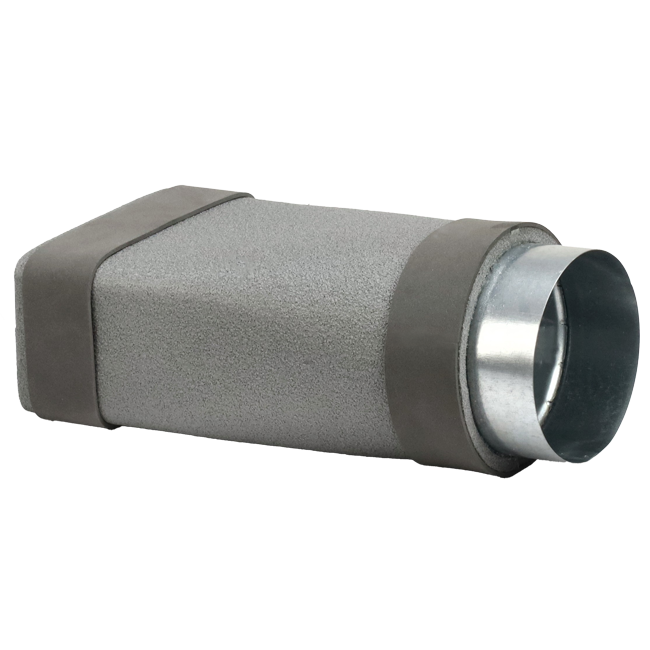

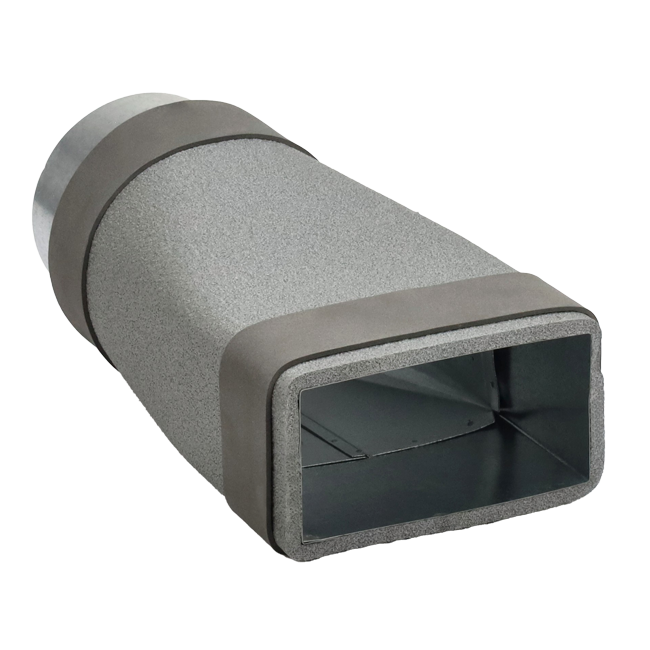

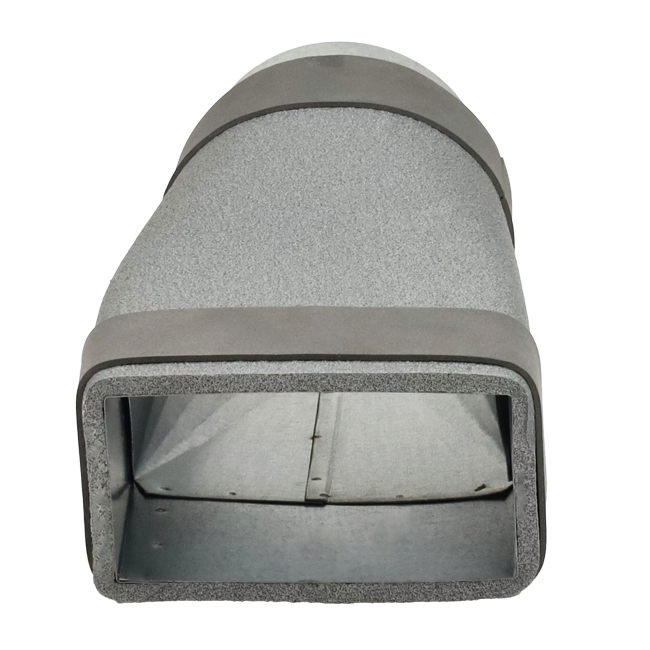

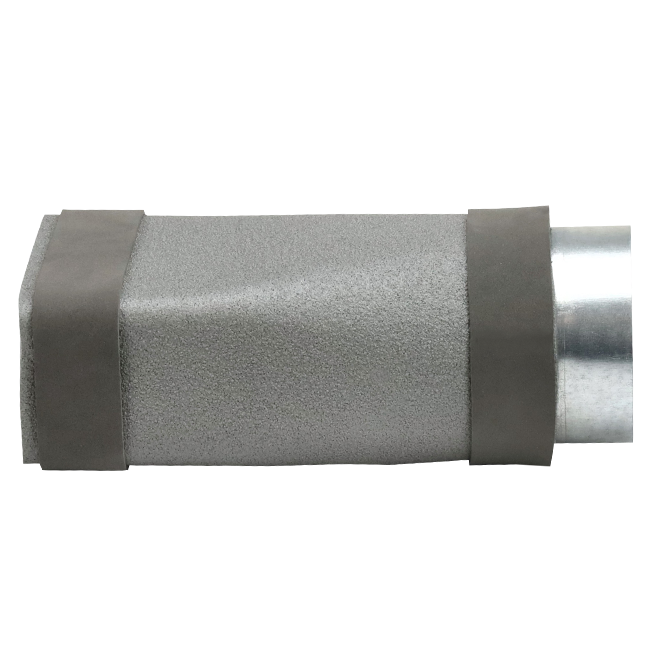

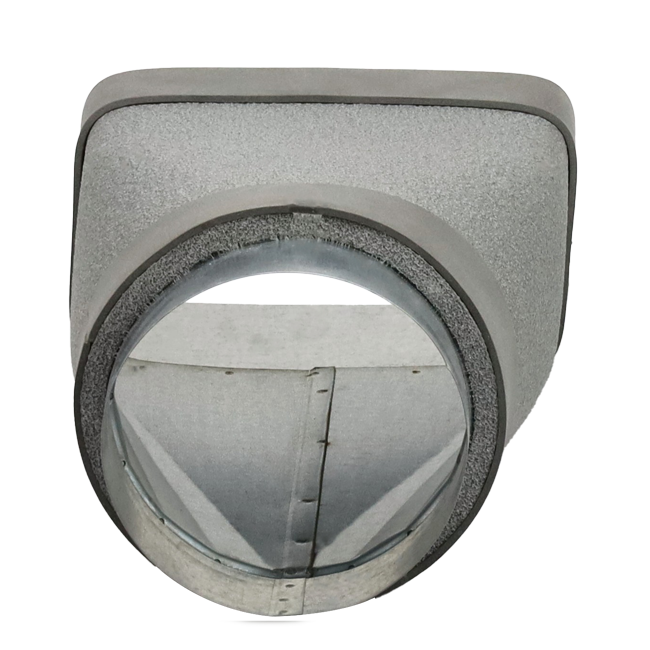

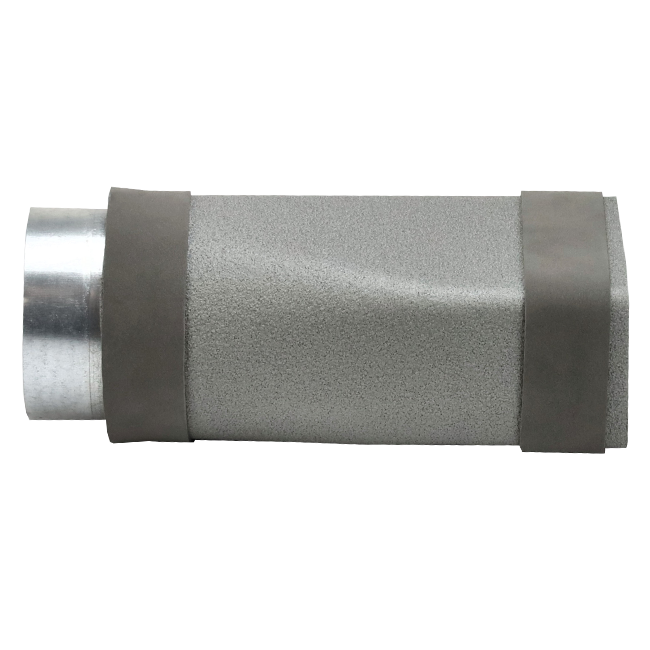

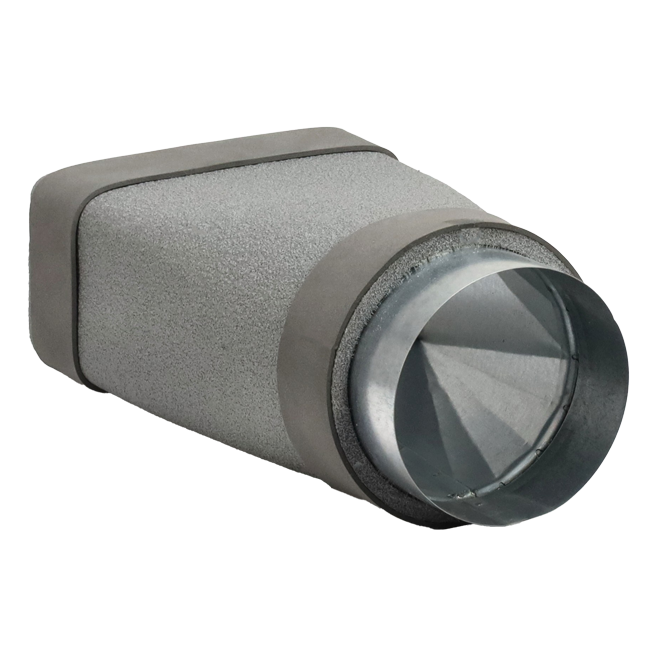

Galvanized insulated reducer - 170mm x 80mm

This galvanized insulated reducer with dimensions 170mm x 80mm has an inlet end that falls directly over a duct, without the need for an additional connector to connect the reducer to an inlet duct.

Inlet ducts are ventilation ducts that are integrated into a floor or concrete to allow air distribution or extraction in buildings. These flexible products are designed to be invisible and are commonly used in new construction and renovation projects. Furthermore, an intake duct can be used in walls, floors and/or ceilings. Combined with a straight trunking duct and various fittings, a ventilation duct can be constructed as desired. Both round and rectangular trunking are available. Some of the benefits of inlet ducts include: efficient airflow, space saving, noise reduction and design flexibility.

Product Specifications

Our insulated inlet air ducts are specifically designed for use in residential construction and floors equivalent to residential construction. In addition, these durable products are manufactured from high quality galvanized steel. This steel is provided with a corrosion-resistant zinc coating, applied using the reliable Sendzimir process, where a two-sided zinc coating is applied. This guarantees a robust and durable protection against corrosion, in accordance with the standards NEN-EN 10346 and NEN-EN 10143.

Depending on the dimensions of the air duct, we choose the most suitable sheet thickness to ensure strength and functionality. A sheet thickness of 0.5 mm is used for slot-in ducts in the dimension 170x80 mm, while the larger dimensions such as 220x80 mm and 300x80 mm are carried out in a 0.6 mm sheet. The transverse joints in rectangular pour-in ducts are implemented as sliding joints, using a coupler. These joints are securely fastened with self-drilling screws. To prevent water or cement from entering the air duct, the joints are finished with PVC tape. Longitudinal joints are performed in a flanged or spot welded connection . These features make our galvanized collapsed air ducts a reliable choice for construction projects where durability and quality are paramount.

Brand	Econox
Category	Thermoduct flat ducts 170x80mm
GTIN	8719544284778
Manufacturer's item number	10064047
Article number	10064047

Specifications

Category code	204
Model	Externally insulated duct
Material duct	Steel
Material quality duct	Other
Wall thickness duct	0.5 mm
Production method	Longitudinal rebated joint
Pressed	No
Material insulation	Other
Insulation thickness	9 mm
Outer surface protection	Sendzimir galvanised
Inner surface protection	Sendzimir galvanised
Outside colour	Grey
Design form	Centric
Connection type connection 1	Rectangular air duct
Nominal duct width connection 1	172 mm
Nominal duct height connection 1	82 mm
Connection 1	Insert end
Connection type connection 2	Round air duct
Nominal duct diameter, connection 2	150 mm
Connection 2	Insert end
Length	156 mm
Length of connection 1	28 mm
Working length connection 1	128 mm
Length of connection 2	150 mm
Working length connection 2	100 mm
Embeddable in concrete	Yes
Air tightness class according to EN 1751	C
