Good points
- Ø 250 - 125 mm
- Air tightness class 2
- Thermal and noise reducing solution
- Cost-saving due to short installation time

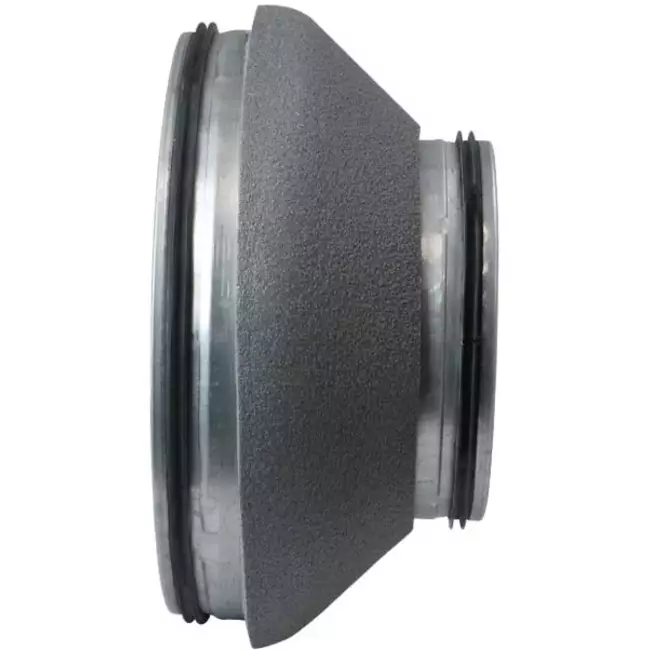

Thermoduct Insulated Reducer 250 mm to 125 mm
This insulated Thermoduct reducer features a galvanised metal pipe with an outer jacket of thermal insulation material with a 9 mm closed-cell structure.
The Thermoduct insulated reducer is ideal for supply and exhaust air connections of, for example, HRV units and air handling units. The Thermoduct insulated ventilation pipe and fittings are developed and manufactured by Econox.
Prefab solution
Thermoduct is the prefabricated solution for installing insulated, low-noise and energy-efficient ventilation. The Thermoduct reducer is prefabricated and insulated, making installation easier. This also ensures a shorter installation time and is therefore cost-saving.
Reduction of heat loss and no condensation
Thermoduct is an air duct system with a high-quality thermally insulating jacket. The jacket reduces heat loss and, due to the 9 mm dense cell structure, water vapour cannot be transferred. Thermoduct regulates temperature differences between the indoor and outdoor air, virtually eliminating condensation.
Ease of installation
Thermoduct stands for airtight assembly. Thermoduct products are standard equipped with sealing rubber and sealing straps, enabling Thermoduct fittings to achieve airtightness class D or ATC 2. Thanks to the safe connection with rubber sealing and the handy airtight sealing straps, no taping is required. The inner pipe is also galvanised and therefore easy to clean.
Noise reduction
Thanks to the acoustic properties of the insulating jacket, noise is reduced in the ventilation ducts, resulting in a low-noise ventilation system. This makes it the ideal solution for installations that meet the stringent noise requirements of the Building Decree 2012 (max. 30dB(A)).
| Brand | Econox |
| Category | Thermoduct spiral duct transition pieces |
| GTIN | 8719544001917 |
| Manufacturer's item number | 10114022 |
| Article number | 10114022 |
Specifications
| Category code | 178 |
| Connection 1 | Insert end |
| Connection 2 | Insert end |
| Length | 72.5 mm |
| With pre-mounted seal | Yes |
| Model | Uninsulated duct |
| Diameter | 250 mm |
| Design form | Centric |
| Working length connection 1 | 36.25 mm |
| Working length connection 2 | 36.25 mm |
| Air tightness class according to EN 1751 | D |
| Outer surface protection | Sendzimir galvanised |
| Embeddable in concrete | No |
| Inner surface protection | Sendzimir galvanised |
| Material duct | Steel |
| Material quality duct | Other |
| Pressed | Yes |
| Wall thickness duct | 0.5 mm |
| Connection type connection 2 | Round air duct |
| Production method | Seamless |
| Outside colour | Grey |
| Nominal duct diameter, connection 2 | 125 mm |
| Length of connection 1 | 35 mm |
| Length of connection 2 | 38 mm |
| Connection type connection 1 | Round air duct |
| Anti-bacterial treatment | No |
| Perforated inner wall | No |
| Fitting reducing piece | No |
| Duct reducing piece | Yes |
| Antistatic version | No |
| Nominal duct diameter, connection 1 | 250 mm |
| Diameter 2 | 125 mm |
| Type of insulation | Thermoduct insulated 9mm |
