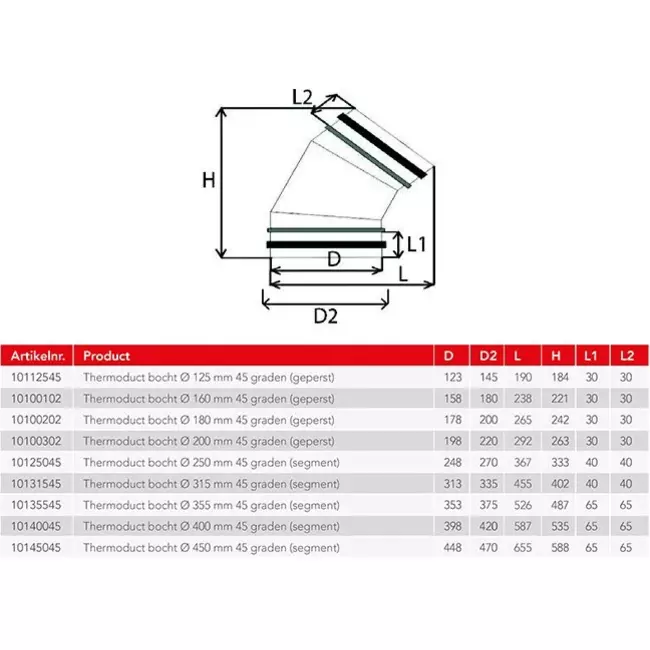

Thermoduct insulated 45° elbow bend with a diameter of 125 mm
This Thermoduct 45° elbow bend is equipped with a galvanic metal pipe with an outer casing of thermal insulation material with a 13 mm closed cell structure.
The Thermoduct insulated elbow bend is suited for air duct systems and Ideal for the supply and extraction of outdoor air. Can be used with an MVHR installation or air source heat pump. The Thermoduct insulated ventilation pipe and accessories are developed and produced by Econox.
Prefab solution
Thermoduct is thé prefab solution for the installation of insulated, silent and energy efficient ventilation. The 45° elbow bend is prefabricated and insulated which makes the installation much easier. This also reduces installation time and therefore saves costs.
Reduction of heat loss and no condensation
Thermoduct is an air duct system with a high-quality thermal insulating casing. The casing ensures that heat loss is reduced and due to the dense cell structure of 13 mm, water vapor cannot be transferred. Thermoduct regulates temperature differences between the indoor and outdoor air, which makes condensation unlikely to occur.
Easy to install
Thermoduct stands for airtight installation. The Thermoduct products are provided with rubber seals and straps and as a result the Thermoduct fittings achieve air tightness class D or ATC 2. Thanks to the safe connection with rubber sealing and the convenient vapor-tight sealing strips, there is no need for any taping. The inner pipe is also galvanised and therefore easy to clean.
Noise reduction
Thanks to the acoustic properties of the insulating casing, noise is reduced in the ventilation ducts, resulting in a silent ventilation system. This makes it the solution for installations that meet the strict noise requirements of the 2012 Building Decree (max. 30dB(A))).
Brand | Econox |
Category | Insulated 45 degree bend |
GTIN | 8719544261403 |
Manufacturer's item number | 11312545 |
Article number | 11312545 |
Specifications
Thickness of insulation | 13 mm |
Lengte aansluiting 1 | 30 mm |
Lengte aansluiting 2 | 30 mm |
Material | Steel |
Nom. diameter | 125 mm |
Surface protection | Sendzimir verzinkt |
Plaatdikte | 0.45 mm |
Mode of production | Overig |
Implementation | Segmented bend |
Verbinding aansluiting 1 | Mof met afdichting |
Verbinding aansluiting 2 | Mof met afdichting |
Werkende lengte aansluiting 1 | 30 mm |
Werkende lengte aansluiting 2 | 30 mm |
Isolatiemateriaal | Overig |
Bochthoek | 45 Hoekgraden |
Bochtstraal | 52 mm |
Insulated | Yes |
Color | Grau |
