Good points

For supply
Galvanized steel
Air flow direction up to 180°
Adjustable deflectors

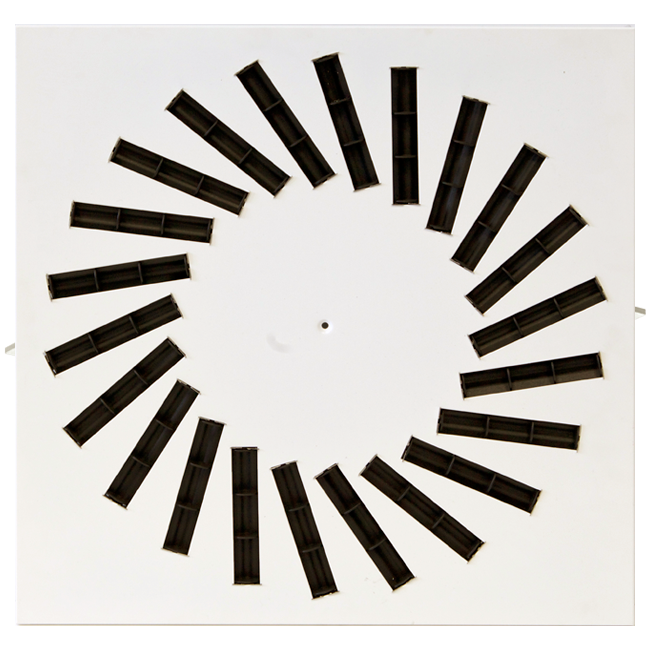

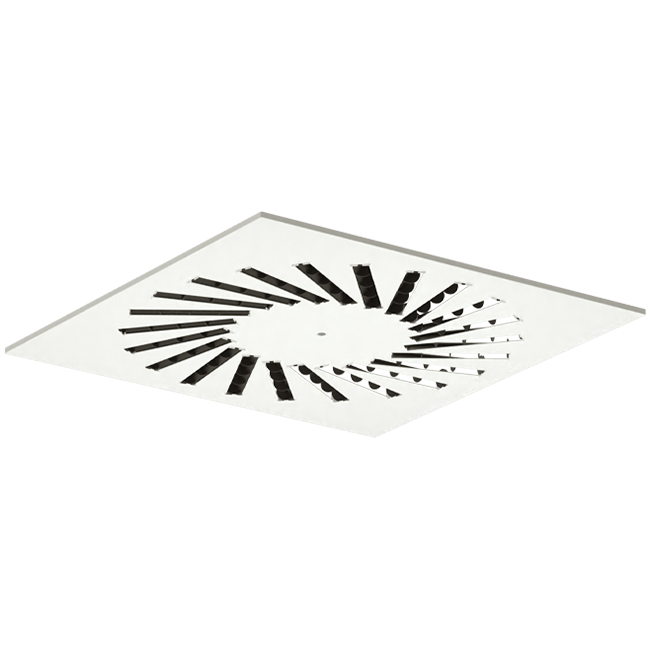

Swirl Diffuser Steel with Adjustable Deflectors – 500x500 mm – RAL 9010

The Econox swirl diffuser with adjustable deflectors is made from galvanized steel and designed to provide optimal air distribution in schools, hospitals, and retail environments. The black plastic deflectors, mounted in a circle around the diffuser, can be manually adjusted to change the airflow direction by up to 180°. This ensures that every corner of the room receives fresh air.

Practical Information

The swirl diffuser is manufactured from galvanized steel and is powder-coated as standard in RAL 9010, 9016, or 9005. The diffuser measures 500 mm by 500 mm and can be connected to a round duct, with the diameter depending on the chosen plenum.

Brand	Econox
Category	Swirl diffusers with adjustable deflectors
GTIN	8719544331717
Manufacturer's item number	79000503
Article number	79000503

Specifications

Category code	59
Material	Steel
Connection	Other
With measuring nipples	No
Front width	500 mm
Colour	White
Servomotor, adjustable	No
RAL-number	9010
Nominal duct diameter connection	500 mm
Front diameter	500 mm
With volume control	No
Without plenum	Yes
Modular ceiling	600x600 mm
Front shape	Rectangular
Front length	500 mm
Air pattern, adjustable	Yes
Top connection on plenum	Yes
Plenum internally insulated	Yes
Plenum with oval connection	No
Air extraction	No
Air supply	Yes
Shape of plenum	Rectangular
