Good points

Panel without plenum
Swirl Ø 500 mm
594x594 mm

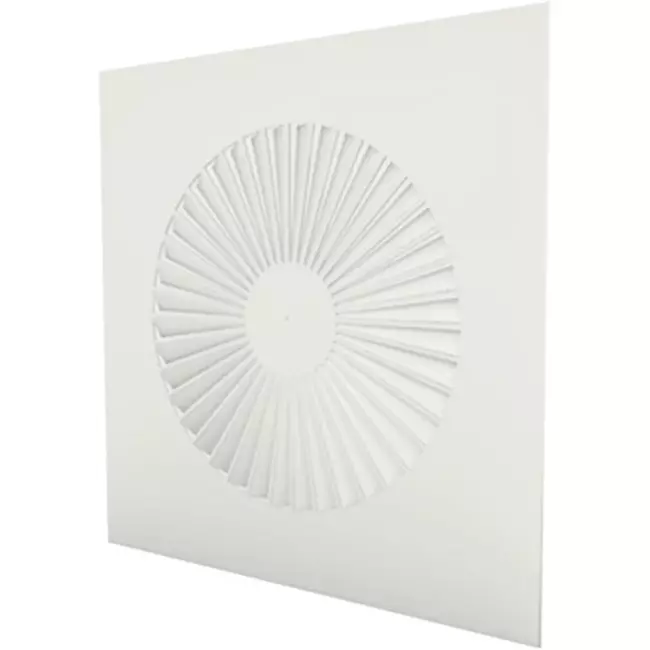

Swirl diffuser 600 x 600 with fixed vanes

This steel square swirl diffuser 600 x 600 with fixed punched vanes has nominal dimensions of 594 x 594 and is suitable for a ceiling system. This swirl diffuser is suitable for supplying and extracting air, the swirl in the diffuser having a diameter of 500 millimetres.

Wall grille features	Value
Nominal length	594 mm
Nominal height	594 mm
Diameter of swirl	Round 500 mm
Affix to	Ceiling system insert 600 x 600
Material	Steel
Adjustable flow	No
Functions	Supply and extraction

The nominal length and height shown is the size of the cutout where the wall grille is mounted, also known as the opening size. If you have a wall grille with clamping springs, we supply screws to match your chosen mixed colour.

Swirl diffuser colours

All swirl diffusers can be supplied in a mixed colour for you (see table). Mixed colours are paint finishes which are mixed specifically for you. All products come on 90-day approval (except for products finished with a 'mixed colour blend').

Mixed colour	Name	Coating	Finish
RAL 9010 (tip)	Pure white	Powder coating	70% gloss
RAL9003	Signal white	Powder coating	70% gloss
RAL9005	Black	Powder coating	30% gloss
RAL9016	Traffic white	Powder coating	70% gloss

(mixed colours shown in photos may differ slightly)

These mixed colours are available at no extra cost. Prefer a different mixed colour? This can be arranged - please contact us for a custom quote.

Brand	Grada
GTIN	8719544186195
Manufacturer's item number	WS400-F0250-0594-RAL 9010
Article number	37050632-9010

Specifications

Category code	59
Coating	RAL 9010
Front width	594 mm
Front length	594 mm
Frontview	Rectangular
Air pattern adjustable	No
Material	Steel
Without plenum	Yes
Right of return	No. Mixed colour customisation
For modular ceiling systems	600 x 600
Colour type (no surcharge)	Bespoke
