Good points

High induction, fast mixing
Fixed vanes, stable pattern
Central screw, quick assembly
Easy to clean

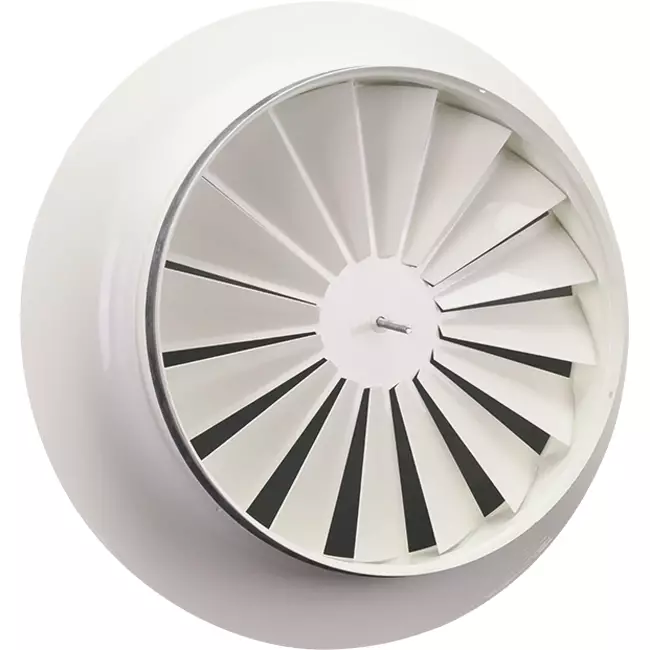

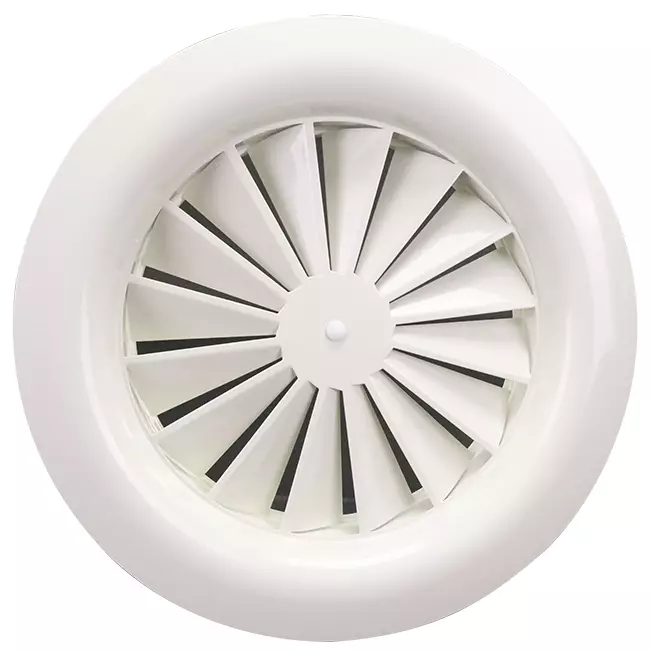

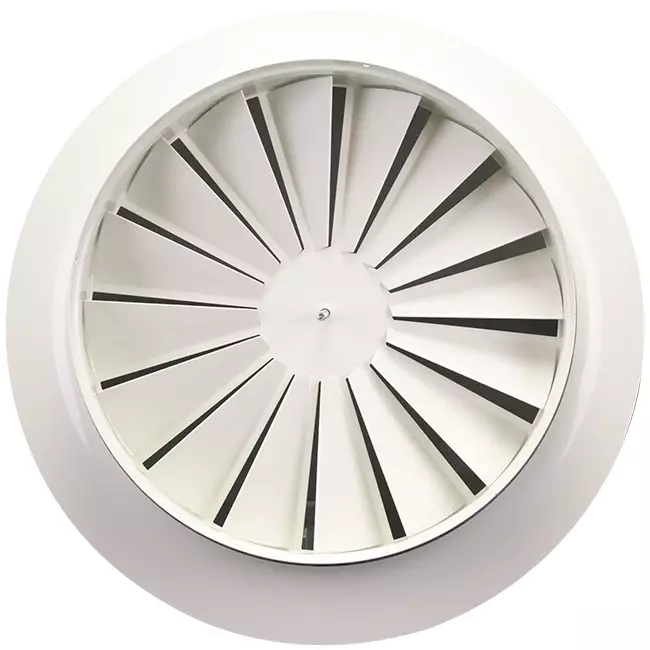

Whirl Diffuser Round 250mm Central Screw - SWR 250 RAL 9016

The round whirl diffuser in RAL 9016 with a diameter of 250 mm is designed for efficient and comfortable air distribution in commercial spaces. Thanks to the fixed blades, a powerful swirling effect with high induction is created, allowing the supply air to quickly mix with the room air present. This ensures an even temperature distribution and minimises drafts in the occupied zone, both during cooling and heating.

The central screw enables quick and secure mounting on ceilings or walls, or directly onto a round duct. The white finish in RAL 9016 integrates seamlessly with standard ceiling systems and wall finishes.

Besides RAL 9016, this type of whirl diffuser is also available in RAL 9010 and RAL 9005 with 30% gloss. Available diameters within the SWR series are 100, 125, 160, 200, 250, 315, and 400 mm, allowing you to easily select the right size for the required airflow and application.

Brand	Econox
Category	Swirl diffusers with diffuser ring
GTIN	8719544332646
Manufacturer's item number	76021085
Article number	76021085

Specifications

Category code	241
With measuring nipples	No
Colour	White
Servomotor, adjustable	No
RAL-number	9016
Nominal duct diameter connection	248 mm
Front diameter	350 mm
With volume control	No
Without plenum	No
Front shape	Round
Built-in height	74 mm
Air pattern, adjustable	No
Plenum with oval connection	No
Air extraction	No
Air supply	Yes
Material	Steel
Connection	Duct end
