Good points

High induction, fast mixing
Fixed blades, stable pattern
Central screw, quick installation
Easy to clean

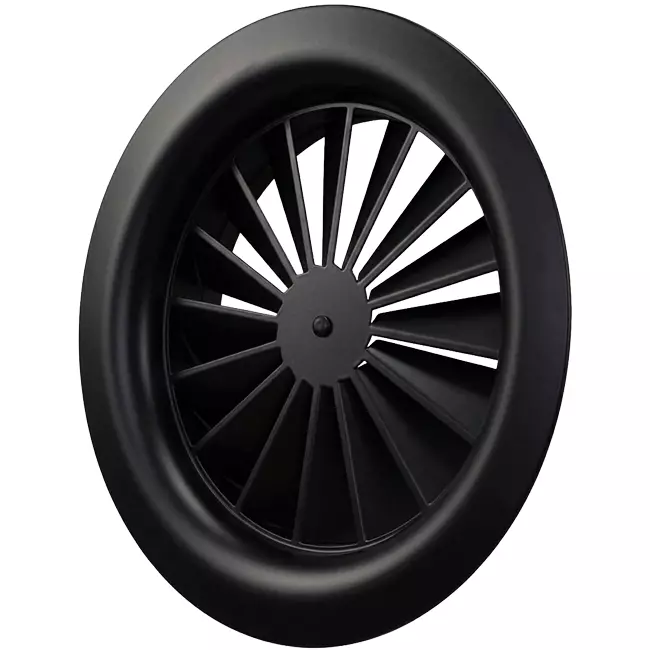

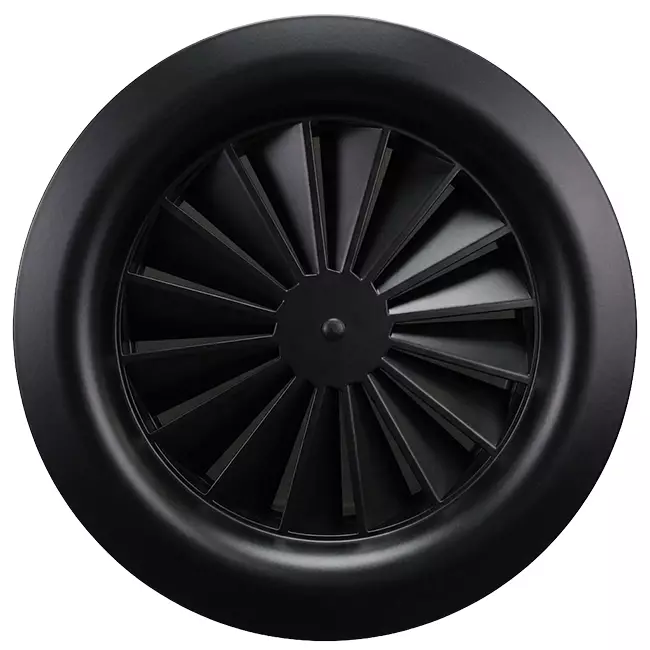

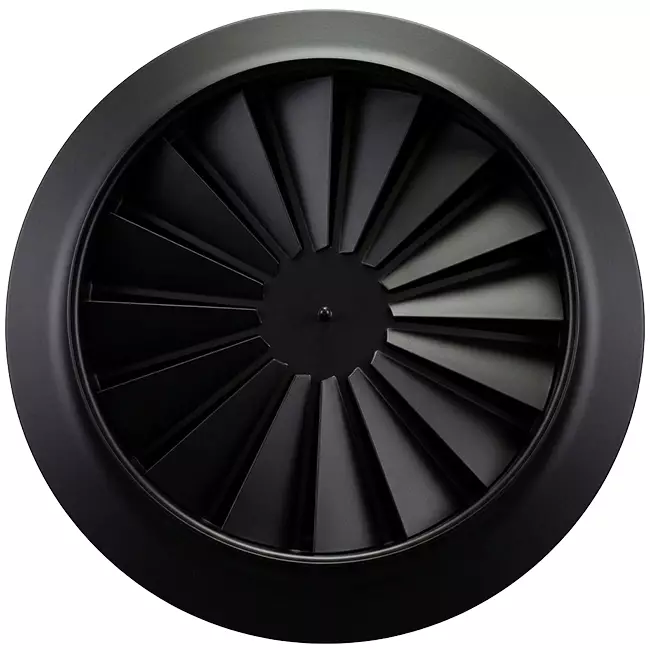

Swirl Diffuser Round 125 mm Central Screw - SWR125 RAL9005 30% Gloss

The round swirl diffuser in RAL 9005 with 30% gloss and a diameter of 125 mm is designed for efficient and comfortable air distribution in commercial spaces. Thanks to the fixed blades, a powerful swirling effect with high induction is created, allowing the supply air to quickly mix with the existing room air. This ensures uniform temperature distribution and limits draught in the occupied zone, both during cooling and heating.

The central screw allows for quick and secure mounting to the ceiling or wall, or directly onto a round duct. The black finish with 30% gloss gives the diffuser a modern appearance that fits well within dark or industrial interior designs.

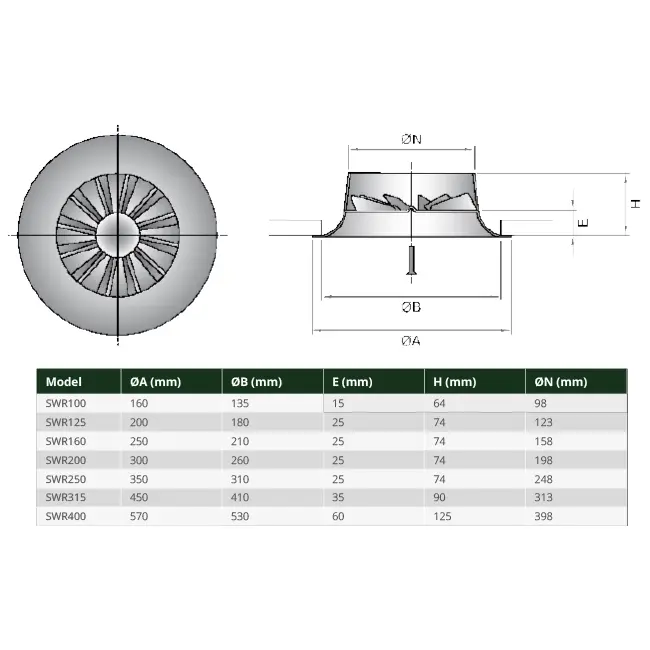

In addition to RAL 9005 30% gloss, this type of swirl diffuser is also available in RAL 9010 and RAL 9016. Available diameters within the SWR series include 100, 125, 160, 200, 250, 315, and 400 mm, making it easy to select the correct size for the required airflow and application.

Brand	Econox
Category	Swirl diffusers with diffuser ring
GTIN	8719544332691
Manufacturer's item number	76021090
Article number	76021090

Specifications

Category code	241
Without plenum	No
Nominal duct diameter connection	123 mm
Connection	Duct end
Front shape	Round
Front diameter	200 mm
Built-in height	74 mm
Colour	Black
RAL-number	9005
Air pattern, adjustable	No
Servomotor, adjustable	No
Plenum with oval connection	No
With volume control	No
With measuring nipples	No
Air extraction	No
Air supply	Yes
Material	Steel
