Good points
- Brand: Ruck
- Up to 1200 m3/h
- With electric heater
- Integrated controls
Supply Unit with Electric Heating – FFH 315 EC EOJR 01
The FFH 315 EC EOJR 01 is a compact supply unit with integrated electric heating, suitable for ceiling and wall mounting. The unit features a frameless, double-walled, and insulated housing made of galvanized steel sheet. It is equipped with quiet and energy-efficient EC fans with constant air flow control and integrated control. The unit supports Modbus communication, has a 0–10 V output for controlling an external exhaust fan, and a sensor input for flexible regulation. The electric heating is protected by a safety temperature limiter. An integrated M5 outdoor air filter ensures reliable basic filtration.
More technical information about this product can be found in the attachment under the "Documents" tab.
| Brand | Ruck ventilatoren GmbH |
| Category | Supply unit |
| GTIN | 4061199045025 |
| Manufacturer's item number | FFH 315 EC EOJR 01 |
| Article number | 65173226 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor positioning |
| Housing material | Steel, lined |
| Fan type | Direct |
| Type of motor | Electronically commutated (EC) |
| Number of fan levels | 2820 |
| Type of cooling coil | None |
| Type of heating coil | Electrical heating element |
| Change-over system | No |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency supply filter according to ISO 16890-1:2016 | 50 % |
| With condensate drain | No |
| Frost protection circuit | No |
| With constant pressure control | Yes |
| With constant volume flow control | Yes |
| Connection voltage | 1x 230 V AC |
| Electrical connection | Terminals |
| With thermal overload protection | Yes |
| Power consumption | 0.02 kW |
| Suitable for electronic control | Yes |
| Suitable for low-current control | Yes |
| With rotational speed/frequency control | Yes |
| Suitable for transformer control | No |
| Nominal duct diameter, indoor connection | 314 mm |
| Connection | Other |
| Degree of protection (IP) | IP44 |

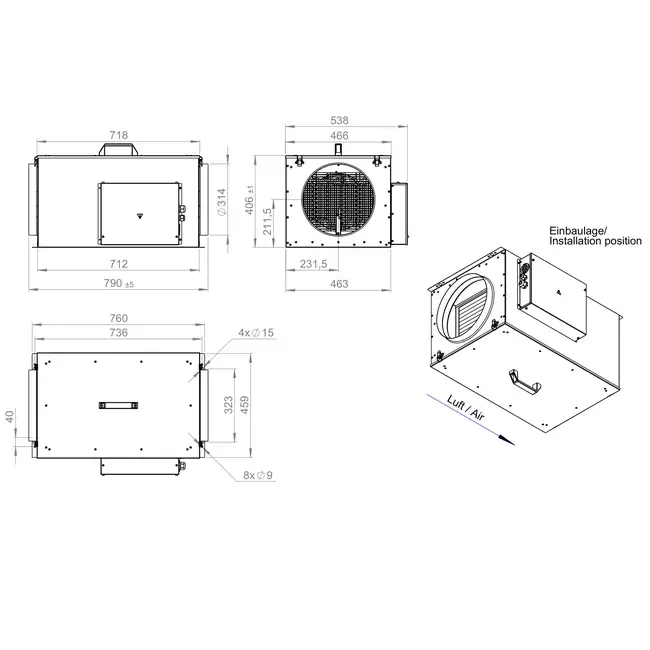

| Length | 712 mm |
| Width | 463 mm |
| Height | 406 mm |
| With roof plate | No |
| With support frame | No |
| Weight | 36.7 kg |
