Good points
- Brand: Ruck
- Up to 1190 m3/h
- With electric heater
- Integrated controls

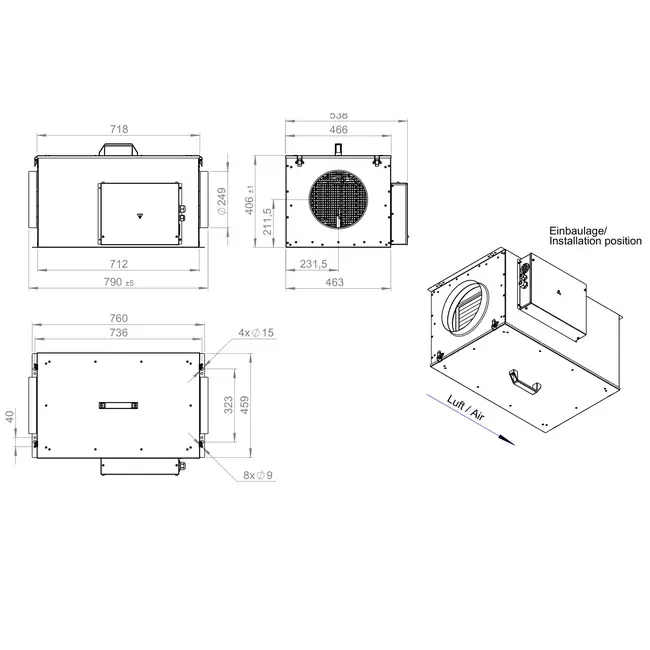

Supply Unit with Electric Heating – FFH 250 EC EOJR 01
The FFH 250 EC EOJR 01 is a compact supply unit with integrated electric heating, suitable for installation on the ceiling or wall. The unit features a frameless, double-walled, and insulated housing made of galvanized steel sheet. Energy-efficient EC fans with constant volume flow control and integrated control ensure reliable operation. Thanks to the sensor input, Modbus communication, and 0–10 V output, easy connection to an external exhaust fan is possible. The heating is protected by a safety temperature limiter, and the integrated M5 outdoor air filter contributes to a healthy indoor climate.
More technical information about this product can be found in the attachment under the "Documents" tab.
| Brand | Ruck ventilatoren GmbH |
| Category | Supply unit |
| GTIN | 4061199045018 |
| Manufacturer's item number | FFH 250 EC EOJR 01 |
| Article number | 65173224 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor positioning |
| Housing material | Steel, lined |
| Fan type | Direct |
| Type of motor | Electronically commutated (EC) |
| Number of fan levels | 2820 |
| Type of cooling coil | None |
| Type of heating coil | Electrical heating element |
| Change-over system | No |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency supply filter according to ISO 16890-1:2016 | 50 % |
| With condensate drain | No |
| Frost protection circuit | No |
| With constant pressure control | Yes |
| With constant volume flow control | Yes |
| Connection voltage | 1x 230 V AC |
| Electrical connection | Terminals |
| With thermal overload protection | Yes |
| Power consumption | 0.02 kW |
| Suitable for electronic control | Yes |
| Suitable for low-current control | Yes |
| With rotational speed/frequency control | Yes |
| Suitable for transformer control | No |
| Nominal duct diameter, indoor connection | 249 mm |
| Connection | Other |
| Degree of protection (IP) | IPX4 |
| Length | 712 mm |
| Width | 463 mm |
| Height | 402 mm |
| With roof plate | No |
| With support frame | No |
| Weight | 37.8 kg |
