RRP 2,781.96
1,808.28
-35%
Delivery time: 5 weeks
- The largest collection in the United Kingdom
- 100 day return period
- Customer review 9/10
- Safe shopping with Trustedshops
Pay safe and fast with:
Good points
- Brand: Ruck
- Up to 660 m3/h
- With electric heater
- Integrated controls
Supply Unit with Electric Heating – FFH 200 EC EOJR 01
The FFH 200 EC EOJR 01 is a compact supply unit with integrated electric heating, designed for ceiling or wall mounting. The unit features a frameless, double-walled, and thermally insulated housing made of galvanized steel sheet. It is equipped with efficient EC fans with constant air volume control and integrated control. The unit supports Modbus communication, has a 0–10 V output for external exhaust fans, and a sensor input for advanced control. The electric heating is fitted with a safety temperature limiter, and the integrated M5 outdoor air filter ensures reliable basic air filtration.
More technical information about this product can be found in the attachment under the "Documents" tab.
| Brand | Ruck ventilatoren GmbH |
| Category | Supply unit |
| GTIN | 4061199045001 |
| Manufacturer's item number | FFH 200 EC EOJR 01 |
| Article number | 65173222 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor positioning |
| Housing material | Steel, lined |
| Fan type | Direct |
| Type of motor | Electronically commutated (EC) |
| Number of fan levels | 3970 |
| Type of cooling coil | None |
| Type of heating coil | Electrical heating element |
| Change-over system | No |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency supply filter according to ISO 16890-1:2016 | 50 % |
| With condensate drain | No |
| Frost protection circuit | No |
| With constant pressure control | Yes |
| With constant volume flow control | Yes |
| Connection voltage | 1x 230 V AC |
| Electrical connection | Terminals |
| With thermal overload protection | Yes |
| Power consumption | 0.06 kW |
| Suitable for electronic control | Yes |
| Suitable for low-current control | Yes |
| With rotational speed/frequency control | Yes |
| Suitable for transformer control | No |
| Nominal duct diameter, indoor connection | 199 mm |
| Connection | Other |
| Degree of protection (IP) | IPX4 |

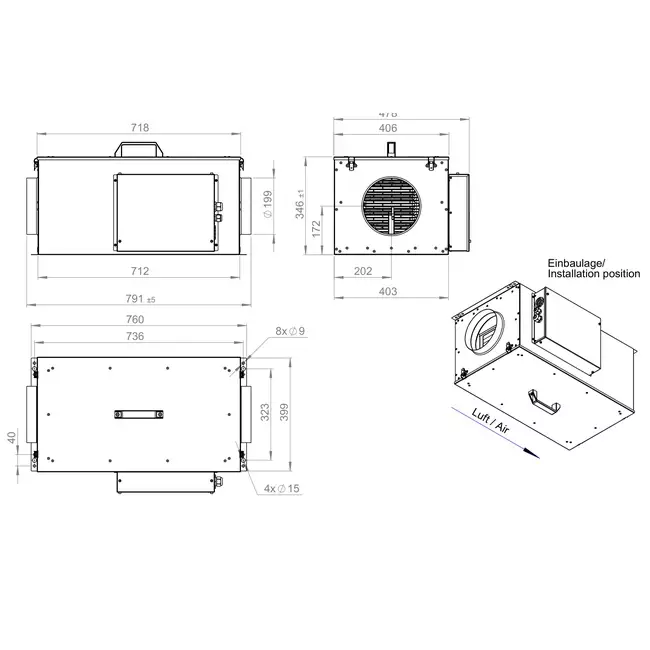

| Length | 712 mm |
| Width | 403 mm |
| Height | 342 mm |
| With roof plate | No |
| With support frame | No |
| Weight | 24.2 kg |
