Good points
- Brand: Ruck
- Up to 620 m3/h
- With electric heater
- Integrated controls
Supply Unit with Electric Heating – FFH 160 EC EOJR 01
The FFH 160 EC EOJR 01 is a compact supply unit with integrated electric heating, suitable for ceiling and wall mounting. The unit features a frameless, double-walled, and insulated housing made of galvanized steel sheet, and utilizes quiet and energy-efficient EC fans with constant volume flow control. The built-in control supports Modbus communication, has a 0–10 V output for controlling an external exhaust fan, and includes a sensor input. The electric heating is protected by a safety temperature limiter. The integrated M5 outdoor air filter ensures reliable air supply with basic filtration.
More technical information about this product can be found in the attachment under the "Documents" tab.
| Brand | Ruck ventilatoren GmbH |
| Category | Supply unit |
| GTIN | 4061199044998 |
| Manufacturer's item number | FFH 160 EC EOJR 01 |
| Article number | 65173220 |
Specifications
| Category code | 36 |

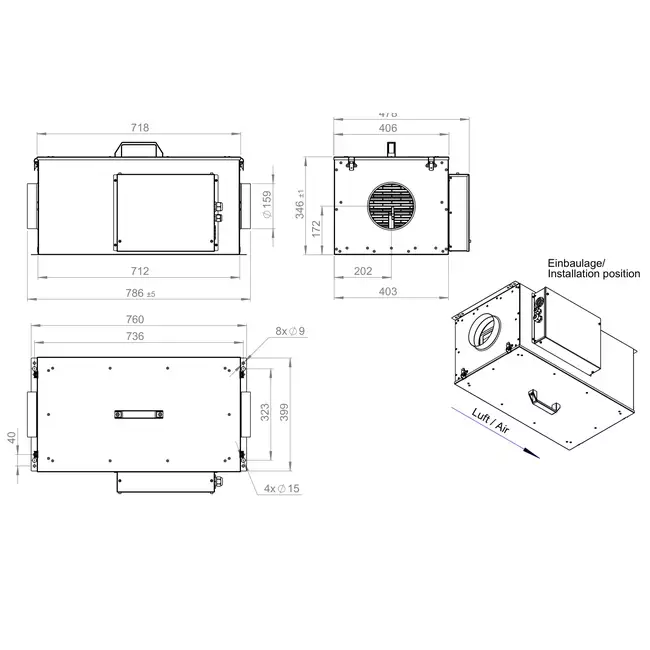

| Length | 712 mm |
| Connection | Other |
| Width | 403 mm |
| Height | 342 mm |
| Housing material | Steel, lined |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| With constant pressure control | Yes |
| Efficiency supply filter according to ISO 16890-1:2016 | 50 % |
| Degree of protection (IP) | IPX4 |
| With constant volume flow control | Yes |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM10 |
| Weight | 24.7 kg |
| Number of fan levels | 3975 |
| Device emplacement | Indoor positioning |
| With thermal overload protection | Yes |
| Type of heating coil | Electrical heating element |
| Power consumption | 0.05 kW |
| Frost protection circuit | No |
| Type of cooling coil | None |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Connection voltage | 1x 230 V AC |
| Fan type | Direct |
| With condensate drain | No |
| With rotational speed/frequency control | Yes |
| With support frame | No |
| With roof plate | No |
| Suitable for low-current control | Yes |
| Nominal duct diameter, indoor connection | 159 mm |
