Good points
- Brand: Ruck
- Up to 510 m3/h
- With electric heater
- Integrated controls
Supply Unit with Electric Heating – FFH 125 EC EOJR 01
The FFH 125 EC EOJR 01 is a compact supply unit with integrated electric heating, specifically designed for ceiling or wall mounting. The unit features a frameless, double-walled housing made of galvanized steel sheet with insulation, and is equipped with energy-efficient EC fans with constant volume flow control. Thanks to the integrated control, sensor inputs and outputs (including Modbus and 0–10 V), the unit can be easily connected to external exhaust fans. The built-in electric heating is equipped with a safety temperature limiter, and an M5 outdoor air filter ensures a healthy air supply.
More technical information about this product can be found in the attachment under the "Documents" tab.
| Brand | Ruck ventilatoren GmbH |
| Category | Supply unit |
| GTIN | 4061199044974 |
| Manufacturer's item number | FFH 125 EC EOJR 01 |
| Article number | 65173216 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor positioning |
| Housing material | Other |
| Fan type | Direct |
| Type of motor | Electronically commutated (EC) |
| Number of fan levels | 3975 |
| Type of cooling coil | None |
| Type of heating coil | None |
| Change-over system | No |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency supply filter according to ISO 16890-1:2016 | 50 % |
| With condensate drain | No |
| Frost protection circuit | No |
| With constant volume flow control | Yes |
| Connection voltage | 1x 230 V AC |
| Electrical connection | Terminals |
| With thermal overload protection | Yes |
| Power consumption | 3.1 kW |
| Suitable for electronic control | Yes |
| Suitable for low-current control | Yes |
| With rotational speed/frequency control | Yes |
| Suitable for transformer control | No |
| Nominal duct diameter, indoor connection | 124 mm |
| Connection | Other |
| Degree of protection (IP) | IPX4 |

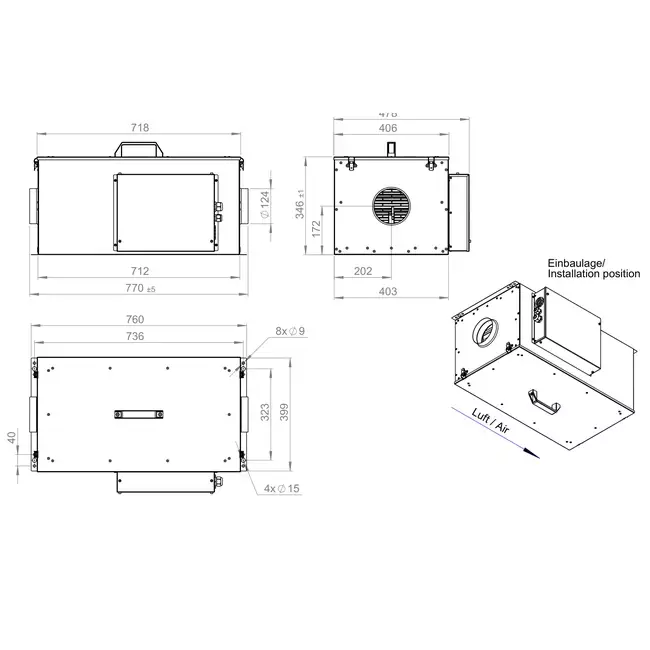

| Length | 712 mm |
| Width | 403 mm |
| Height | 342 mm |
| With roof plate | No |
| With support frame | No |
| Weight | 25.1 kg |
