Spiro-SAFE silencer diameter 500 mm - length 600 mm (100 mm insulation)

Spiro-SAFE sound attenuator diameter 500 mm - length 600 mm (100 mm insulation)

The Spiro-SAFE sound attenuator diameter 500 mm - length 600 mm (100 mm insulation) is a round ventilation sound attenuator made from galvanized steel, specifically designed for use in ventilation and air handling ducts. This attenuator is engineered to effectively reduce noise generated by airflows and mechanical fans, ensuring that noise levels in living and technical spaces remain within acceptable limits.
The connections on both sides of the sound attenuator feature male spigot ends with integrated double EPDM lip seals, providing an airtight and reliable connection to round ventilation ducts.

Practical information

Sound absorption is achieved through glass wool located between the inner and outer casing of the attenuator. Depending on the variant, the wool thickness is 50 mm or 100 mm for the PREMIUM-100 model. The mineral wool is flexible and cut from roll material, allowing it to conform well to the shape of the attenuator and guarantee uniform sound attenuation along the entire length of the product. This ensures consistent damping, even with variable airflow rates and smaller duct dimensions.

The outer casing is made of high-quality galvanized steel to guarantee durability and reliability, resulting in a robust and corrosion-resistant finish.

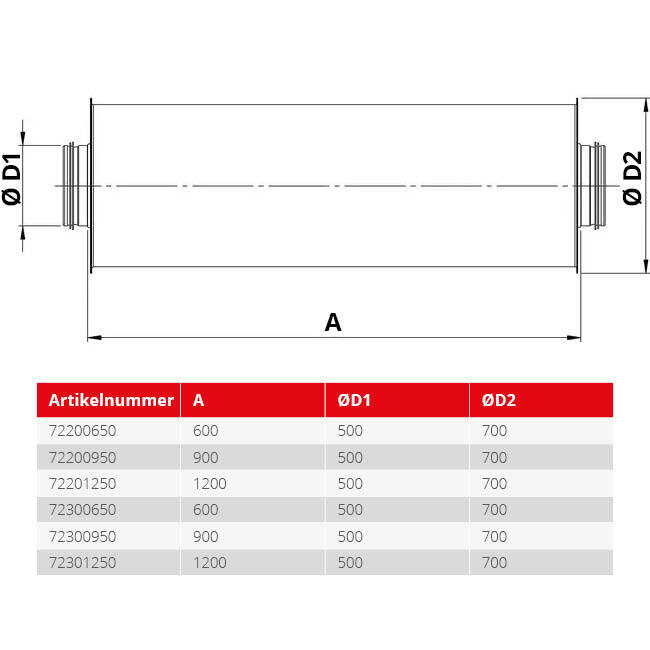

The construction is sturdy and functional, featuring a solid outer shell that withstands mechanical stress during installation and use. The product code clearly indicates the type of attenuator, insulation thickness, duct diameter (Ød1), and attenuator length, making it easy to select the correct attenuator for any ventilation project, from residential buildings to complex commercial applications.

Why is the premium variant better than the standard variant?

The premium sound attenuator offers several advantages over the standard version, making it better suited for certain applications:

1. Wool thickness: The premium attenuator uses 100mm thick mineral wool cut from roll material. This allows the insulation to better conform to the inner shape of the attenuator, providing more uniform sound attenuation.
2. Central core: From diameter 315 upwards, premium attenuators are equipped with a central core. The core directs airflow through a perforated inner tube, increasing the contact between sound waves and the absorption layer. This results in more effective attenuation of mid and high frequencies.
3. More uniform sound reduction: The combination of flexible insulation, tight connections, and thoughtful construction ensures the premium version offers more consistent sound reduction across a broad frequency range. The standard version's attenuation may be slightly less uniform, particularly at lower frequencies.
