Spiro-SAFE premium silencer diameter 560 mm - length 1200 mm with core (100 mm insulation) without plug connections

Spiro-SAFE premium sound attenuator diameter 560 mm - length 1200 mm with core (100 mm insulation)

The Spiro-SAFE premium sound attenuator diameter 560 mm - length 1200 mm with core (100 mm insulation) is a round ventilation sound attenuator made from galvanized steel, specifically designed for use in ventilation and air handling ducts. This attenuator is engineered to effectively reduce noise generated by airflow and mechanical fans, ensuring that sound levels in occupied and technical spaces remain within acceptable limits. The connection of the sound attenuator features male spigot ends on both sides with an integrated double EPDM lip seal, creating an airtight and reliable connection to round ventilation ducts.

Practical information

Sound absorption is achieved through glass wool located between the inner and outer shells of the attenuator. Depending on the design, the wool thickness is 50 mm for standard and 100 mm for the PREMIUM-100 version. The mineral wool is flexible and cut from roll material, allowing it to conform well to the shape of the attenuator and guaranteeing uniform sound attenuation along the entire length of the product. This ensures consistent damping even with variable airflow and smaller duct dimensions.

The outer shell is manufactured from high-quality galvanized steel to ensure durability and reliability, providing a robust and corrosion-resistant finish.

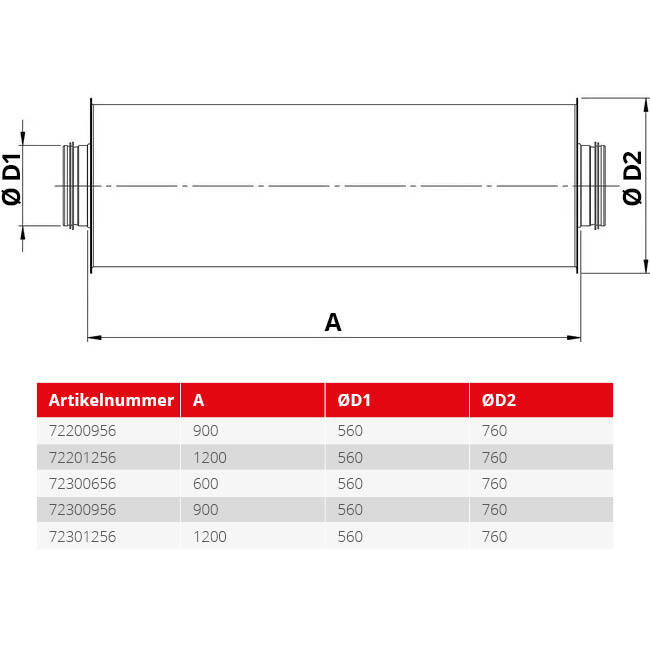

The construction is robust and functional, with a sturdy outer casing resistant to mechanical stresses during installation and operation. The product code clearly indicates information about the type of attenuator, insulation thickness, duct diameter (Ød1), and length of the attenuator. This makes it easy to select the correct attenuator for any ventilation project, from residential buildings to complex commercial applications.

Why is the premium variant better than the standard variant?

The premium sound attenuator offers several advantages over the standard version, making it better suited for certain applications:

1. Wool thickness: The premium sound attenuator uses 100 mm thick mineral wool cut from roll material. This allows the insulation to better conform to the internal shape of the attenuator and provides more uniform sound attenuation.
2. Central core: From diameter 315 mm onwards, premium attenuators are equipped with a core in the centre. The central core directs airflow through a perforated inner tube, which increases the contact of sound waves with the absorption layer. This results in more effective attenuation, particularly of mid and high frequencies.
3. More uniform sound reduction: The combination of flexible insulation, tight connections, and thoughtful construction ensures that the premium variant delivers more consistent sound reduction across a broad frequency range. The standard variant may exhibit slightly less uniform attenuation, especially at lower frequencies.
