Afvoerunit

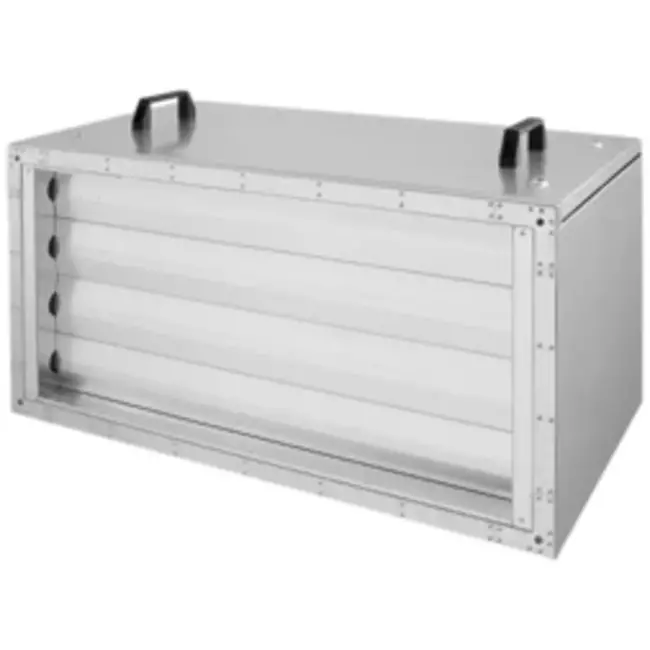

Ruck® extract air handling unit without controls 4580m³/h - 900x300 (SL 9030 E1 10 10)

Ruck® extract air handling unit without controls 4580m³/h - 900x300 (SL 9030 E1 10 10)

1,851.98

Ruck® extract air handling unit without controls 4580m³/h - 900x300 (SL 9030 E1 10 10)

Brand: Ruck ventilatoren GmbH

Ruck® extract air handling unit without controls 4580m³/h - 900x300 (SL 9030 E1 10 10)
Ruck® extract air handling unit without controls 4580m³/h - 900x300 (SL 9030 E1 10 10)
-35%
RRP 2,849.21
1,851.98 -35%
You'll save 997.23
Delivery time: 5 weeks
  • The largest collection in the United Kingdom
  • 100 day return period
  • Customer review 9/10
  • Safe shopping with Trustedshops

Pay safe and fast with:

  • Creditcard
  • PayPal
  • Apple Pay

Good points

  • Brand: Ruck fans
  • EC motor, up to 4580 m3/h
  • Speed adjustable
  • Damper (without actuator)

The SIGHTLINE from Ruck® is a compact, complete and user-friendly air extraction unit. The high-quality housing consists of a frameless metal structure with smooth internal and external walls. Due to the soundproof material that is sealed with glass silk, the supply air unit is insulated against thermal losses. Suitable for ceiling mounting.


  • EC motor
  • Without controls
  • Flat exhaust fan for ceiling mounting
  • Speed controllable


Brand Ruck ventilatoren GmbH
Category Air extraction unit
GTIN 4061199023054
Manufacturer's item number 136269
Article number 65136269

Specifications

Number of phases 1~
Type of motor control 0-10V
Category code 36
Capacitor µ 0 µF
Capacitor Voltage 0 V
IP Motor IP33
Insulation Class Motor F
Max. Operating Current 3.76 A
Max. pressure 655 Pa
Max. Air Volume 4580 m³/h
Max. Current Consumption 3.76 A
Max. power consumption 533 W
Max. Static Efficiency 55.6 %
Max. allowed Medium Temperature 40 °C
Max. allowed Medium Temperature at Rated Current 40 °C
Max. allowed Ambient Temperature 40 °C
Max. allowed Ambient Temperature at Rated Current 40 °C
Max. number of revolutions 3240 1/min
Max. Total Efficiency 58.5 %
Min. Operating Temperature -30 °C
Motor Protection TEC
Motor type EC
Nominal frequency 50 Hz
Rated Speed 2935 1/min
Nominal power consumption 533 W
Nominal voltage 230 V
Nominal current 3.58 A
