Good points

Grease collection tray with drain
Motor outside air flow

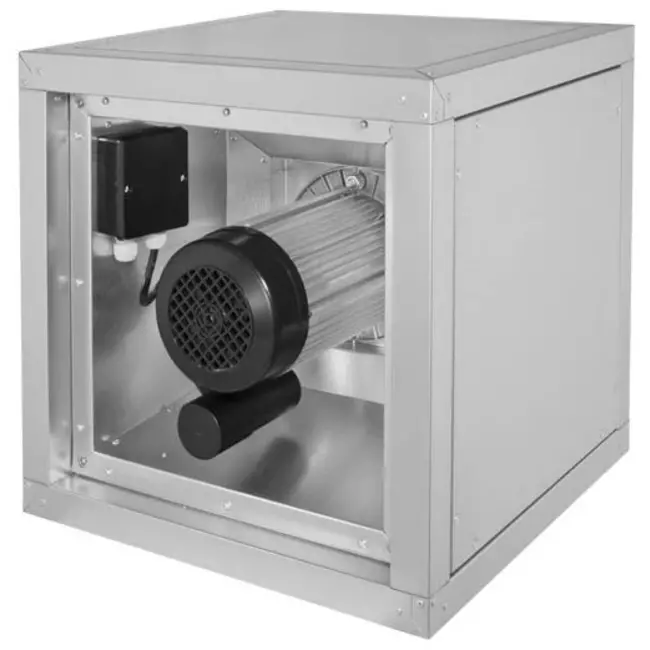

Ruck® box fan with motor outside the air stream

The Ruck® box fan (MPC T series) has an economical motor, this motor is mounted outside the air stream. The advantage of this is that any dirty and contaminated air (grease) is not discharged via the motor. The box fan with motor outside the air stream is therefore often used in the catering industry or kitchen extraction. The fan also has a grease drain tray with extraction. The motor can be operated with a 5 or 7-step transformer. If you use the reducer, we also recommend the Ruck® fast clamp to reduce vibrations and noise through the duct.

The box fan is equipped with 30 mm insulation and has internal electronic temperature control to prevent burn out. The box fan can be mounted via Ruck®'s base frame and has a variable discharge direction. The MPC T series is available with capacities ranging from 1740 m3/h to a maximum of 15750 m3/h and with diameters ranging from 250 mm to a maximum of 630 mm respectively.

Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient box fans with motor outside the air stream. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.

Grease drain tray with extraction
30 mm insulation
Motor outside the air stream
With adjustable speed
Metal housing, galvanised

Brand	Ruck ventilatoren GmbH
Category	Heat-Resistant Box Fan for Hospitality
GTIN	4061199026444
Manufacturer's item number	141186
Article number	65141186

Specifications

Number of phases	1~
Number of poles	4
Type of motor control	V
Capacitor µ	40 µF
Capacitor Voltage	400 V
Weight	80.8 kg
IP Motor	IP54
Insulation Class Motor	F
Max. Operating Current	7.93 A
Max. pressure	815 Pa
Max. Air Volume	7800 m³/h
Max. Current Consumption	6.6 A
Max. power consumption	1429 W
Max. Static Efficiency	45.5 %
Max. allowed Medium Temperature	80 °C
Max. allowed Medium Temperature at Rated Current	80 °C
Max. allowed Ambient Temperature	40 °C
Max. allowed Ambient Temperature at Rated Current	70 °C
Max. number of revolutions	1460 1/min
Max. Total Efficiency	46 %
Min. allowed Voltage	110 V
Min. Operating Temperature	-25 °C
Motor Protection	TAO
Motor type	1~
Nominal frequency	50 Hz
Rated Speed	1370 1/min
Nominal power consumption	1429 W
Nominal voltage	230 V
Nominal current	6.24 A

Documents

Informatieblad

Tekeningen op schaal

Technische tekening (.dwg file)

Technische tekening (.dxf file)

3D-model (.step file)
