Good points
- For drainage
- Steel & extruded aluminum
- 92% free passage
- EPDM sealing ring
Round Aluminium Wall Vent with Fixed Grid – 200 mm – RAL 9003
The round Econox wall vent, made of aluminium and featuring a fixed grid, is specially designed for air extraction in commercial indoor spaces such as offices, schools, and shops. The fixed grid ensures stable, consistent, and predictable air distribution.
Practical Information

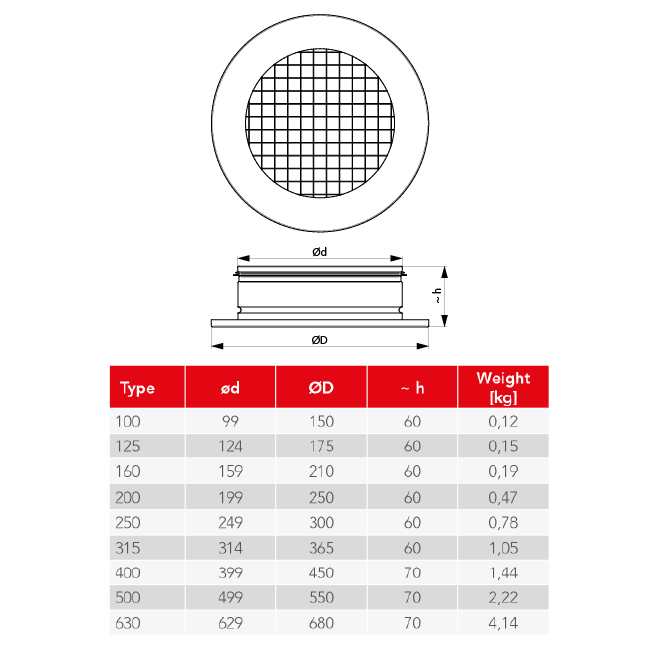

The wall vent has a diameter of 200 mm. The mounting frame is made from galvanised steel and the grid from extruded aluminium, preventing deformation during installation, and powder coated in RAL 9003.
Installation and Applications
The grid has a free flow area of 92% and is equipped with an EPDM sealing ring on the air connection, ensuring an airtight and vibration-free connection to the ventilation duct—without the need for additional tape or sealant. The vent can be easily fitted into a round wall opening with a diameter of 200 mm.
| Brand | Econox |
| Category | Round aluminium wall grilles with fixed louvre |
| GTIN | 8719544330512 |
| Manufacturer's item number | 79000343 |
| Article number | 79000343 |
Specifications
| Category code | 59 |
| Material | Aluminium |
| Surface protection | Lacquered |
| Nominal duct width | 199 mm |
| Nominal duct height | 199 mm |
| Vertical fins | Yes |
| Double row of ribs | No |
| Front width | 250 mm |
| Colour | White |
| With built-in window | Yes |
| Front height | 250 mm |
| Servomotor, adjustable | No |
| Volume setting | None |
| Thermostatically adjustable | No |
| Ball-protected | No |
| Built-in depth | 60 mm |
| Mounting of internal parts/grille | Hidden clamp |
| Suitable for round air duct | Yes |
| Suitable for duct diameter (min) | 200 mm |
| Suitable for duct diameter (max) | 200 mm |
| RAL-number | 9003 |
| Air pattern, adjustable | Yes |
| Diameter | 200 mm |
