Good points
- Ø 315 mm
- With SAFE gasket
- Air tightness class 2
- Segment bend

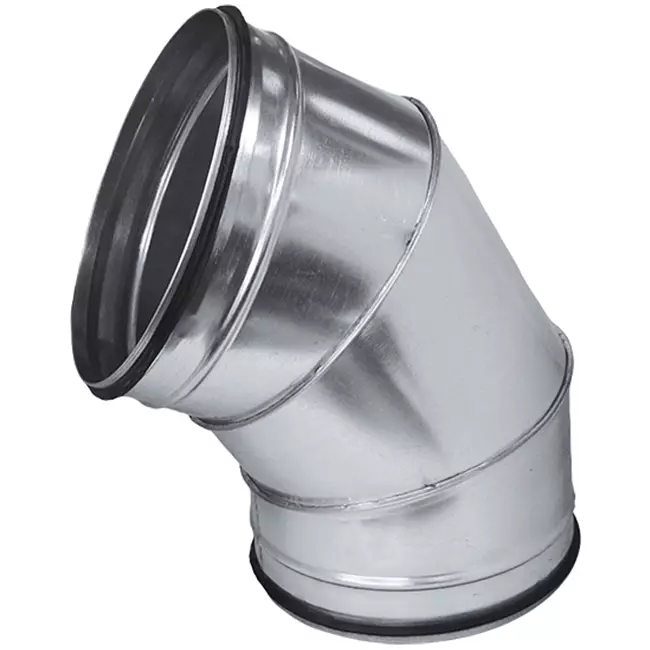

Pressed bend 60° Ø 315 mm for spiral duct
The pressed 60° bend is the ideal connector fitting for two 315 mm metal duct pipes if you want to construct an angled ventilation duct.
Materials and specifications
This bend is pressed from sendzimir-galvanised steel, making it sustainable in use. In the drawings and written specifications you will find all dimensions of the product. Besides the 60-degree bends, our range also includes 30-degree, 45- degree and 90-degree bends with a diameter of 315 mm.
Airtightness class
All our spiral ducts and galvanised fittings comply with the strict airtightness class D quality, according to European Standard EN12237. This gives the bends excellent air-tightness and leads to minimal loss of pressure in the bend.
Easy installation thanks to rubber seal
Our spiral duct fittings also feature a rubber seal. This so-called SAFE fitting ensures an airtight connection. The rubber seal reduces the need for other mounting materials.
| Brand | Econox |
| Category | spiral Duct Elbows 60° |
| GTIN | 8719544260260 |
| Manufacturer's item number | BSL-315-60 |
| Article number | 75060068 |
Specifications
| Category code | 129 |
| Model | Uninsulated duct |
| Material duct | Steel |
| Material quality duct | Other |
| Nominal duct diameter | 315 mm |
| Wall thickness duct | 0.5 mm |
| Production method | Spiral-rebated |
| Outer surface protection | Sendzimir galvanised |
| Inner surface protection | Sendzimir galvanised |
| Perforated inner wall | No |
| Outside colour | Zinc |
| Connection 1 | Insert end |
| Connection 2 | Insert end |
| With inspection opening | No |
| With push-on profile | No |
| With push-on clamp | No |
| With pre-mounted seal | Yes |
| Bend model | Segmental bend |
| Bend angle | 60 ° |
| Bend radius | 315 mm |
| Working length connection 1 | 189 mm |
| Working length connection 2 | 189 mm |
| Insert length | 50 mm |
| Air tightness class according to EN 1751 | D |
| Embeddable in concrete | No |
| Anti-bacterial treatment | No |
| Antistatic version | No |
| Diameter | 315 mm |
| Type of insulation | Uninsulated |
