Good points
- Brand: Ruck
- Up to 19130 m3/h
- Vertical
- Frequency controlled

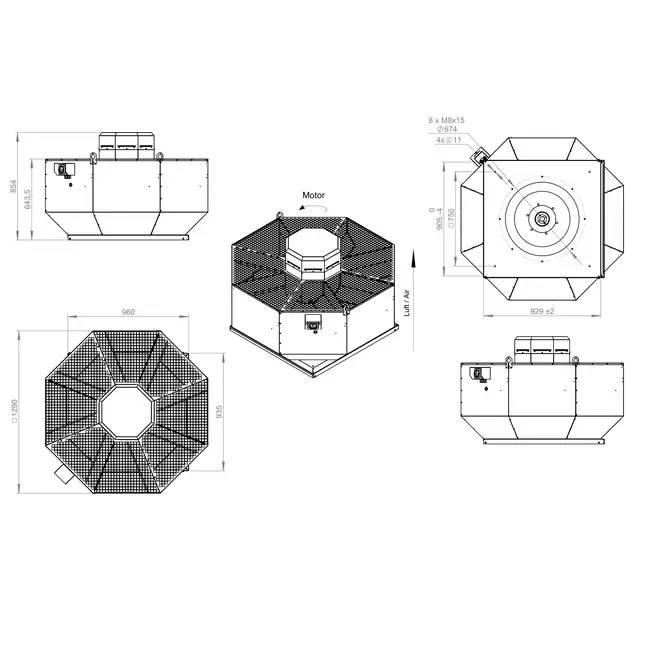

Vertical Metal Roof Fan - DVL 710 D6 RK 01
The Ruck metal roof fan (DVL series) is equipped with an energy-efficient IE3 AC motor and features a vertical airflow direction with centrifugal action. The fan is designed with backward-curved blades for optimal efficiency and includes an integrated working switch. Thanks to the frequency-controlled motor, the air output can be precisely adjusted.
Powerful and Reliable
The DVL 710 D6 RK 01 is ideal for situations where air needs to be expelled vertically. The backward-curved impeller blades ensure high performance with low noise production, even under greater pressure differences. The integrated working switch enhances safety during maintenance work. The fan can be easily mounted on a Ruck roof curb (DSF series) or a sound-insulating base damper (DSS series).
Top Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in ventilation technology. As an expert in vertical roof fans with aluminum housing and integrated working switch, Ruck provides reliable and energy-efficient solutions. With more than 300 employees, the company develops innovative products that fully comply with the strictest ERP guidelines.
Specifications
- Frequency-controlled IE3 AC motor
- Integrated working switch
- Aluminum housing AlMg3
- Backward-curved centrifugal impeller
- Hinged cover for easy maintenance
- Vertical airflow direction
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Vertical Roof extractor fans |
| GTIN | 4061199044868 |
| Manufacturer's item number | DVL 710 D6 RK 01 |
| Article number | 65172923 |
Specifications
| Category code | 35 |
| Operating height | 854 mm |
| Housing material | Aluminium |
| Housing material quality | AlMg3 (3.3503) |
| Electrical connection | Terminals |
| Type of motor | AC |
| With wireless remote control | No |
| Supporting protocol for Modbus | No |
| Number of phases | 3 |
| Operation by app | No |
| Suitable for wireless remote control | No |
| With constant volume flow control | No |
| Frequency | 50/60 Hz |
| Back draught shutter | None |
| Cover design | Octagonal |
| Max. electric power input | 4390 A |
| With thermal overload protection | Yes |
| Max. medium temperature (continuous) | 60 °C |
| With pressure sensor | No |
| Suitable for (extra) pressure sensor | Yes |
| Surface protection impeller | Coated |
| Material impeller | Steel |
| Nominal current | 8.66 A |
| Nominal voltage | 400 V |
| Integrated timer | No |
| Single-speed motor | No |
| Indirect drive | No |
| Rotational speed | 1170 1/min |
| Exhaust direction | Vertical |
| Fan tiltable | No |
| Control signal | 0 - 10 V |
| With sound absorber | No |
| With maintenance-/service switch | Yes |
| Axial model | No |
| Number of poles | 6-pole |
