Vertical Metal Roof Fan - DVL 630 D4 RK 01
The Ruck metal roof fan (DVL series) is equipped with an energy-efficient IE3 AC motor and features a vertical airflow direction with centrifugal action. The fan is designed with backward-curved blades, ensuring high efficiency and quiet operation. The integrated working switch provides extra safety during maintenance. The frequency-controlled motor allows for precise adjustment of the air output to match the specific installation requirements. The housing is made of high-quality aluminum (AlMg3) and features a hinged cover for quick and easy access to the motor and impeller.
Powerful and Reliable
The DVL 630 D4 RK 01 is designed for vertical air discharge, making it ideal for situations where air needs to be expelled directly upwards. The backward-curved centrifugal impeller delivers excellent performance at higher pressure differentials while maintaining a low noise level. The fan is easy to install on a Ruck roof curb (DSF series) or a sound-insulating base damper (DSS series), and is equipped with a working switch for safe service operations.
Top Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in ventilation technology. As a specialist in vertical roof fans with durable metal housing and integrated working switch, Ruck delivers innovative products that meet the highest ERP standards. With more than 300 employees, the company develops efficient and reliable solutions for professional ventilation applications on a daily basis.
Specifications
- Frequency-controlled IE3 AC motor
- Integrated working switch
- Aluminum housing AlMg3
- Backward-curved centrifugal impeller
- Hinged cover for maintenance ease
- Vertical airflow direction
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Vertical Roof extractor fans |
| GTIN | 4061199044851 |
| Manufacturer's item number | DVL 630 D4 RK 01 |
| Article number | 65172921 |
Specifications
| Category code | 35 |

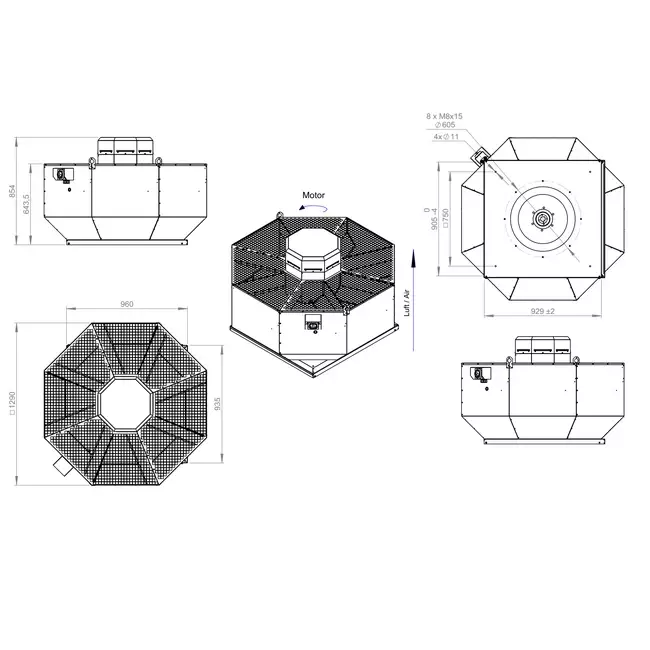

| Operating height | 854 mm |
| Housing material | Aluminium |
| Housing material quality | AlMg3 (3.3503) |
| Electrical connection | Terminals |
| Type of motor | AC |
| With wireless remote control | No |
| Supporting protocol for Modbus | No |
| Number of phases | 3 |
| Operation by app | No |
| Suitable for wireless remote control | No |
| With constant volume flow control | No |
| Frequency | 50/60 Hz |
| Back draught shutter | None |
| Cover design | Octagonal |
| Max. electric power input | 7860 A |
| With thermal overload protection | Yes |
| Max. medium temperature (continuous) | 60 °C |
| With pressure sensor | No |
| Suitable for (extra) pressure sensor | Yes |
| Surface protection impeller | Coated |
| Material impeller | Steel |
| Nominal current | 14.05 A |
| Nominal voltage | 400 V |
| Integrated timer | No |
| Single-speed motor | No |
| Indirect drive | No |
| Rotational speed | 1770 1/min |
| Exhaust direction | Vertical |
| Fan tiltable | No |
| Control signal | 0 - 10 V |
| With sound absorber | No |
| With maintenance-/service switch | Yes |
| Axial model | No |
| Number of poles | 4-pole |
