- Brand: Ruck
- Up to 15215 m3/h
- Vertical
- Frequency controlled

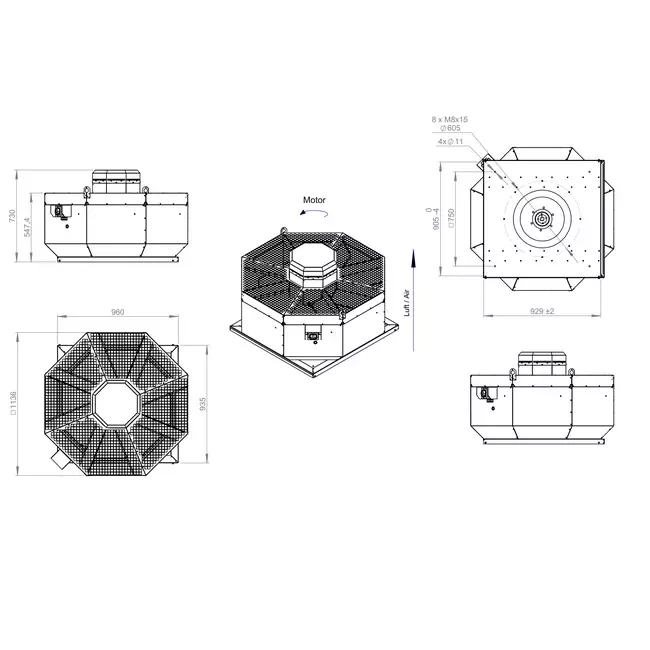

Vertical Metal Roof Fan - DVL 560 D4 RK 02
The Ruck metal roof fan (DVL series) is equipped with an energy-efficient IE3 AC motor and features a vertical discharge direction with centrifugal action. The fan is fitted with backward-curved blades for efficient air displacement and includes an integrated working switch for safe maintenance. The motor is frequency-controlled, allowing for stepless adjustment of the air output. The housing is made of durable aluminum (AlMg3) and features a hinged cover for easy access to internal components.
Powerful and Reliable
The DVL 560 D4 RK 02 is suitable for applications where air needs to be discharged vertically. The backward-curved centrifugal impeller ensures high efficiency and lower noise levels, even at higher pressure differences. Thanks to the integrated working switch, maintenance tasks can be performed safely. The fan is easy to install on a Ruck roof curb (DSF series) or a sound-insulating base damper (DSS series).
Top Quality from Ruck
Ruck Ventilatoren GmbH is a renowned German manufacturer with over 25 years of experience in ventilation technology. As a specialist in vertical roof fans with metal housing and integrated working switch, Ruck develops sustainable ventilation solutions that meet the highest quality and ERP standards. With more than 300 employees, the company guarantees innovation and reliability.
Specifications
- Frequency-controlled IE3 AC motor
- Integrated working switch
- Aluminum housing AlMg3
- Backward-curved centrifugal impeller
- Hinged cover for maintenance convenience
- Vertical discharge direction
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Vertical Roof extractor fans |
| GTIN | 4061199044844 |
| Manufacturer's item number | DVL 560 D4 RK 02 |
| Article number | 65172919 |
Specifications
| Category code | 35 |
| Operating height | 730 mm |
| Housing material | Aluminium |
| Housing material quality | AlMg3 (3.3503) |
| Electrical connection | Terminals |
| Type of motor | AC |
| With wireless remote control | No |
| Supporting protocol for Modbus | No |
| Number of phases | 3 |
| Operation by app | No |
| Suitable for wireless remote control | No |
| With constant volume flow control | No |
| Frequency | 50/60 Hz |
| Back draught shutter | None |
| Cover design | Octagonal |
| Max. electric power input | 4484 A |
| With thermal overload protection | Yes |
| Max. medium temperature (continuous) | 60 °C |
| With pressure sensor | No |
| Suitable for (extra) pressure sensor | Yes |
| Surface protection impeller | Coated |
| Material impeller | Steel |
| Nominal current | 8.49 A |
| Nominal voltage | 400 V |
| Integrated timer | No |
| Single-speed motor | No |
| Indirect drive | No |
| Rotational speed | 1755 1/min |
| Exhaust direction | Vertical |
| Fan tiltable | No |
| Control signal | 0 - 10 V |
| With sound absorber | No |
| With maintenance-/service switch | Yes |
| Axial model | No |
| Number of poles | 4-pole |
