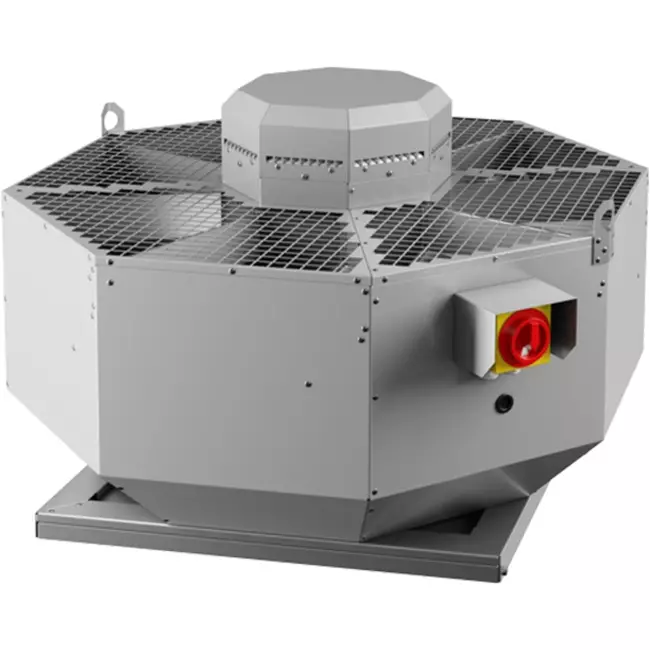

The DVL roof fan from Ruck is a high-quality metal fan with an innovative swing-open door, which makes maintenance easy. This roof fan has a vertical blow-out direction and is equipped with integrated electronics and temperature monitoring. Roof fans from the German A-brand Ruck are known for their high quality and reliability.
| Brand | Ruck ventilatoren GmbH |
| Category | Vertical Roof extractor fans |
| GTIN | 4061199035606 |
| Manufacturer's item number | 160877 |
| Article number | 65160877 |
| Number of phases | 3~ |
| Number of poles | 4 |
| Type of motor control | F |
| Category code | 35 |
| Weight | 79.8 kg |
| IP Motor | IP55 |
| Insulation Class Motor | F |
| Max. Operating Current | 5.2 A |
| Max. pressure | 1040 Pa |
| Max. Air Volume | 13080 m³/h |
| Max. Current Consumption | 5.2 A |
| Max. power consumption | 2604 W |
| Max. Static Efficiency | 63 % |
| Max. allowed Medium Temperature | 60 °C |
| Max. allowed Medium Temperature at Rated Current | 60 °C |
| Max. allowed Ambient Temperature | 60 °C |
| Max. allowed Ambient Temperature at Rated Current | 60 °C |
| Max. number of revolutions | 1485 1/min |
| Max. Total Efficiency | 50 % |
| Min. Operating Temperature | -20 °C |
| Motor type | 3~ |
| Nominal frequency | 50 Hz |
| Rated Speed | 1440 1/min |
| Nominal power consumption | 2604 W |
| Nominal voltage | 400 V |
| Nominal current | 4.9 A |
