Good points
- Brand: Ruck
- Up to 9310 m3/h
- Vertical
- Frequency controlled

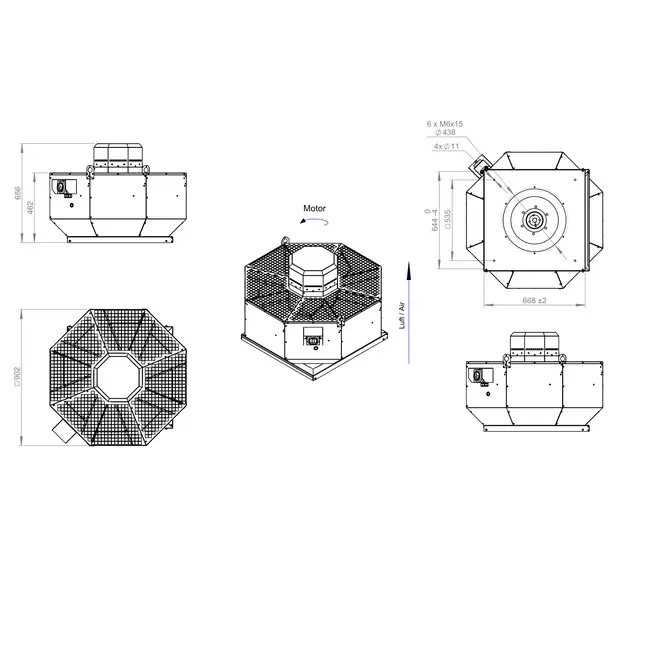

Vertical Metal Roof Fan - DVL 500 D4 RK 02
The Ruck metal roof fan (DVL series) features an energy-efficient IE3 AC motor and has a vertical airflow direction with centrifugal action. The fan is equipped with backward-curved blades and includes an integrated working switch for safe maintenance. The motor is frequency-controlled, allowing for precise adjustment of airflow. The housing is made of high-quality aluminum (AlMg3) and is designed with a hinged cover for easy access to the motor and impeller.
Powerful and Reliable
The DVL 500 D4 RK 02 is ideal for applications where air needs to be expelled vertically. Thanks to the backward-curved impeller blades, this fan offers high efficiency and quiet operation, even under higher pressure differences. The integrated working switch allows for safe maintenance without the need for additional switching equipment. The fan can be easily mounted on a Ruck roof stand (DSF series) or a sound-insulating base damper (DSS series).
Top Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in ventilation technology. As an expert in vertical roof fans with robust metal housings and integrated working switches, Ruck provides high-quality solutions that meet the strictest ERP requirements. With more than 300 employees, Ruck works daily on innovative and sustainable ventilation products for professional use.
Specifications
- Frequency-controlled IE3 AC motor
- Integrated working switch
- Aluminum housing AlMg3
- Backward-curved centrifugal impeller
- Hinged cover for maintenance convenience
- Vertical airflow direction
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Vertical Roof extractor fans |
| GTIN | 4061199044837 |
| Manufacturer's item number | DVL 500 D4 RK 02 |
| Article number | 65172917 |
Specifications
| Category code | 35 |
| Operating height | 656 mm |
| Housing material | Aluminium |
| Housing material quality | AlMg3 (3.3503) |
| Electrical connection | Terminals |
| Type of motor | AC |
| With wireless remote control | No |
| Supporting protocol for Modbus | No |
| Number of phases | 3 |
| Operation by app | No |
| Suitable for wireless remote control | No |
| With constant volume flow control | No |
| Frequency | 50/60 Hz |
| Back draught shutter | None |
| Cover design | Octagonal |
| Max. electric power input | 2379 A |
| With thermal overload protection | Yes |
| Max. medium temperature (continuous) | 60 °C |
| With pressure sensor | No |
| Suitable for (extra) pressure sensor | Yes |
| Material impeller | Steel |
| Nominal current | 4.38 A |
| Nominal voltage | 400 V |
| Integrated timer | No |
| Single-speed motor | No |
| Indirect drive | No |
| Rotational speed | 1780 1/min |
| Exhaust direction | Vertical |
| Fan tiltable | No |
| Control signal | 0 - 10 V |
| With sound absorber | No |
| With maintenance-/service switch | Yes |
| Axial model | No |
| Number of poles | 4-pole |
