Good points
- Brand: Ruck
- Up to 7180 m3/h
- Vertical
- Frequency controlled
Vertical Metal Roof Fan - DVL 450 D4 RK 02
The Ruck metal roof fan (DVL series) is equipped with an energy-efficient IE3 AC motor and features a vertical airflow direction with centrifugal action. The fan is designed with backward-curved blades and includes an integrated working switch. Thanks to the frequency-controlled drive, the air output can be precisely adjusted to your installation. The housing is made of durable aluminum (AlMg3) and features a hinged cover for quick and easy access to the motor and impeller.
Powerful and Reliable
This vertical roof fan is ideal for applications where the airflow needs to be discharged directly upwards. The backward-curved blades ensure high efficiency, low noise levels, and reduced energy consumption at higher pressure differences. The integrated working switch provides extra safety during maintenance work. Installation is straightforward on a Ruck roof curb (DSF series) or on a sound-insulating base damper (DSS series).
Top Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in ventilation technology. As a specialist in vertical roof fans with AC motors and integrated working switches, Ruck delivers innovative and sustainable solutions. With over 300 employees, they work daily on the development of products that meet the highest standards of energy efficiency and reliability, fully in accordance with current ERP guidelines.
Specifications
- Frequency-controlled IE3 AC motor
- Integrated working switch
- Aluminum housing AlMg3
- Backward-curved centrifugal impeller
- Hinged cover for maintenance convenience
- Vertical airflow direction
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Vertical Roof extractor fans |
| GTIN | 4061199044820 |
| Manufacturer's item number | DVL 450 D4 RK 02 |
| Article number | 65172915 |
Specifications
| Category code | 35 |

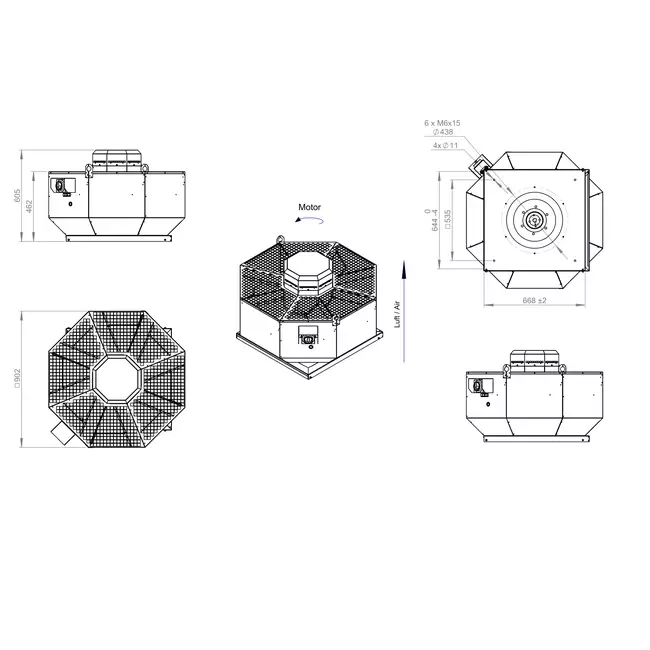

| Operating height | 605 mm |
| Housing material | Aluminium |
| Housing material quality | AlMg3 (3.3503) |
| Electrical connection | Terminals |
| Type of motor | AC |
| With wireless remote control | No |
| Number of phases | 3 |
| Suitable for wireless remote control | Yes |
| With constant volume flow control | No |
| Frequency | 50/60 Hz |
| Surface protection housing | Other |
| Back draught shutter | None |
| Cover design | Octagonal |
| Max. electric power input | 1491 A |
| With thermal overload protection | Yes |
| Max. medium temperature (continuous) | 60 °C |
| With pressure sensor | No |
| Suitable for (extra) pressure sensor | Yes |
| Material impeller | Steel |
| Nominal current | 2.88 A |
| Nominal voltage | 230/400 V |
| Integrated timer | No |
| Single-speed motor | Yes |
| Indirect drive | Yes |
| Rotational speed | 1490 1/min |
| Exhaust direction | Horizontal |
| Fan tiltable | No |
| Control signal | Other |
| With sound absorber | No |
| Sound pressure level at 4 m (outdoor) at Qmax | 80 dB(A) |
| With maintenance-/service switch | Yes |
| Single-speed motor controllable with | Frequency |
