Good points
- Brand: Ruck
- EC motor
- Up to 880 m3/h
- Integrated constant pressure control

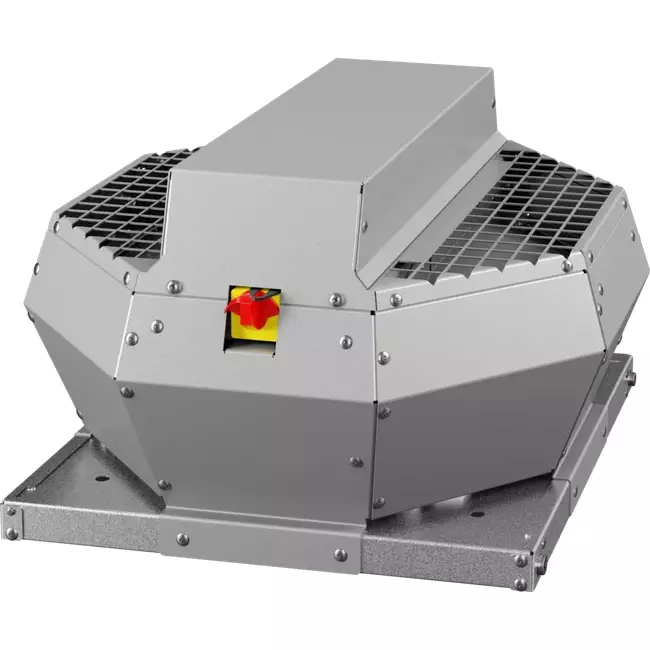

Roof Fan Vertical Constant Pressure Control – DVA 220 EC O CRK 02
The Ruck roof fan (DVA EC O CRK series) with energy-efficient EC motor features a vertical airflow direction and is equipped with integrated constant pressure control. This DC motor is infinitely adjustable via a 0–10 V signal. The roof fan comes standard with a working switch and is suitable for demand-controlled ventilation to automatically maintain the pressure level in your ventilation system. This makes the fan perfect for use with sensors such as a CO₂ sensor.
High Efficiency
The roof fan includes an integrated working switch and electronic temperature monitoring to prevent overheating. The housing is made of high-quality aluminum (AlMg3) and is hinged for easy inspection and maintenance. The fan features backward-curved blades for higher efficiency, lower power consumption, and reduced noise levels at higher pressure differences. The powerful EC motor ensures reliable and energy-efficient operation.
High Quality from Ruck
Ruck Ventilatoren GmbH is a leading German company with over 25 years of experience. They are market leaders in roof fans with EC motors including working switches. With more than 300 employees, Ruck continuously develops new technologies to meet the latest ERP guidelines (Energy Related Product). Quality and innovation are at the core of every product the company delivers.
Main Specifications
- Internal electronic temperature monitoring
- Integrated constant pressure control
- EC motor, infinitely adjustable
- Integrated working switch
- Aluminum AlMg3 housing
- Backward-curved blades
- Hinged housing for maintenance
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Vertical Roof extractor fans |
| GTIN | 4061199042840 |
| Manufacturer's item number | DVA 220 EC O CRK 02 |
| Article number | 65168286 |
Specifications
| Category code | 35 |
| Operating height | 190 mm |
| Housing material | Aluminium |
| Housing material quality | AlMg3 (3.3503) |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| With wireless remote control | No |
| Supporting protocol for Modbus | No |
| Number of phases | 1 |
| Operation by app | No |
| With constant volume flow control | No |
| Frequency | 50/60 Hz |
| Surface protection housing | Untreated |
| Back draught shutter | None |
| Max. electric power input | 110 A |
| With thermal overload protection | Yes |
| Max. medium temperature (continuous) | 60 °C |
| With pressure sensor | Yes |
| Suitable for (extra) pressure sensor | Yes |
| Nominal current | 0.97 A |
| Nominal voltage | 230 V |
| Integrated timer | No |
| Single-speed motor | No |
| Indirect drive | No |
| Rotational speed | 2910 1/min |
| Exhaust direction | Vertical |
| Fan tiltable | No |
| Control signal | 0 - 10 V |
| With sound absorber | No |
| With maintenance-/service switch | Yes |
