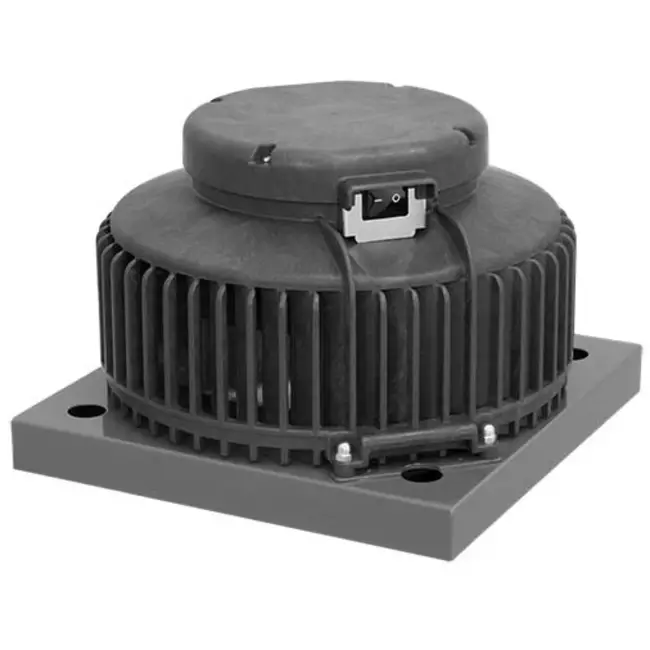

Roof fan plastic energy efficient - DHA 190 EC O PS 01 65165075

Good points

Brand: Ruck fans
EC motor energy efficient
Up to 780 m3/h
Speed controllable

Ruck&reg roof fan plastic with EC motor and isolating switch - 710m3/h (DHA 190 EC O P S 01)

The Ruck&reg roof fan plastic (DHA 190 EC O P S 01) with energy-efficient EC motor has a horizontal discharge direction. This EC motor can be operated with a variable Ruck&reg potentiometer (MTP 20) or by 0-10V control. In addition, demand-controlled ventilation is possible via constant pressure control (CON P1000), to keep the pressure level in your ventilation system constant, or via a CO2 sensor.

The roof fan has an isolating switch, integrated electronics and built-in temperature control to prevent burn out. The plastic roof fan is mounted directly on a Ruck&reg roof socket (DSF series) or a sound-insulated plinth silencer (DSS series). In addition, the roof fan is equipped with rearward curved vanes. The advantages of this are that the fan has a higher efficiency, a lower power consumption and a lower noise level at higher pressure differences. The Ruck&reg DHA EC P series is available with capacities ranging from 710m&sup3/h up to 1370m&sup3/h.

Integrated electronics
Weather-resistant plastic ASA, RAL 7012
EC motor
Integrated isolating switch
Rearward curved radial fan

Brand	Ruck ventilatoren GmbH
Category	Roof fan plastic
GTIN	4061199038515
Manufacturer's item number	165075
Article number	65165075

Specifications

Number of phases	1~
Type of motor control	F
Category code	35
Weight	5.1 kg
IP Motor	IP54
Insulation Class Motor	F
Max. Operating Current	1 A
Max. pressure	820 Pa
Max. Air Volume	710 m³/h
Max. Current Consumption	1 A
Max. power consumption	111 W
Max. Static Efficiency	37.4 %
Max. allowed Medium Temperature	50 °C
Max. allowed Medium Temperature at Rated Current	50 °C
Max. allowed Ambient Temperature	50 °C
Max. allowed Ambient Temperature at Rated Current	50 °C
Max. number of revolutions	3980 1/min
Max. Total Efficiency	37.5 %
Min. Operating Temperature	-30 °C
Motor Protection	TEC
Motor type	EC
Nominal frequency	50 Hz
Rated Speed	3880 1/min
Nominal power consumption	111 W
Nominal voltage	230 V
Nominal current	0.9 A
