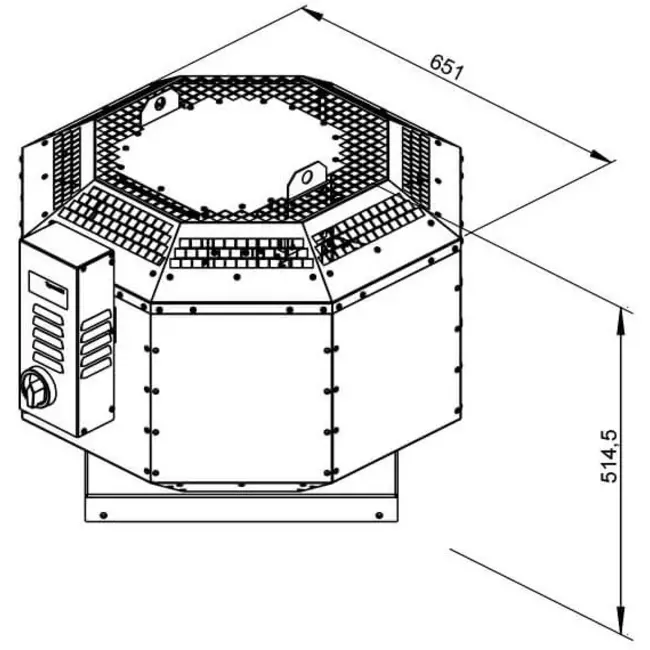

The catering roof fan vertical has built-in temperature control to prevent burn out. The metal roof fan is mounted directly on a Ruck roof socket (DSF series) or a sound-insulated plinth silencer (DSS series). In addition, the roof fan is equipped with rearward curved vanes and blows the air straight up (vertically). The advantages of this are that the fan has a higher efficiency, a lower power consumption and a lower noise level at higher pressure differences. The Ruck DVNI EC series for catering extraction is available with capacities ranging from 2360m3/h up to 7240m3/h.
Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of catering roof fans for kitchen extraction of air up to 120 degrees Celsius. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.
| Brand | Ruck ventilatoren GmbH |
| Category | Insulated Roof extractor fans |
| GTIN | 4061199029490 |
| Manufacturer's item number | 145175 |
| Article number | 65145175 |
| Number of phases | 1~ |
| Type of motor control | 0-10V |
| Category code | 35 |
| Weight | 36.7 kg |
| IP Motor | IP54 |
| Insulation Class Motor | F |
| Max. Operating Current | 3.7 A |
| Max. pressure | 1010 Pa |
| Max. Air Volume | 3230 m³/h |
| Max. Current Consumption | 3.7 A |
| Max. power consumption | 798 W |
| Max. Static Efficiency | 50.6 % |
| Max. allowed Medium Temperature | 120 °C |
| Max. allowed Medium Temperature at Rated Current | 120 °C |
| Max. allowed Ambient Temperature | 40 °C |
| Max. allowed Ambient Temperature at Rated Current | 40 °C |
| Max. number of revolutions | 3000 1/min |
| Max. Total Efficiency | 54.5 % |
| Min. Operating Temperature | -20 °C |
| Motor Protection | TEC |
| Motor type | EC |
| Nominal frequency | 50 Hz |
| Rated Speed | 3000 1/min |
| Nominal power consumption | 798 W |
| Nominal voltage | 230 V |
| Nominal current | 3.6 A |
| Operating temperature | 120° continuous |
