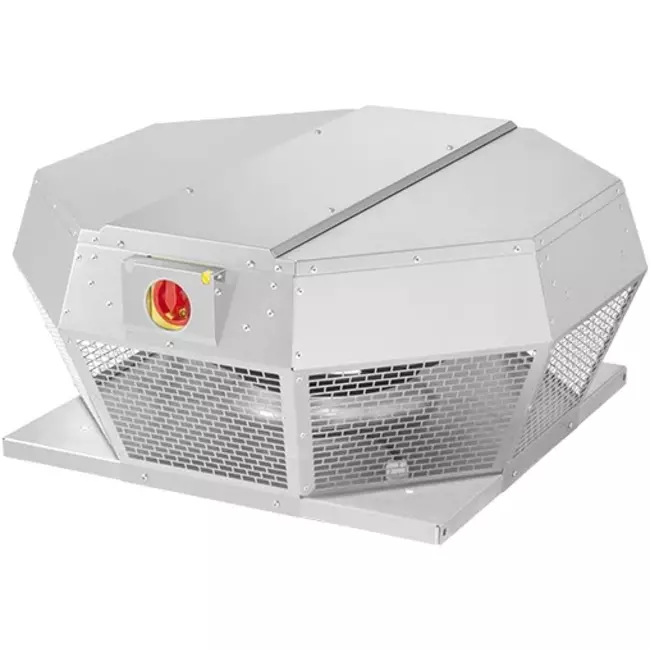

Roof fan horizontal metal - DHA 190 EC O R 01 65165191

Good points

Brand: Ruck fans
EC motor energy efficient
Up to 670 m3/h
Speed controllable

Ruck roof fan metal with EC motor and isolating switch &ndash horizontal

The Ruck roof fan metal (DHA EC P series) with energy-efficient EC motor has a horizontal discharge direction and an isolating switch. This EC motor can be operated with a variable Ruck potentiometer (MTP 20) or by 0-10V control. In addition, demand-controlled ventilation is possible via constant pressure control (CON P1000), to keep the pressure level in your ventilation system constant, or via a CO2 sensor.

The roof fan has an isolating switch and built-in temperature control to prevent burn out. The metal roof fan is mounted directly on a Ruck roof socket (DSF series) or a sound-insulated plinth silencer (DSS series). In addition, the roof fan is equipped with rearward curved vanes. The advantages of this are that the fan has a higher efficiency, a lower power consumption and a lower noise level at higher pressure differences. The Ruck DHA EC P series is available with capacities ranging from 670m3/h up to 16280m3/h.

Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of horizontally blowing metal roof fans with EC motor including isolating switch. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.

Internal electronic temperature control
Integrated electronics
EC motor
Integrated isolating switch
Housing made of aluminium AlMg3
Rearward curved radial fan

Brand	Ruck ventilatoren GmbH
Category	Horizontal Roof extractor fans
GTIN	4061199038591
Manufacturer's item number	165191
Article number	65165191

Specifications

Number of phases	1~
Type of motor control	0-10V
Category code	35
Weight	4.9 kg
IP Motor	IP54
Insulation Class Motor	F
Max. Operating Current	1 A
Max. pressure	780 Pa
Max. Air Volume	670 m³/h
Max. Current Consumption	1 A
Max. power consumption	115 W
Max. Static Efficiency	38.9 %
Max. allowed Medium Temperature	50 °C
Max. allowed Medium Temperature at Rated Current	50 °C
Max. allowed Ambient Temperature	50 °C
Max. allowed Ambient Temperature at Rated Current	50 °C
Max. number of revolutions	4010 1/min
Max. Total Efficiency	39.2 %
Min. Operating Temperature	-30 °C
Motor Protection	TEC
Motor type	EC
Nominal frequency	50 Hz
Rated Speed	3970 1/min
Nominal power consumption	115 W
Nominal voltage	230 V
Nominal current	0.9 A
