Good points

Brand: Ruck fans
Up to 2342 m3/h
F400 smoke fan
200 °C continua

Ruck smoke extractor roof fan vertical for kitchen extraction

The Ruck catering roof fan metal (DVN DF series) has a vertical discharge direction. This roof fan is suitable for extraction of air up to 200 degrees Celsius, making it very suitable for catering extraction. The fan can even handle 400 degrees Celsius temporarily! The smoke fan has a frequency-controlled motor outside the air stream and an integrated grease drain tray with extraction. Attention: the fan must be controlled with a frequency converter.

The smoke roof fan vertical has built-in temperature control to prevent burn out. The metal roof fan is mounted directly on a Ruck roof socket (DSF series) or a sound-insulated plinth silencer (DSS series). In addition, the roof fan is equipped with rearward curved vanes and blows the air straight up (vertically). The advantages of this are that the fan has a higher efficiency, a lower power consumption and a lower noise level at higher pressure differences. The Ruck DVN D F4 series for catering extraction is available with capacities ranging from 1870m3/h up to 14350m3/h.

Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of catering roof fans for kitchen extraction of air up to 120 degrees Celsius. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.

Ventilation unit rotatable
Up to 200°C medium temperature
Grease drain tray with extraction
Motor outside the air stream
With adjustable speed

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Exhaust Roof extractor fans
GTIN	4061199028431
Manufacturer's item number	142175
Article number	65142175

Specifications

Number of phases	3~
Number of poles	2
Type of motor control	F
Category code	35
Weight	28.9 kg
IP Motor	IP55
Insulation Class Motor	F
Max. Operating Current	1.1 A
Max. pressure	1160 Pa
Max. Air Volume	2342 m³/h
Max. Current Consumption	1.1 A
Max. power consumption	663 W
Max. Static Efficiency	41.7 %
Max. allowed Frequency (3˜ motors)	60 Hz
Max. allowed Medium Temperature	200 °C
Max. allowed Medium Temperature at Rated Current	200 °C
Max. allowed Ambient Temperature	50 °C
Max. allowed Ambient Temperature at Rated Current	50 °C
Max. number of revolutions	3510 1/min
Max. Total Efficiency	42.8 %
Min. Operating Temperature	-20 °C
Motor type	3~
Nominal frequency	50 Hz
Rated Speed	2885 1/min
Nominal power consumption	425 W
Nominal voltage	400 V
Nominal current	0.9 A
Direction of blow out	Vertical

Documents

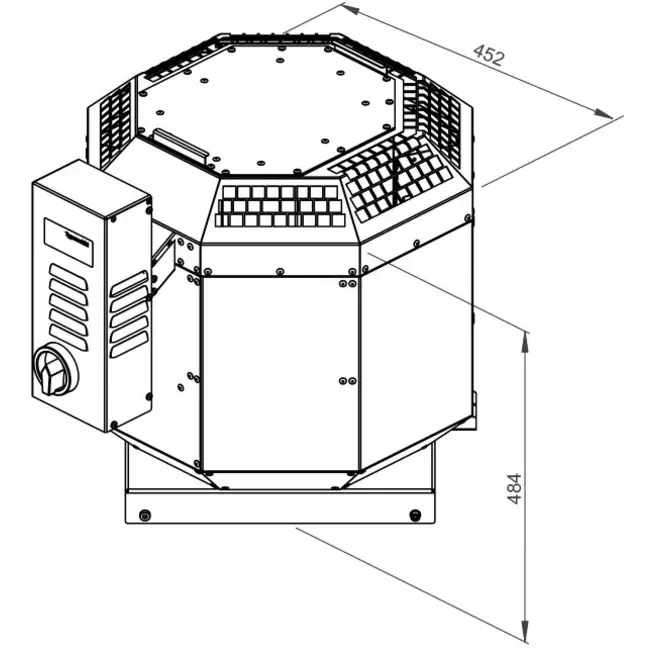

Ruck ® 142175 - Dimensioned drawing

Ruck ® 142175 - EC Declaration of Conformity

Informatieblad

Programmacode frequentieomvormer

Technische tekening (.dwg file)

Technische tekening (.dxf file)

3D-model (.step file)

Bedieningshandleiding

Commissioning report EM EC

Ruck ® 142175 - Call to Tender

Ruck ® 142175 - Certifications

Ruck ® 142175 - Declaration of Incorporation

Ruck ® 142175 - Declaration of performance

Ruck ® 146696 - Programming instructions frequency converter
