Good points

Brand: Ruck fans
Up to 2740 m3/h
F400 smoke fan
200 °C continua

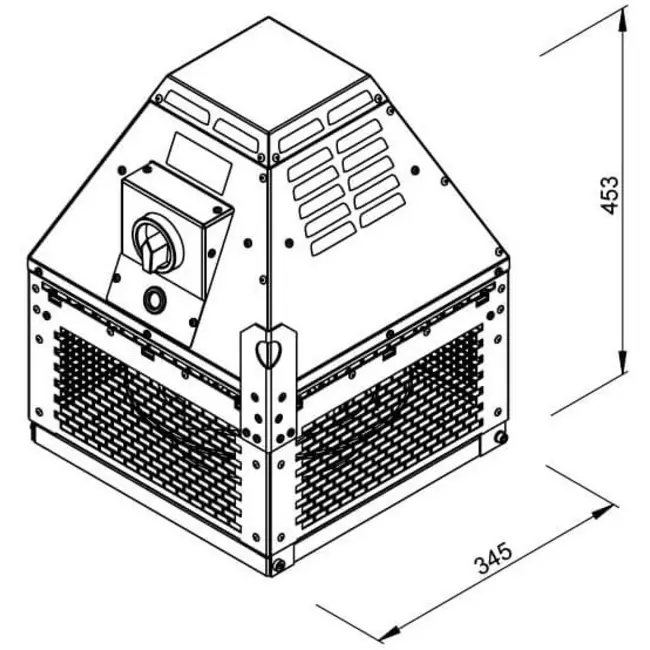

Ruck® smoke extractor roof fan horizontal

The new smoke roof fans from Ruck® are certified to temperature class F400 according to the European test standard DIN EN 12101-3 with certificate 1404-CPR-3027. This means that the DHN D F4 series is suitable for smoke and heat extraction up to 200°C in continuous operation and can briefly dissipate smoke and heat for up to 120 minutes in case of fire at a medium temperature of 400°C. In addition, the fan is very suitable for daily ventilation as required.

The DHN D F4 roof fans can be variably controlled by means of a frequency converter. This frequency converter can be found in the accessories listed below.

The fan is used in cinemas, shopping malls, theatres and industrial buildings. The motor of the fan is located outside the air stream, so the polluted (greasy) air is not discharged via the motor.

Ventilationland.nl is a premium distributor of Ruck® fans and air handling units and therefore only at at Ventilationland do you get a 5-year warranty on all Ruck® fans.

F400 certified
200°C continuous operation
400°C for 120 minutes
Motor outside the air stream
Variable control with frequency converter
Horizontal supply air pattern

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Exhaust Roof extractor fans
GTIN	4061199030533
Manufacturer's item number	150559
Article number	65150559

Specifications

Number of phases	3~
Number of poles	2
Type of motor control	F
Category code	35
Weight	20 kg
IP Motor	IP55
Insulation Class Motor	F
Max. Operating Current	1.2 A
Max. pressure	1100 Pa
Max. Air Volume	2740 m³/h
Max. Current Consumption	1.2 A
Max. power consumption	681 W
Max. Static Efficiency	46.3 %
Max. allowed Frequency (3˜ motors)	60 Hz
Max. allowed Medium Temperature	200 °C
Max. allowed Medium Temperature at Rated Current	200 °C
Max. allowed Ambient Temperature	50 °C
Max. allowed Ambient Temperature at Rated Current	50 °C
Max. number of revolutions	2950 1/min
Max. Total Efficiency	46.9 %
Min. Operating Temperature	-20 °C
Motor type	3~
Nominal frequency	50 Hz
Rated Speed	2890 1/min
Nominal power consumption	436 W
Nominal voltage	400 V
Nominal current	0.9 A
Direction of blow out	Horizontal

Documents

3D model (.step file)

Aanbesteding

Informatieblad

Technische tekening (.dxf file)

Technische tekening (.dwg file)

Tekeningen op schaal

Ruck ® 150549 - Certifications

Ruck ® 150559 - Declaration of performance

Ruck ® 150559 - Declaration of Incorporation

Commissioning report EM EC

Ruck ® 150559 - EC Declaration of Conformity

Ruck ® 150549 - Operating instructions

Ruck ® 146696 - Programming instructions frequency converter
