Good points

Galvanised
No additional connection required

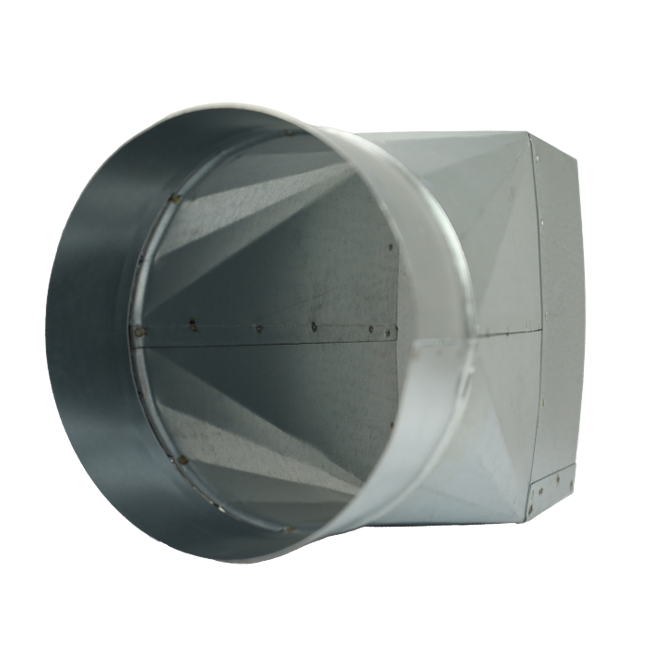

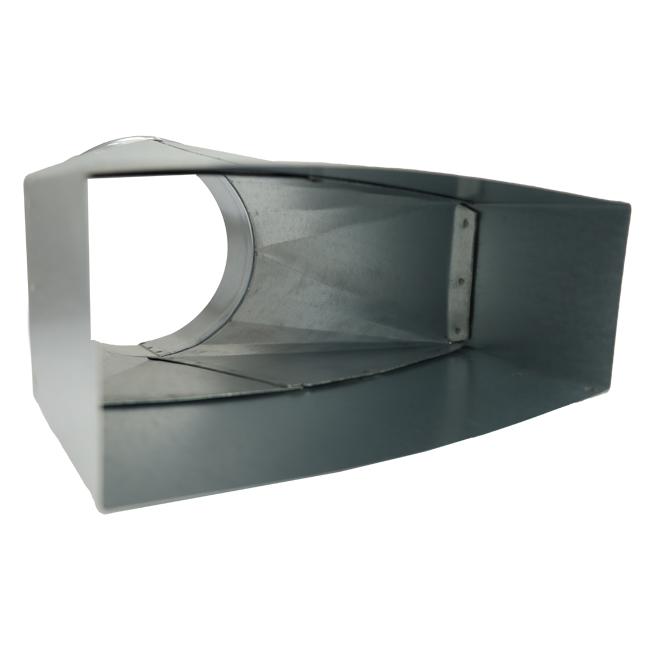

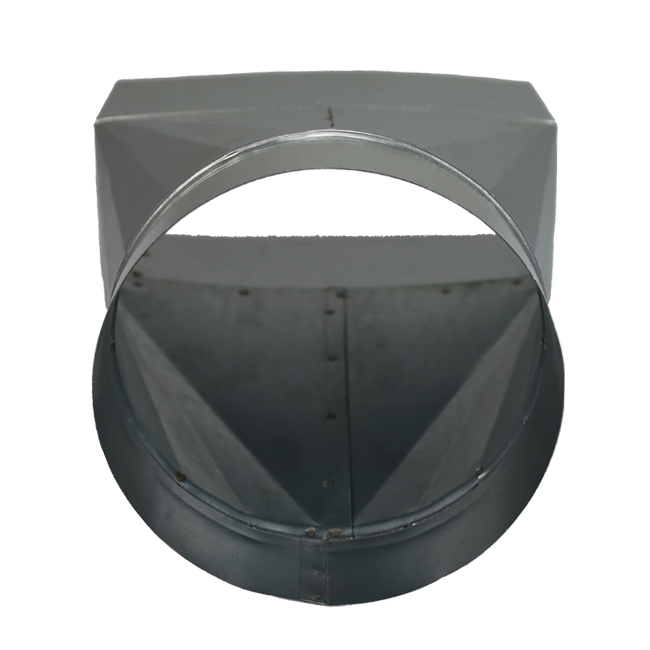

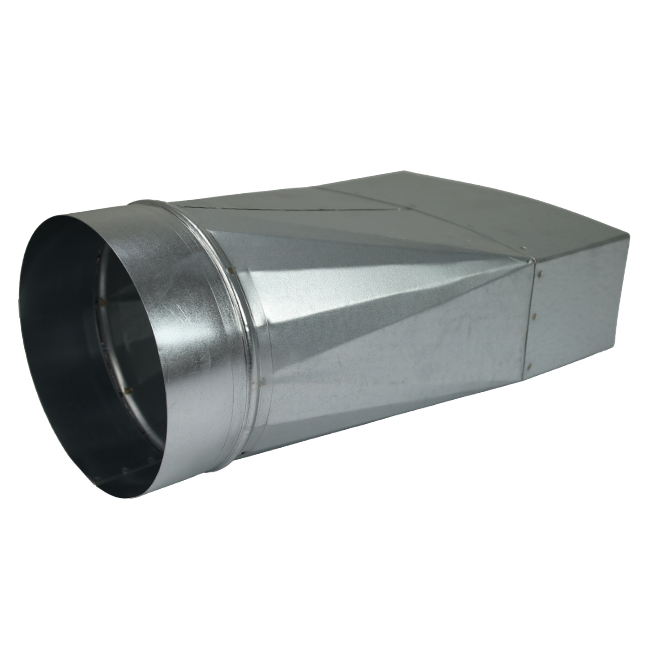

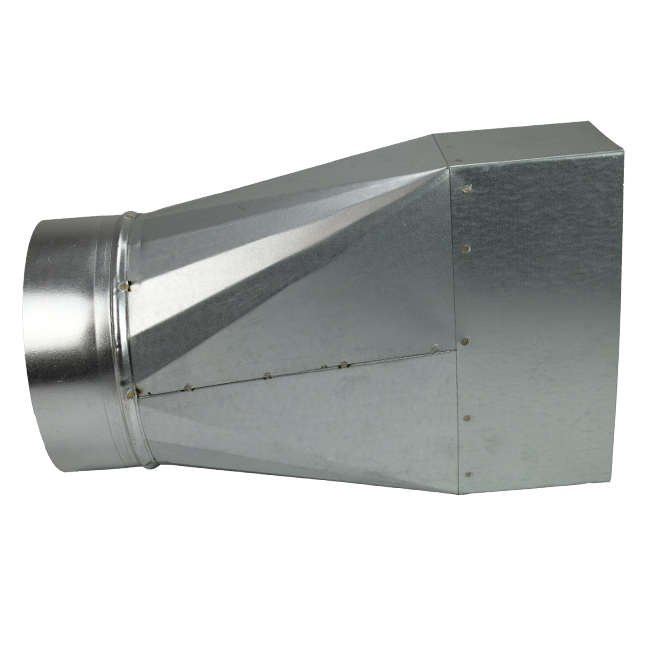

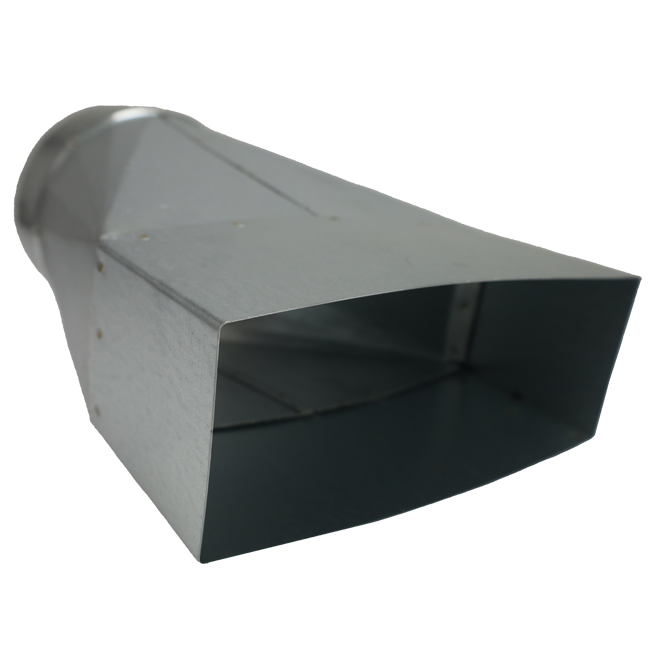

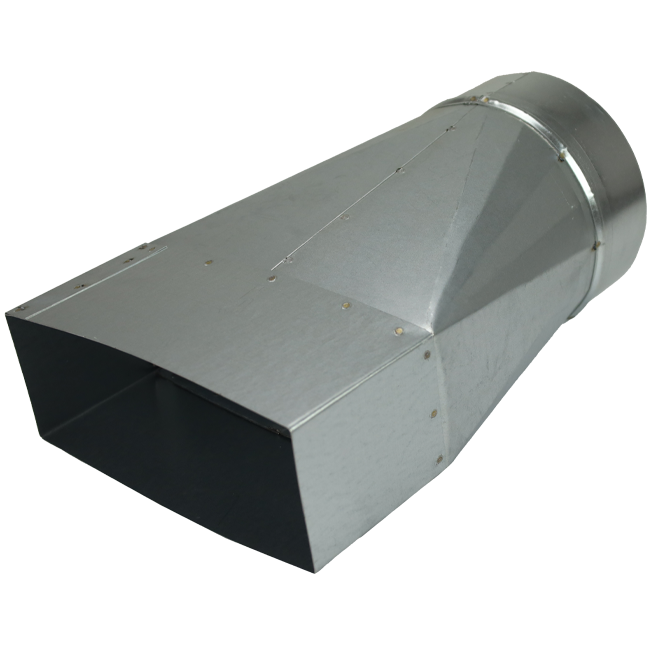

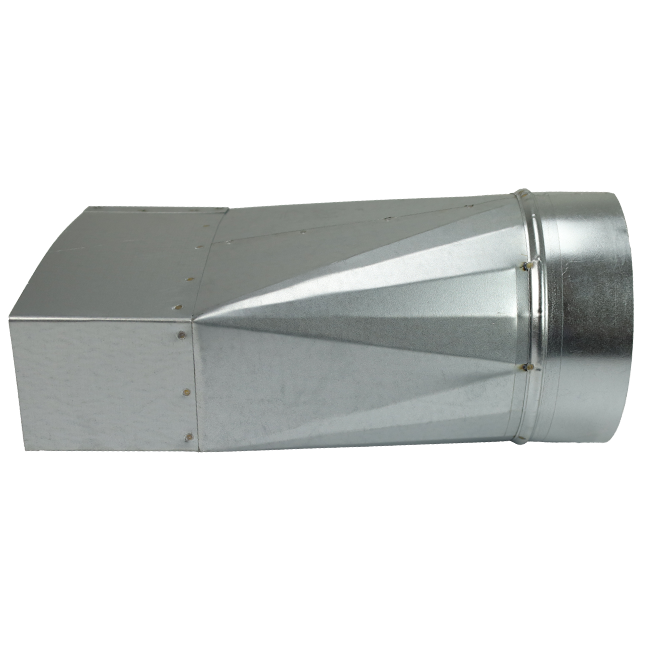

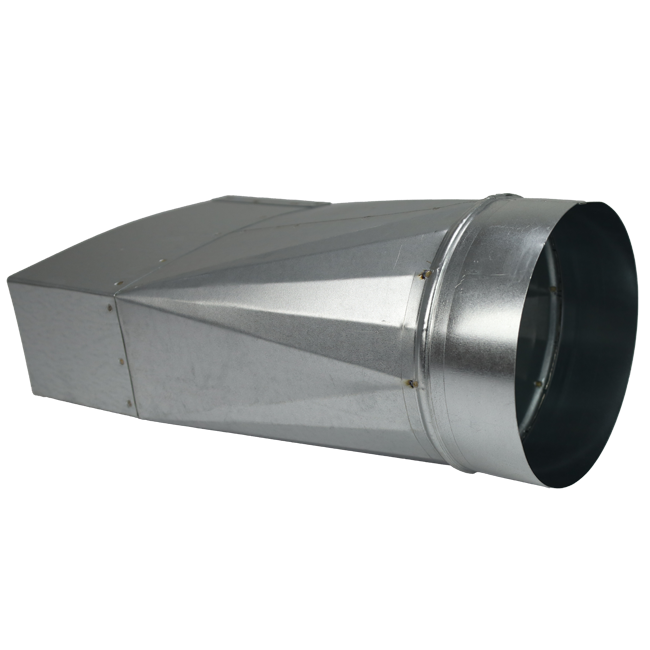

Reducer 220x80 mm

The galvanised reducer with dimensions 220x80 mm has a spigot that falls over a duct, without the need for an additional fittings to connect the reducer to a galvanised flat duct.

The reducer with dimensions 220x80 mm has a spigot that falls over a duct, without the need for an additional fittings to connect the reducer to a galvanised flat duct.

Flat channel ducts are galvanised flat ducts that are integrated into a floor or concrete to allow air distribution or extraction in buildings. These flexible products are designed to be invisible and are mostly used in new construction and renovation projects. Furthermore, a galvanised flat duct can be used in walls, floors and/or ceilings. Combined with a straight galvanised flat duct and various fittings, a ventilation duct can be constructed as required. There are both round and rectangular galvanised flat ducts. The advantages of galvanised flat ducts include: efficient air stream, space saving, noise reduction and design flexibility.

Product specifications

Our collapse air ducts are specially designed for application in residential construction and floors equivalent to residential construction. In addition, these durable products are manufactured from high-quality galvanised steel. This steel is provided with a corrosion-resistant zinc coating, applied according to the reliable Sendzimir process, where a two-sided zinc coating is applied. This guarantees a robust and durable protection against corrosion, in accordance with the NEN-EN 10346 and NEN-EN 10143 standards.

Depending on the dimensions of the air duct, we choose the most suitable sheet thickness to ensure robustness and functionality. For galvanised flat ducts in the dimensions 170x80 mm, a 0.5 mm sheet thickness is used, while the larger dimensions such as 220x80 mm mm and 300x80 mm are executed in a 0.6 mm sheet. The cross connections in rectangular galvanised flat ducts are designed as sliding connections, using a coupling piece. These joints are securely fastened with self-drilling screws. To prevent water or cement from entering the air duct, the connections are finished with PVC tape. Longitudinal joints are executed in a flanged or spot-welded connection. These properties make our galvanised collapsible air ducts a reliable choice for construction projects where durability and quality are paramount.

Brand	Econox
Category	Flat Ducts 220x80mm
GTIN	8719544040619
Manufacturer's item number	10062019
Article number	10062019

Specifications

Category code	179
Model	Uninsulated duct
Material duct	Steel
Material quality duct	Other
Wall thickness duct	0.5 mm
Production method	Longitudinal rebated joint
Pressed	No
Outer surface protection	Sendzimir galvanised
Inner surface protection	Sendzimir galvanised
Outside colour	Zinc
Design form	Centric
Connection type connection 1	Rectangular air duct
Nominal duct width connection 1	222 mm
Nominal duct height connection 1	82 mm
Connection 1	Insert end
Connection type connection 2	Round air duct
Nominal duct diameter, connection 2	160 mm
Connection 2	Insert end
Length	156 mm
Length of connection 1	28 mm
Working length connection 1	128 mm
Length of connection 2	15 mm
Working length connection 2	100 mm
Embeddable in concrete	Yes
Air tightness class according to EN 1751	C
