Good points
- Brand: Ruck
- Pressure Pmax 20 kPa
- Measuring range 50-500 Pa
- Protection class IP 54

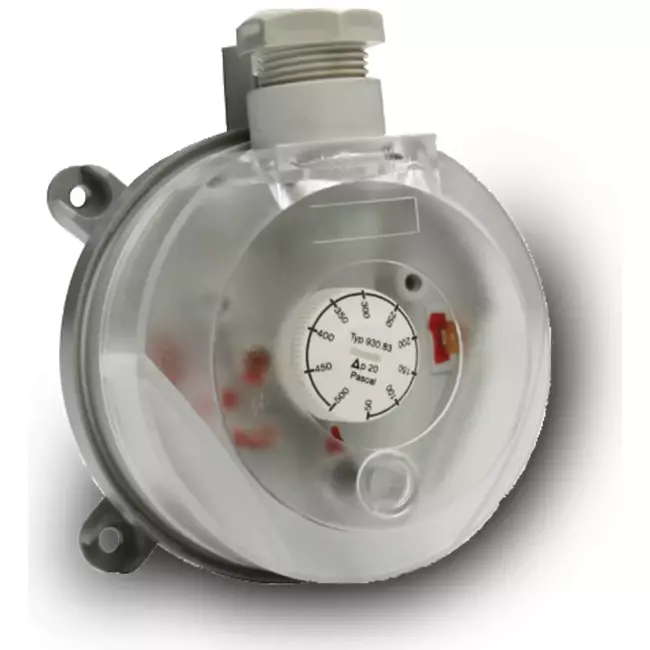

Pressure Sensor Pmax 20 kPa - MAN 01
The MAN 01 is a reliable pressure sensor designed for monitoring air pressure in ventilation and air handling systems. This sensor features an adjustable switching pressure with a maximum range of 20 kPa. The measurement range is between 50 and 500 Pa, making the MAN 01 suitable for a wide variety of applications. Thanks to the variable switching differential setting, the sensor is flexible in its use. The robust plastic housing provides protection in accordance with IP 54 class.
More Information
More technical information about this product can be found in the attachment under the "Documents" tab.
| Brand | Ruck ventilatoren GmbH |
| Category | Ventilator controllers en accessoires |
| GTIN | 4061199041317 |
| Manufacturer's item number | MAN01 |
| Article number | 65168753 |
Specifications
| Category code | 121 |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | Yes |
| Degree of protection (IP) | IP54 |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| Suitable for duct mounting | No |
| Scope of application | Room |
| With mounting material | No |
| Suitable for air | Yes |
| Suitable for tube mounting | No |
| Suitable for liquids | No |
| With housing | Yes |
| Suitable for gases | Yes |
| Active temperature measurement | No |
| Average temperature measuring | No |
| Measurement of CO2 | No |
| With display | No |
| Bluetooth | No |
| Housing width | 65 mm |
| Enthalpy measurement | No |
| Housing colour | Grey |
| Measurement of relative air humidity | No |
| Particulate matter measurement (PM) | No |
| Measurement of absolute air humidity | No |
| Measurement of VOC | No |
| Measurement of dewpoint | No |
| Passive temperature measurement | No |
| Wi-Fi-compatible | No |
| Housing height | 65 mm |
| Type of power supply | Power cord |
| Housing depth | 57.5 mm |
| Wireless | No |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 85 °C |
