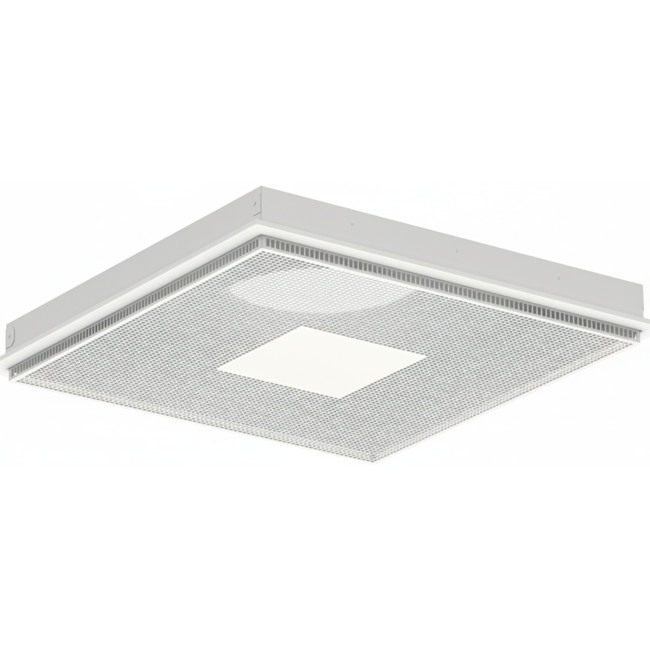

The Econox ceiling grille, made from galvanized steel with a perforated front and an air connection featuring a rubber seal, is specifically designed for the supply and exhaust of air in commercial indoor spaces such as offices, schools and retail stores. The grille is equipped with internal baffles allowing easy adjustment of the airflow direction. The standard setting of 4 discharge directions can be limited to 1, 2 or 3 directions as required.

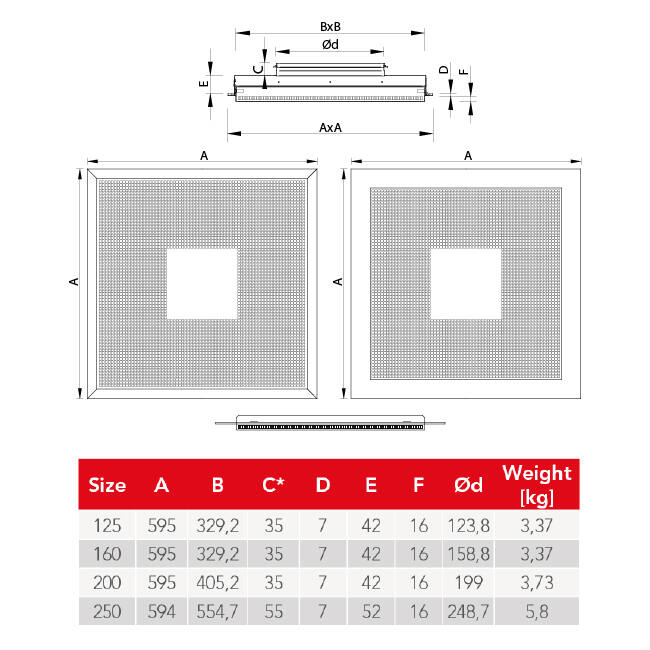

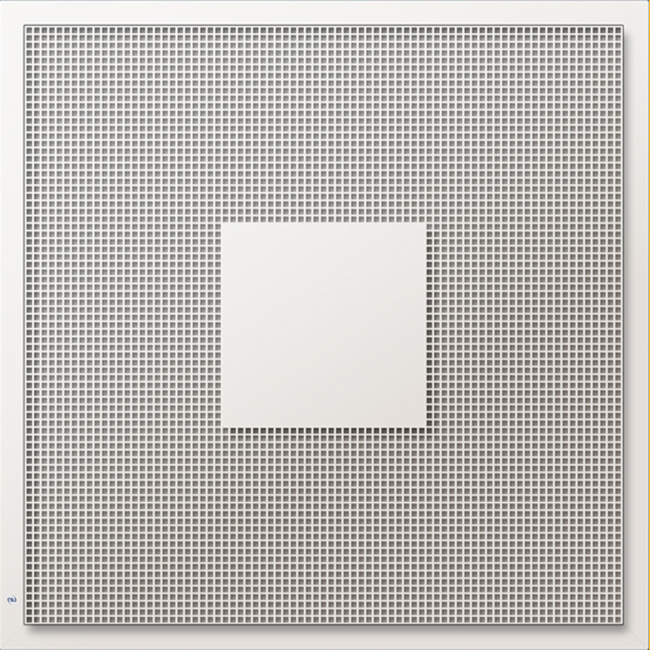

The front panel is made of galvanized steel. The frame is aluminium and is powder-coated like the front panel in RAL 9010, 9016 or 9005. The perforated ceiling grille measures 595 by 595 mm and can be connected to a ventilation duct with a diameter of 125 mm.
The ceiling grille is installed in a standard 595x595 mm suspended ceiling by simply laying the grille into the T-grid. The round connection with a diameter of 125 mm at the rear can be directly connected to the air duct or a flexible hose. For an insulated and secure connection, pair this grille with the Econox EPS insulated plenum 590x590 mm with a diameter of 125 mm. This plenum fits precisely to the grille, simplifies installation above the ceiling and minimises heat loss and condensation.
| Brand | Econox |
| Category | Perforated adjustable ceiling grille for outlet air |
| GTIN | 8719544330574 |
| Manufacturer's item number | 79000349 |
| Article number | 79000349 |
| Category code | 59 |
| Material | Aluminium |
| Without plenum | Yes |
| Nominal duct diameter connection | 125 mm |
| Modular ceiling | 600x600 mm |
| Connection | Duct end |
| Shape of plenum | Rectangular |
| Front shape | Rectangular |
| Front length | 595 mm |
| Front width | 595 mm |
| Front diameter | 595 mm |
| Built-in height | 55 mm |
| Colour | White |
| RAL-number | 9010 |
| Air pattern | Four-sided |
| Air pattern, adjustable | No |
| Plenum internally insulated | Yes |
| With volume control | No |
| With filter cloth | No |
