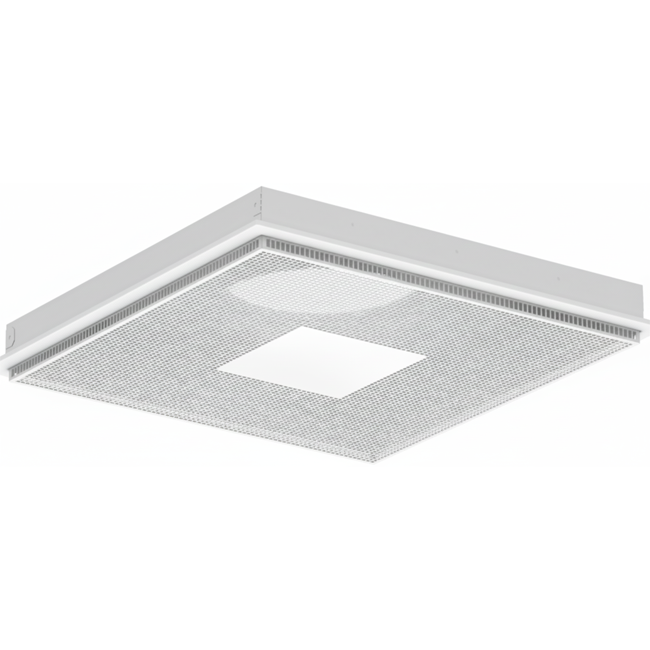

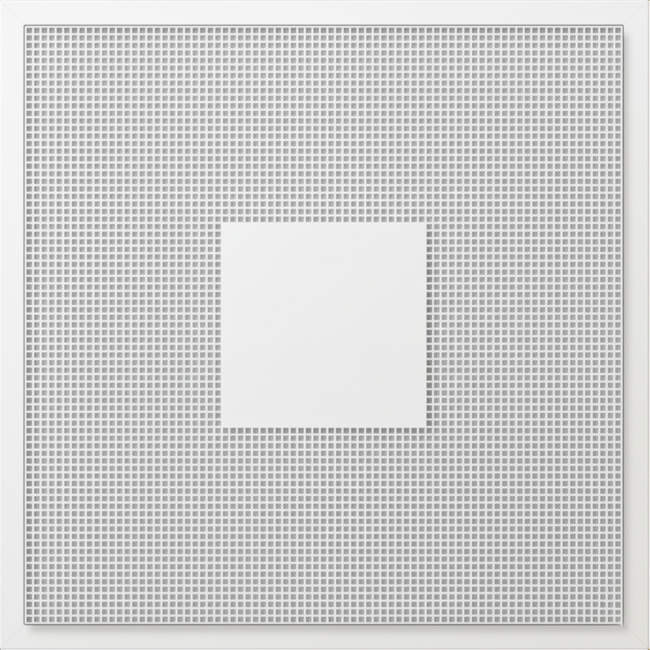

Perforated ceiling diffuser for supply and exhaust 595x595 mm - 250 mm - RAL 9016

Brand: Econox

-25%

Complete your order

Acoustically insulated plenum for ceiling diffuser - 250 to 200 mm

148.22

Flexible silencer non-woven with connection diameter: 250 mm length 1000mm

45.94

Tie wrap Ø 60mm - 270mm - 10 pieces

8.76

Stainless steel hose clamp 60mm diameter 270mm - PCSS60-270

2.27

RRP 184.02

138.01 -25%

You'll save 46.01

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For supply and removal
4 blowing directions
Low-noise air distribution

Perforated Ceiling Grille for Supply and Return Air 595x595 mm – 250 mm – RAL 9016

The Econox ceiling grille, made from galvanized steel, features a perforated front and an air connection with a rubber seal. It is specifically designed for supply and return air in commercial indoor spaces such as offices, schools, and retail stores. The ceiling grille is equipped with internal baffles that allow easy adjustment of the airflow direction. The standard setting of 4-way discharge can be limited to 1, 2, or 3 directions as needed.

Practical Information

The front panel is constructed from galvanized steel. The frame is made of aluminium and, like the front panel, is powder coated in RAL 9010, 9016, or 9005. The perforated ceiling grille measures 595 by 595 mm and can be connected to a ventilation duct with a diameter of 250 mm.

Installation and Applications

The ceiling grille is installed in a standard 595x595 mm suspended ceiling by simply placing the grille into the T-bar grid. The round connection with a diameter of 250 mm on the rear side can be directly attached to the air duct or a flexible ducting hose.

Brand	Econox
Category	Perforated adjustable ceiling grille for outlet air
GTIN	8719544330642
Manufacturer's item number	79000356
Article number	79000356

Specifications

Category code	59
Material	Aluminium
Without plenum	Yes
Nominal duct diameter connection	250 mm
Modular ceiling	600x600 mm
Connection	Duct end
Shape of plenum	Rectangular
Front shape	Rectangular
Front length	595 mm
Front width	595 mm
Front diameter	595 mm
Built-in height	55 mm
Colour	White
RAL-number	9016
Air pattern	Four-sided
Air pattern, adjustable	No
Plenum internally insulated	Yes
With volume control	No
With filter cloth	No
