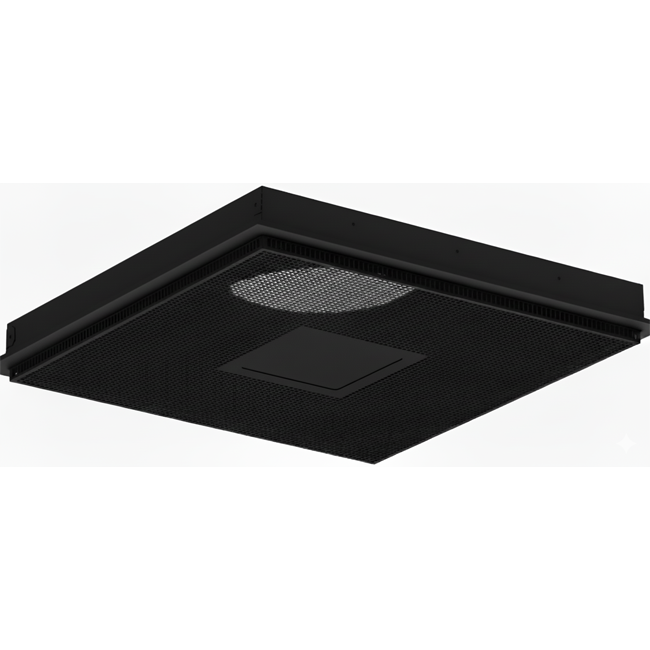

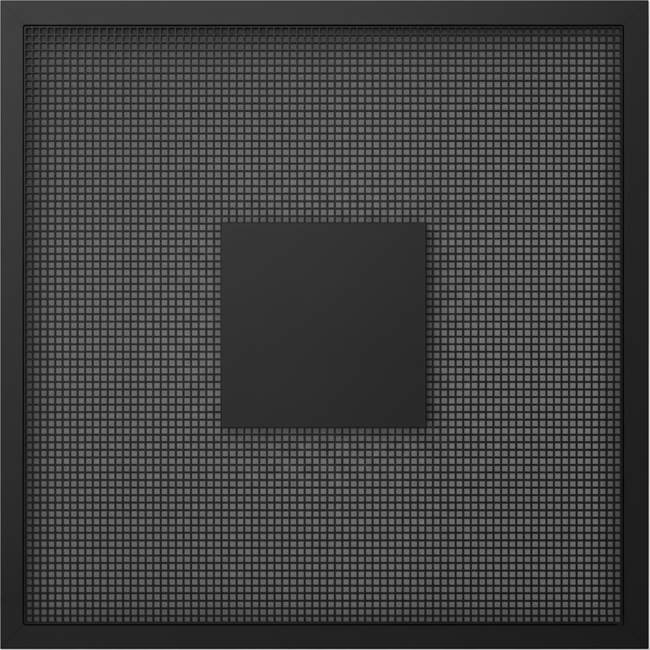

Perforated ceiling diffuser for supply and exhaust 595x595 mm - 160 mm - RAL 9005

Brand: Econox

-25%

Complete your order

Akoestisch geïsoleerd plenum voor plafondrooster – 160 naar 125 mm

107.24

Flexible silencer non-woven with connection diameter 160 mm length 1000mm

25.87

Tie wrap Ø 60mm - 270mm - 10 pieces

8.76

Stainless steel hose clamp 60mm diameter 165mm - PCSS60-165

1.44

RRP 138.19

103.64 -25%

You'll save 34.55

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For supply and removal
4 blowing directions
Low-noise air distribution

Perforated ceiling grille for supply and exhaust 595x595 mm – 160 mm – RAL 9005

The Econox ceiling grille, made of galvanized steel, features a perforated front and an air connection with a rubber seal. It is specifically designed for the supply and exhaust of air in commercial indoor spaces such as offices, schools, and retail stores. The ceiling grille is equipped with internal baffles that allow easy adjustment of the airflow direction. The default setting of 4-blade airflow can be limited to 1, 2, or 3 directions as required.

Technical details

The front panel is manufactured from galvanized steel. The frame is aluminium and, like the front panel, powder coated in RAL 9010, 9016, or 9005. The perforated ceiling grille measures 595 by 595 mm and can be connected to a ventilation duct with a diameter of 160 mm.

Installation and applications

The ceiling grille is installed in a standard 595x595 mm suspended ceiling by simply placing the grille into the T-grid. The round connection with a diameter of 160 mm at the rear is directly connected to the air duct or a flexible hose. Additionally, it is possible to connect this ceiling grille to the Econox acoustically insulated plenum to achieve even air distribution and effective sound attenuation.

Brand	Econox
Category	Perforated adjustable ceiling grille for outlet air
GTIN	8719544330666
Manufacturer's item number	79000358
Article number	79000358

Specifications

Category code	59
Material	Aluminium
Without plenum	Yes
Nominal duct diameter connection	160 mm
Modular ceiling	600x600 mm
Connection	Duct end
Shape of plenum	Rectangular
Front shape	Rectangular
Front length	595 mm
Front width	595 mm
Front diameter	595 mm
Built-in height	55 mm
Colour	Other
RAL-number	9005
Air pattern	Four-sided
Air pattern, adjustable	No
Plenum internally insulated	Yes
With volume control	No
With filter cloth	No
